Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-70HFR40MDIODE GP REV 400V 70A DO203AB |
6,513 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
|
VS-70HFR60MDIODE GP REV 600V 70A DO203AB |
3,433 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
|
VS-40HFL60S02MDIODE GEN PURP 600V 40A DO203AB |
3,627 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
JANTXV1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
5,834 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
1N5829RDIODE SCHOTTKY REV 20V 25A DO4 |
8,291 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 20 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
1N5830RDIODE SCHOTTKY REV 25V 25A DO4 |
5,951 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 25 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
1N5831RDIODE SCHOTTKY REV 35V 25A DO4 |
2,885 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 35 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
1N6096RDIODE SCHOTTKY REV 40V 25A DO4 |
2,573 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
JANTX1N6625US/TRDIODE GEN PURP 1.1KV 1A D-5A |
2,209 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 1100 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTX1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
9,328 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|

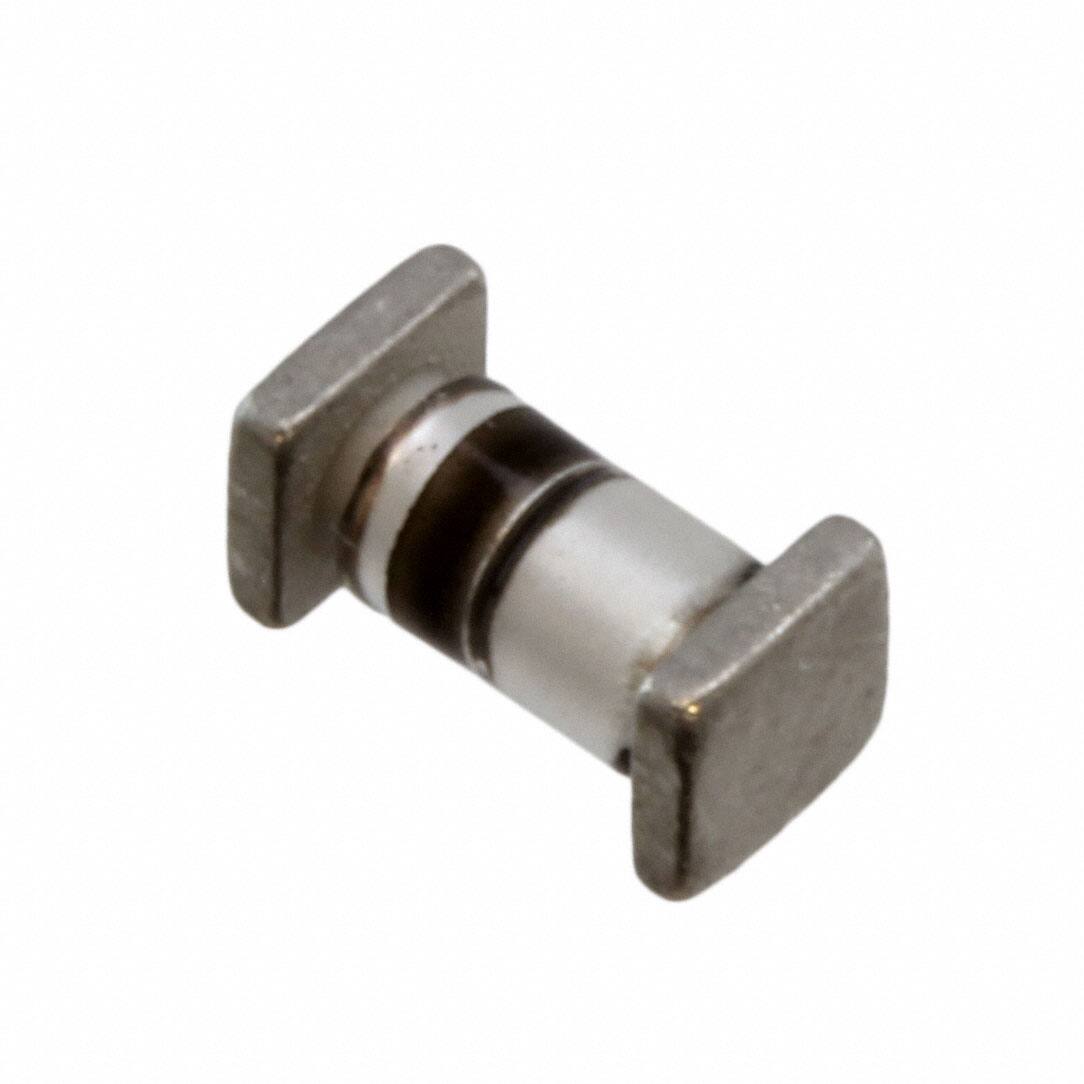

JAN1N6620USDIODE GEN PURP 220V 2A D-5A |
6,011 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | Standard | 220 V | 2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6620UDIODE GEN PURP 200V 1.2A D-5A |
8,071 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N5190/TRDIODE GEN PURP 600V 3A |
4,324 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
|
|
JANTX1N5189/TRDIODE GEN PURP 500V 3A B |
3,409 |
|
- |
- | Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B | -65°C ~ 175°C |
|
|
JAN1N6625US/TRUFR,FRR |
2,071 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6624US/TRUFR,FRR |
6,128 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 900 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 900 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
JANTXV1N6640DIODE GEN PURP 50V 300MA D-5D |
6,427 |
|
Datasheet |
- | SQ-MELF, D | Bulk | Discontinued at Digi-Key | Standard | 50 V | 300mA | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 90 µA @ 50 V | - | Military | MIL-PRF-19500/578 & /609 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
JANTXV1N3595AUSDIODE GP 125V 150MA DO213AA |
3,752 |
|
- |
- | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 2 nA @ 125 V | - | Military | MIL-PRF-19500/241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N6621US/TRDIODE GEN PURP 75V 200MA D-5A |
5,479 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 2.8pF @ 1.5V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
JAN1N6626US/TRDIODE GEN PURP 220V 1.75A D-5B |
6,141 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
