Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N6622US/TRDIODE GEN PURP 660V 1.2A D-5A |
4,267 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 660 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 660 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6627US/TRDIODE GEN PURP 440V 1.75A D-5B |
8,914 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
JAN1N6626U/TRDIODE GP 220V 1.75A SQ-MELF |
5,771 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6624U/TRDIODE GP 990V 1A A SQ-MELF |
8,112 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 990 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
5,246 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6622U/TRDIODE GP 660V 1.2A A SQ-MELF |
7,895 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 660 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 500 nA @ 660 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6621U/TRDIODE GP 440V 1.2A A SQ-MELF |
5,737 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 440 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 500 nA @ 440 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JAN1N6627U/TRDIODE GP REV 400V 4A E-MELF |
3,002 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 400 V | 4A | - | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 400 V | - | Military | MIL-PRF-19500/590 | Surface Mount | E-MELF | - |
|
|
JANTXV1N5415USDIODE GEN PURP 50V 3A D-5B |
3,801 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Discontinued at Digi-Key | Standard | 50 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 50 V | - | Military | MIL-PRF-19500/411 | Surface Mount | D-5B | -65°C ~ 175°C |
|
JANTXV1N5552US/TRDIODE GEN PURP 600V 3A D-5B |
7,998 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|
1N6627US/TRDIODE GEN PURP 440V 1.75A A-MELF |
2,587 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
1N6627U/TRDIODE GEN PURP 400V 4A D-5B |
2,943 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 400 V | 4A | 1.5 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 400 V | - | - | - | Surface Mount | D-5B | - |
|
|
1N6537DIODE RECT ULT FAST REC A-PKG |
4,952 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-71HFLR100S05DIODE GP REV 1KV 70A DO203AB |
5,935 |
|
- |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
|
JAN1N6074DIODE GEN PURP 100V 3A A-PAK |
4,816 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 100 V | 3A | 2.04 V @ 9.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 100 V | - | Military | MIL-PRF-19500/503 | Through Hole | A, Axial | -65°C ~ 155°C |
|
|
JAN1N6075DIODE GEN PURP 150V 3A A-PAK |
4,276 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 150 V | 3A | 2.04 V @ 9.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 150 V | - | Military | MIL-PRF-19500/503 | Through Hole | A, Axial | -65°C ~ 155°C |
|
LSIC2SD120D20DIODE SIC 1.2KV 54.5A TO263L |
4,933 |
|
Datasheet |
Gen2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 54.5A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 1142pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-2L | -55°C ~ 175°C |
|

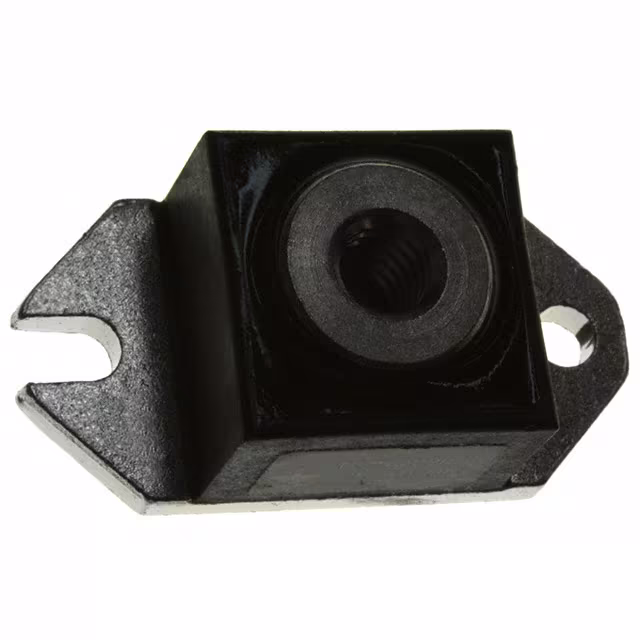

123NQ080DIODE SCHOTTKY 80V 120A D-67 |
9,838 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 120A | 910 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | 2650pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
JAN1N6620U/TRDIODE GEN PURP 200V 1.2A D-5A |
8,393 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JAN1N6620US/TRDIODE GEN PURP 220V 2A D-5A |
2,451 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 220 V | 2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
