Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N3612/TRDIODE GEN PURP 400V 1A |
6,600 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 400 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|
VS-150EBU02DIODE GP 200V 150A POWIRTAB |
8,774 |
|
Datasheet |
FRED Pt® | PowerTab™, PowIRtab™ | Bulk | Obsolete | Standard | 200 V | 150A | 1.13 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | PowIRtab™ | -55°C ~ 175°C |
|
JANTXV1N4148-1DIODE GEN PURP 75V 200MA DO35 |
6,068 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | - | Military | MIL-PRF-19500/116 | Through Hole | DO-35 | -65°C ~ 200°C |
|
|
JAN1N4247/TRDIODE GEN PURP 600V 1A |
2,020 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 600 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
GB05MPS17-247DIODE SIL CARB 1.7KV 25A TO247-2 |
5,897 |
|
Datasheet |
SiC Schottky MPS™ | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1700 V | 25A | 1.8 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 6 µA @ 1700 V | 334pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
JAN1N5622DIODE GEN PURP 1KV 1A AXIAL |
5,427 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
JAN1N6642USDIODE GEN PURP 75V 300MA D-5D |
7,444 |
|
Datasheet |
- | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 40pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
1N5552/TRDIODE GEN PURP 600V 3A B AXIAL |
2,938 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5805DIODE GEN PURP 125V 1A AXIAL |
6,361 |
|
Datasheet |
- | A, Axial | Bulk | Discontinued at Digi-Key | Standard | 125 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 125°C |
|
DSA9-12FDIODE AVAL 1.2KV 11A DO203AA |
4,990 |
|
- |
- | DO-203AA, DO-4, Stud | Box | Obsolete | Avalanche | 1200 V | 11A | 1.4 V @ 36 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA | -40°C ~ 180°C |
|
|
APT100D60BGDIODE GEN PURP 600V 100A TO247 |
3,867 |
|
Datasheet |
- | TO-247-2 | Bulk | Active | Standard | 600 V | 100A | 2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 250 µA @ 600 V | - | - | - | Through Hole | TO-247 | -55°C ~ 150°C |
|
|
GC15MPS12-247DIODE SIL CARB 1.2KV 75A TO247-2 |
2,366 |
|
Datasheet |
SiC Schottky MPS™ | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 75A | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 14 µA @ 1200 V | 1089pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|

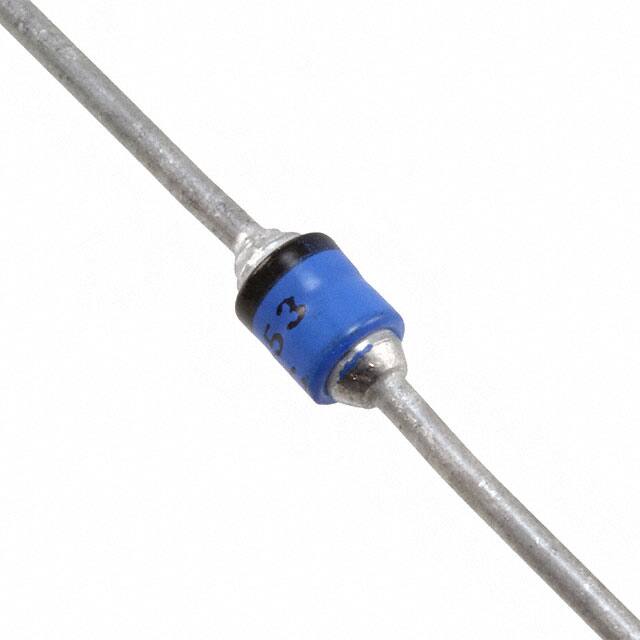

1N5551DIODE GEN PURP 400V 3A AXIAL |
6,230 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JAN1N5711-1/TRDIODE SCHOTTKY 70V 33MA DO35 |
6,050 |
|
- |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 70 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 70 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5803E3DIODE GEN PURP 80V 1A AXIAL |
9,564 |
|
- |
- | Axial | Bulk | Active | Standard | 80 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 75 V | 25pF @ 10V, 1MHz | - | - | Through Hole | Axial | -65°C ~ 175°C |
|
|
1N5622/TRDIODE GEN PURP 1KV 1A |
3,669 |
|
Datasheet |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
VS-95PF140DIODE GEN PURP 1.4KV 95A DO203AB |
3,652 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1400 V | 95A | 1.4 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
STPSC806G-TRDIODE SIL CARBIDE 600V 8A D2PAK |
5,255 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 600 V | 8A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 600 V | 450pF @ 0V, 1MHz | - | - | Surface Mount | D2PAK | -40°C ~ 175°C |
|
CDLL1A80DIODE SCHOTTKY 80V 1A DO213AB |
5,320 |
|
Datasheet |
- | DO-213AB, MELF | Bulk | Active | Schottky | 80 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-213AB | - |
|
JANTX1N5620/TRDIODE GEN PURP 800V 1A |
8,837 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
