Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N648DIODE GEN PURP 500V DO35 |
2,386 |
|
- |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 500 V | - | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | DO-204AH (DO-35) | - |
|
VS-75EPU12LHN3DIODE GEN PURP 1.2KV 75A TO247AD |
4,375 |
|
Datasheet |
FRED Pt® | TO-247-2 | Tube | Active | Standard | 1200 V | 75A | 2.55 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 265 ns | 420 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD | -55°C ~ 175°C |
|
1N4938ZENER DIODE |
4,719 |
|
- |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 175 V | 25A | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | - | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
VS-6F60DIODE GEN PURP 600V 6A DO203AA |
8,470 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 6A | 1.1 V @ 19 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
DS9-08FDIODE GEN PURP 800V 11A DO203AA |
2,193 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Box | Obsolete | Standard | 800 V | 11A | 1.4 V @ 36 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AA | -40°C ~ 180°C |
|
GP3D010A065BDIODE SIL CARB 650V 10A TO247-2 |
7,555 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.6 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 25 µA @ 650 V | 419pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
IRD3901DIODE GEN PURP 200V 20A DO203AB |
5,196 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 20A | 1.65 V @ 62.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 350 ns | 50 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
IRD3901RDIODE GEN PURP 200V 20A DO203AB |
9,317 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 20A | 1.65 V @ 62.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 350 ns | 50 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
WNSC2D2012006QWNSC2D201200/SOD59A/STANDARD MAR |
4,999 |
|
Datasheet |
- | TO-220-2 | Bulk | Active | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.65 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 950pF @ 1V, 1MHz | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
DSEP30-04ADIODE GEN PURP 400V 30A TO247AD |
3,043 |
|
Datasheet |
HiPerFRED™ | TO-247-2 | Tube | Obsolete | Standard | 400 V | 30A | 1.46 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 250 µA @ 400 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
V15P22HM3/HDIODE SCHOTTKY 200V 3.3A TO277A |
6,219 |
|
Datasheet |
- | TO-277, 3-PowerDFN | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 200 V | 3.3A | 910 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 200 V | 835pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) | -40°C ~ 175°C |
|
20ETF12SDIODE GEN PURP 1.2KV 20A TO263AB |
3,966 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 1200 V | 20A | 1.31 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 100 µA @ 1200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|
|
UX-F5BHIGH VOLTAGE RECTIFIER DIODE (AX |
7,174 |
|
Datasheet |
- | Axial | Bulk | Active | Standard | 8000 V | 350mA | 14 V @ 350 mA | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 10 µA @ 8000 V | - | - | - | Through Hole | Axial | 120°C |
|

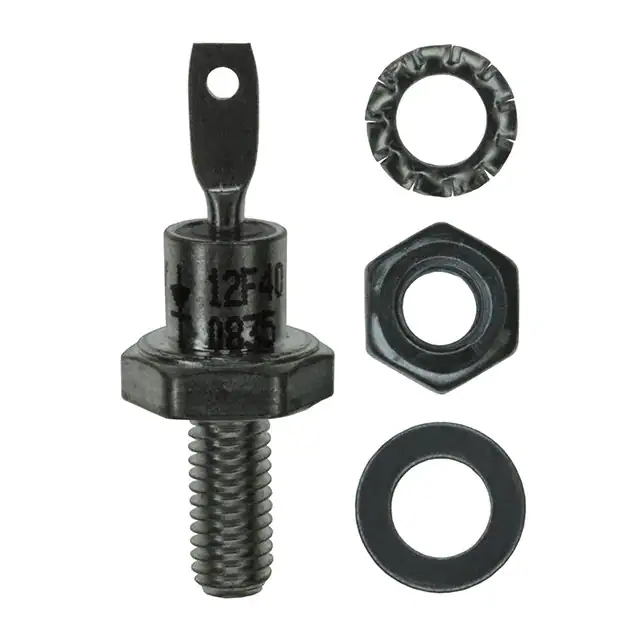

VS-12F40DIODE GEN PURP 400V 12A DO203AA |
5,973 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

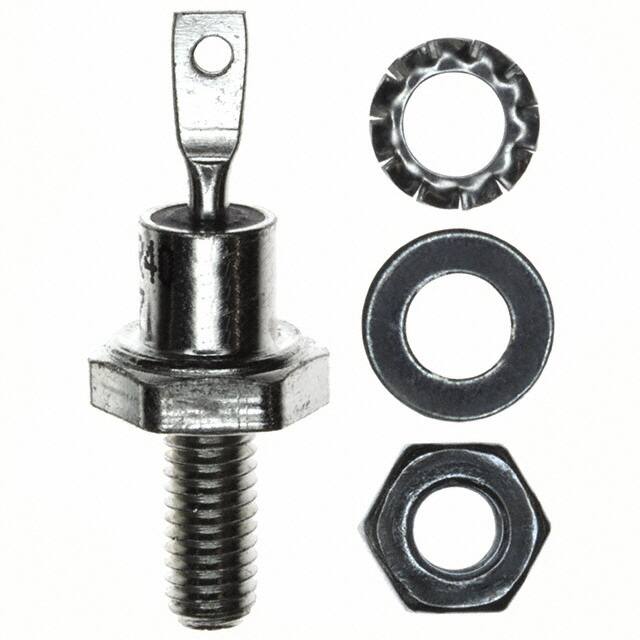

VS-12FR40DIODE GEN PURP 400V 12A DO203AA |
6,341 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
DNA30E2200PZ-TUBDIODE GEN PURP 2.2KV 30A TO263HV |
3,788 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 2200 V | 30A | 1.26 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 2200 V | 7pF @ 700V, 1MHz | - | - | Surface Mount | TO-263HV | -55°C ~ 175°C |
|
|
1N3595-1E3DIODE GEN PURP 125V 150MA DO35 |
5,916 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 125 V | 150mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N3595-1/TRDIODE GEN PURP 125V 150MA DO35 |
8,217 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 125 V | 150mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
1N3595A-1DIODE GEN PURP 125V 150MA DO35 |
5,338 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 2 nA @ 125 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
GE08MPS06ADIODE SIL CARB 650V 15A TO220-2 |
3 |
|
Datasheet |
SiC Schottky MPS™ | TO-220-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 650 V | 15A | - | No Recovery Time > 500mA (Io) | - | - | 373pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
