Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GD2X25MPS17NDIODE MOD SIC 1700V 50A SOT-227 |
184 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 50A (DC) | 1.8 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|

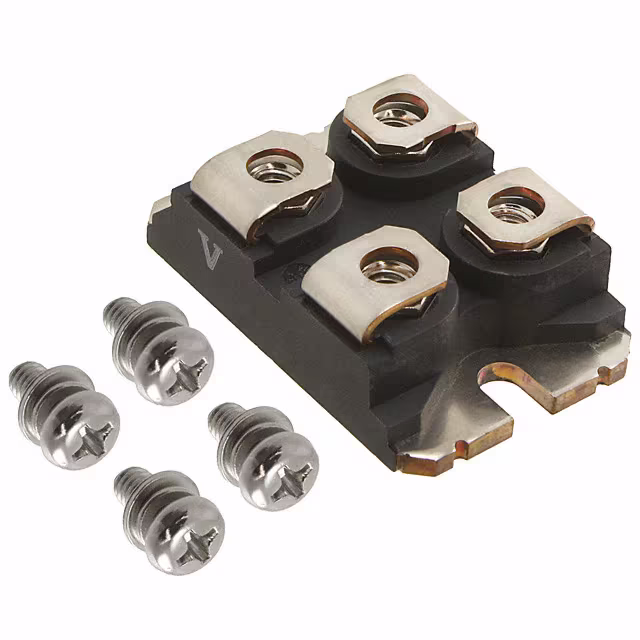

VS-HFA220FA120DIODE MOD GP 1200V 110A SOT-227 |
1,128 |
|
Datasheet |
HEXFRED® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 110A (DC) | 3.6 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 58 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
MBR2X120A045DIODE MOD SCHOTT 45V 120A SOT227 |
308 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 45 V | 120A | 700 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
MDD172-16N1DIODE MODULE GP 1600V 190A Y4-M6 |
299 |
|
Datasheet |
- | Y4-M6 | Box | Active | 1 Pair Series Connection | Standard | 1600 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
MSC2X51SDA120JDIODE MOD SIC 1200V 50A SOT227 |
441 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 50A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
GD2X150MPS06NDIODE MOD SIC 650V 150A SOT-227 |
418 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 650 V | 150A (DC) | 1.8 V @ 150 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 650 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MEK350-02DADIODE MODULE GP 200V 356A Y4-M6 |
374 |
|
Datasheet |
- | Y4-M6 | Bulk | Active | 1 Pair Common Cathode | Standard | 200 V | 356A | 1.07 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 3 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
MD16200S-DKM2MMDIODE MODULE GP 1600V 200A S3 |
140 |
|
Datasheet |
- | S-3 Module | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 200A | 1.5 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | S3 |
|
GHXS100B120S-D3DIODE MOD SIC 1200V 198A SOT-227 |
50 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 198A (DC) | 1.7 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
PD100KN16DIODE MOD GP 1600V 100A MOD |
49 |
|
Datasheet |
- | Module | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.54 V @ 320 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
GD2X75MPS17NDIODE MOD SIC 1700V 115A SOT-227 |
214 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 115A (DC) | - | No Recovery Time > 500mA (Io) | - | - | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
APTDF400KK120GDIODE MODULE GP 1200V 470A SP6 |
64 |
|
Datasheet |
- | LP4 | Bulk | Active | 1 Pair Common Cathode | Standard | 1200 V | 470A | 3 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 250 µA @ 1200 V | - | - | - | Chassis Mount | SP6 |
|
|
DD171N16KHPSA2DIODE MODULE GEN PURP 1600V 171A |
26 |
|
Datasheet |
DD171N | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 171A | 1.26 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | 150°C | - | - | Chassis Mount | - |
|
M50100THC1600DIODE MOD GP 1600V 100A MOD |
213 |
|
Datasheet |
- | Module | Bulk | Active | 3 Common Cathode | Standard | 1600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|

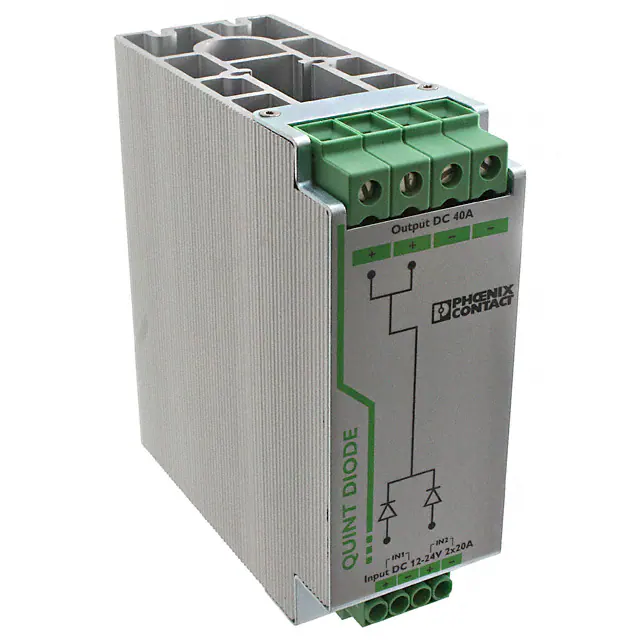

2320157GEN PURP 24V 20A MODULE |
124 |
|
Datasheet |
- | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 24 V | 20A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|
BAT54C,215DIODE ARR SCHOTTKY 30V TO-236AB |
1,152,779 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
BAS70-04,215DIODE ARR SCHOT 70V 70MA TO236AB |
691,583 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 70 V | 150°C (Max) | - | - | Surface Mount | TO-236AB |
|
|
PMBD7000,215DIODE ARR GP 100V 215MA TO-236AB |
652,205 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 100 V | 215mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 500 nA @ 100 V | 150°C (Max) | - | - | Surface Mount | TO-236AB |
|
|
BAV99,235DIODE ARR GP 100V 215MA TO-236AB |
573,486 |
|
Datasheet |
BAV99 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 100 V | 215mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 500 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | TO-236AB |
|
BAV99-TPDIODE ARRAY GP 70V 200MA SOT23 |
401,845 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 70 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23 |
