Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSI2X55-12A DIODE MOD GP 1200V 56A SOT227B IXYS	291	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	56A	1.2 V @ 60 A	Standard Recovery >500ns, > 200mA (Io)	-	300 µA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X31-12B DIODE MOD GP 1200V 28A SOT227B IXYS	626	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	30A	2.54 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	750 µA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B

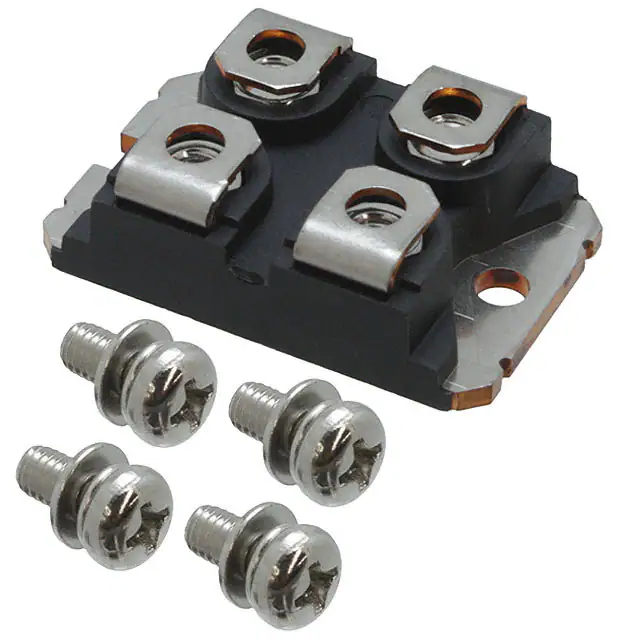

VS-UFB280FA20 DIODE MODULE GP 200V 175A SOT227 Vishay General Semiconductor - Diodes Division	169	RFQ	Datasheet	FRED Pt®	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	200 V	175A (DC)	1.1 V @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	45 ns	50 µA @ 200 V	-	-	-	Chassis Mount	SOT-227
STPS200170TV1Y DIODE MOD SCHOT 170V 100A ISOTOP STMicroelectronics	395	RFQ	Datasheet	Q	ISOTOP	Tube	Active	2 Independent	Schottky	170 V	100A	850 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 170 V	-55°C ~ 150°C	Automotive	AEC-Q101	Chassis Mount	ISOTOP®
STPS24045TV DIODE MOD SCHOTT 45V 120A ISOTOP STMicroelectronics	119	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Schottky	45 V	120A	670 mV @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
STTH12012TV1 DIODE MODULE GP 1200V 60A ISOTOP STMicroelectronics	138	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	1200 V	60A	2.25 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	125 ns	30 µA @ 1200 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®

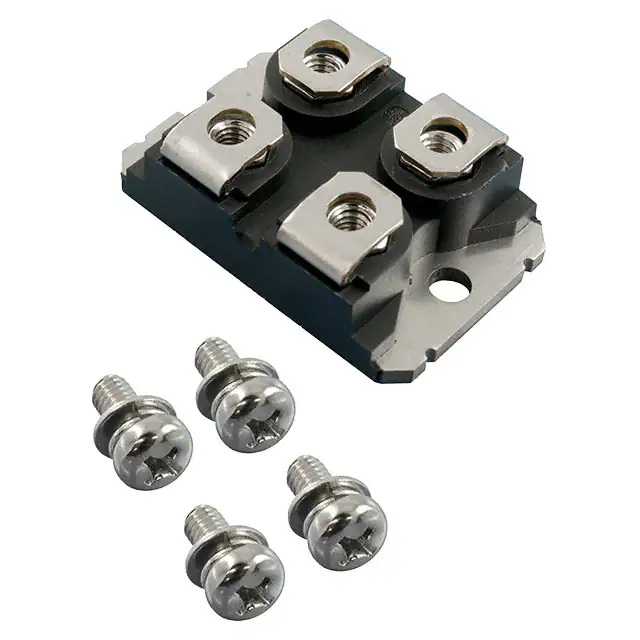

VS-QA250FA20 DIODE MOD SCHOT 200V 250A SOT227 Vishay General Semiconductor - Diodes Division	1,236	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	200 V	250A	1.2 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	54 ns	90 µA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227
SK2S160-100 DIODE MOD SCHOTT 100V 80A SOT227 SMC Diode Solutions	295	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	100 V	80A	800 mV @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 100 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
APT2X30D120J DIODE MODULE GP 1200V 30A ISOTOP Microchip Technology	257	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	30A	2.5 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	370 ns	250 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
APT2X101S20J DIODE MOD SCHOT 200V 120A ISOTOP Microchip Technology	185	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Schottky	200 V	120A	950 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	70 ns	2 mA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	ISOTOP®
STTH200L06TV1 DIODE MODULE GP 600V 120A ISOTOP STMicroelectronics	241	RFQ	Datasheet	-	ISOTOP	Tube	Active	2 Independent	Standard	600 V	120A	1.55 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	120 ns	100 µA @ 600 V	150°C (Max)	-	-	Chassis Mount	ISOTOP®
SK2S200-150 DIODE MOD SCHOT 150V 100A SOT227 SMC Diode Solutions	368	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	150 V	100A	1.09 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227
MEK95-06DA DIODE MODULE GP 600V 95A TO240AA IXYS	167	RFQ	Datasheet	-	TO-240AA	Bulk	Active	1 Pair Common Cathode	Standard	600 V	95A	1.55 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	300 ns	2 mA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
DSEI2X61-12B DIODE MOD GP 1200V 52A SOT227B IXYS	246	RFQ	Datasheet	FRED	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	52A	2.5 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	2.2 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X61-10B DIODE MOD GP 1000V 60A SOT227B IXYS	700	RFQ	Datasheet	FRED	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1000 V	60A	2.3 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	3 mA @ 1000 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X121-02A DIODE MOD GP 200V 123A SOT227B IXYS	1,431	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	200 V	123A	1.1 V @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	1 mA @ 200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DH2X61-18A DIODE MOD GP 1800V 60A SOT227B IXYS	639	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1800 V	60A	2.01 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	230 ns	200 µA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
MDD95-16N1B DIODE MOD GP 1600V 120A TO-240AA IXYS	112	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1600 V	120A	1.43 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	15 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA

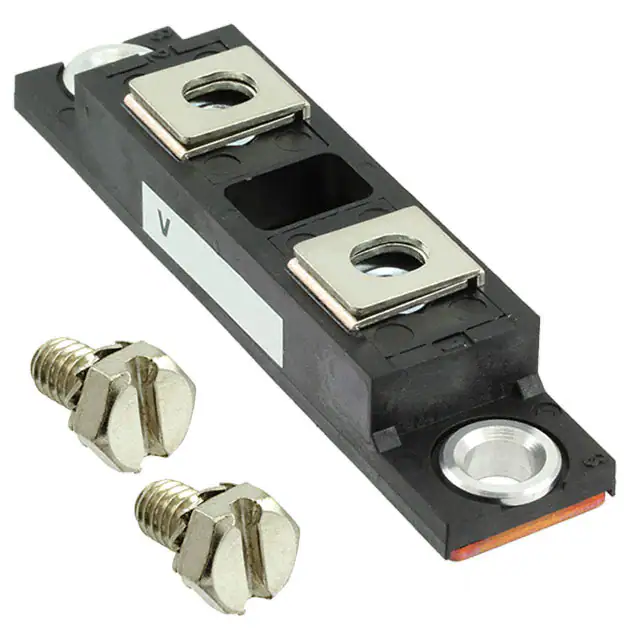

VS-401CNQ045PBF DIODE MOD SCHOT 45V 400A TO244AB Vishay General Semiconductor - Diodes Division	279	RFQ	Datasheet	-	TO-244AB	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	400A	780 mV @ 400 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-	-	-	Chassis Mount	TO-244AB
GD2X50MPS12N DIODE MOD SIC 1200V 76A SOT-227 GeneSiC Semiconductor	221	RFQ	Datasheet	SiC Schottky MPS™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	76A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	15 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227

Total 15087 Record«Prev 1 2 3 4 5 678 9 10...755 Next»

Diode Arrays Electronic Components

Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
