Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRT150140DDIODE MOD GP 1400V 150A 3TOWER |
8,780 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150160DDIODE MOD GP 1600V 150A 3TOWER |
9,200 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBRT20035RDIODE MOD SCHOTT 35V 100A 3TOWER |
9,660 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT20040RDIODE MOD SCHOTT 40V 100A 3TOWER |
2,701 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

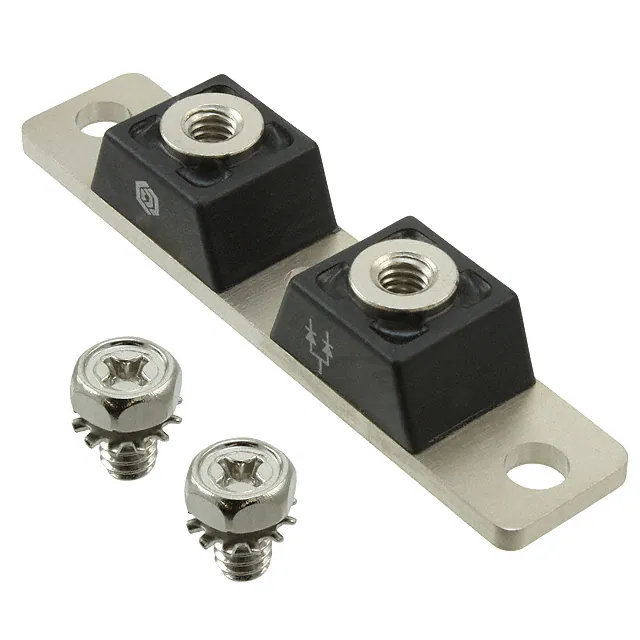

MBR40035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
6,525 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT20035DIODE MOD SCHOTT 35V 100A 3TOWER |
6,521 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBR40035CTDIODE MOD SCHOTT 35V 200A 2TOWER |
3,033 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR40040CTDIODE MOD SCHOTT 40V 200A 2TOWER |
9,604 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 200A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR40040CTRDIODE MOD SCHOTT 40V 200A 2TOWER |
4,918 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 200A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR40020CTDIODE MOD SCHOTT 20V 200A 2TOWER |
9,780 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40020CTRDIODE MOD SCHOTT 20V 200A 2TOWER |
8,144 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40030CTDIODE MOD SCHOTT 30V 200A 2TOWER |
9,383 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40030CTRDIODE MOD SCHOTT 30V 200A 2TOWER |
4,484 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40045CTDIODE MOD SCHOTT 45V 200A 2TOWER |
8,271 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40045CTRDIODE MOD SCHOTT 45V 200A 2TOWER |
9,905 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40060CTDIODE MOD SCHOTT 60V 200A 2TOWER |
6,712 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 200A | 800 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40060CTRDIODE MOD SCHOTT 60V 200A 2TOWER |
9,845 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 200A | 800 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40080CTDIODE MOD SCHOTT 80V 200A 2TOWER |
3,089 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR40080CTRDIODE MOD SCHOTT 80V 200A 2TOWER |
7,909 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 80 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT200100RDIODE MOD SCHOT 100V 100A 3TOWER |
4,282 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 100 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
