Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR30040CTDIODE MOD SCHOTT 40V 150A 2TOWER |
2,203 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 150A | 650 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30040CTRDIODE MOD SCHOTT 40V 150A 2TOWER |
9,505 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 150A | 650 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR30045CTDIODE MOD SCHOTT 45V 150A 2TOWER |
6,915 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 150A | 650 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30045CTRDIODE MOD SCHOTT 45V 150A 2TOWER |
4,063 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 150A | 650 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30060CTDIODE MOD SCHOTT 60V 150A 2TOWER |
5,569 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 150A | 750 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30060CTRDIODE MOD SCHOTT 60V 150A 2TOWER |
5,659 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 150A | 750 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30080CTDIODE MOD SCHOTT 80V 150A 2TOWER |
9,587 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 150A | 840 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR30080CTRDIODE MOD SCHOTT 80V 150A 2TOWER |
4,958 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 80 V | 150A | 840 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR300150CTDIODE MOD SCHOT 150V 150A 2TOWER |
2,028 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -40°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR300150CTRDIODE MOD SCHOT 150V 150A 2TOWER |
9,268 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 150 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -40°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR300200CTDIODE MOD SCHOT 200V 150A 2TOWER |
6,256 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 150A | 920 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR300200CTRDIODE MOD SCHOT 200V 150A 2TOWER |
9,479 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 200 V | 150A | 920 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
2952211DIODE MODULE GP 1000V MODULE |
2,625 |
|
Datasheet |
- | Module | Bulk | Active | 14 Common Anode | Standard | 1000 V | - | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

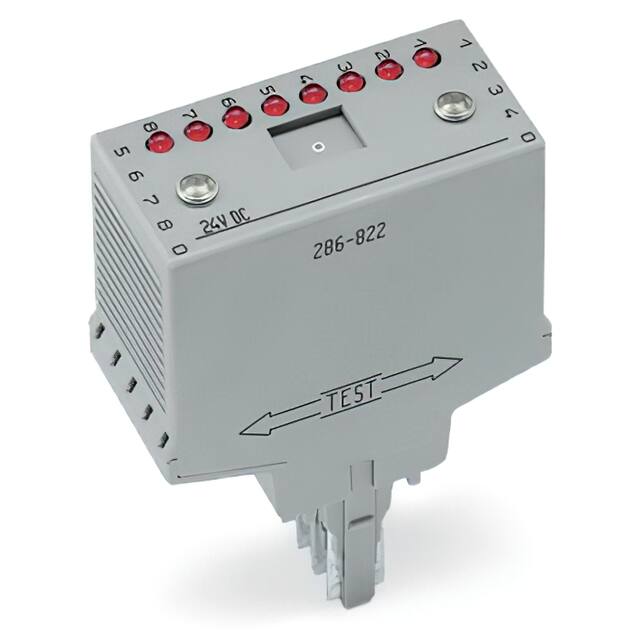

286-822DIODE MODULE GP 4000V 5.1MA |
6,690 |
|
Datasheet |
- | Module | Box | Active | 1 Pair Common Cathode | Standard | 4000 V | 5.1mA | - | Small Signal =< 200mA (Io), Any Speed | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|
MURT20005DIODE MODULE GP 50V 100A 3TOWER |
7,573 |
|
Datasheet |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MURT20005RDIODE MODULE GP 50V 100A 3TOWER |
7,799 |
|
Datasheet |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
VS-VSMD400CW60DIODE MOD GP 600V 200A TO-244AB |
6,275 |
|
Datasheet |
- | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 200A | 1.31 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 600 V | -40°C ~ 175°C | - | - | Chassis Mount | TO-244AB |
|
|
M50100CC1200DIODE MOD GP 1200V 100A MOD |
5,977 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
M5060THA1600DIODE MODULE GP 600V 60A MODULE |
9,060 |
|
Datasheet |
- | Module | Bulk | Active | 1 Pair Common Cathode | Standard | 600 V | 60A | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
M5060CC1600DIODE MODULE GP 1600V 60A MODULE |
9,371 |
|
Datasheet |
- | Module | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 60A (DC) | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
