Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8168SHZBE3Linear IC's |
0 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
SB-1B-DC-8-BHIGH AMPS STARTER-NO BLACK BOOT |
5 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 60A (DC) | - | 12 V | Round, Button, Rubber Cap | No Marking | Black | - | - | Solder Turret | - | - | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
8531TZGE2SWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
8125SD8ABESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
9433YASWITCH PUSH SPST-NO 1A 30V |
0 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
1222C6PUSHBUTTON SWITCH 1200 |
0 |
|
- |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 250 V | 24 V | Round, Plunger | - | Red | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
1223C6PUSHBUTTON SWITCH 1200 |
0 |
|
- |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 250 V | 24 V | Round, Plunger | - | Red | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
TP11LTWBESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
2-1825098-0SWITCH PUSH SPST-NO 1A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.83mm Dia | -30°C ~ 65°C |
|

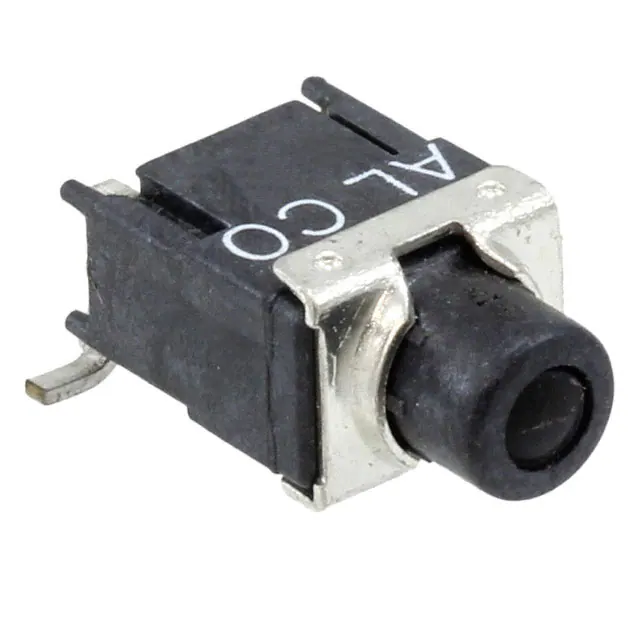

TSPDF11CGSRA0SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
TP11LT9AVBESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
FHNFBBGNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNFBBYNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNFBBRNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNFBBONSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Orange | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNFBBBNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
EB2061P/ULIGHT TOUCH MINIATURE PUSHBUTTON |
0 |
|
Datasheet |
EB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
8125J81ZBE12SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
8125J81ZBE32SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
EHPBSMBBPKGEH MOM PSHBTN SW SPD |
12 |
|
- |
EH | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | - | - | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
