Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B15BA5W13SWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
SB4011NCMG-2GSWITCH PUSH SPST-NC 0.4VA 28V |
0 |
|
Datasheet |
SB40 | Bulk | Discontinued at Digi-Key | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
8R1022B-N-ZSWITCH PUSH SPDT 0.06A 30V |
0 |
|
Datasheet |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 60mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|
|
EH12NLSSBGSWITCH PB SPST-NO 2A 48V |
0 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
8125SD9A2BESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
8125SDAV2BESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TPB11FGRA0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
8168SHCBE2SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
3SM-SP8-M6-GET/RSWITCH |
0 |
|
- |
3S | Bulk | Active | Surface Mount, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | Black | - | - | Gull Wing | - | - | - | -30°C ~ 85°C |
|
|
3SM-SP8-S6-GET/RSWITCH |
0 |
|
- |
3S | Bulk | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | Black | - | - | Gull Wing | - | - | - | -30°C ~ 85°C |
|

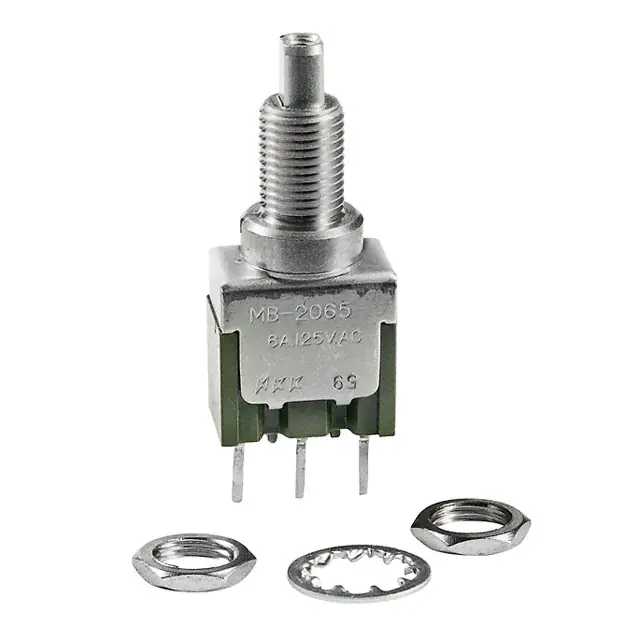

MB2065SS1W03SWITCH PUSHBUTTON SPDT 6A 125V |
2 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

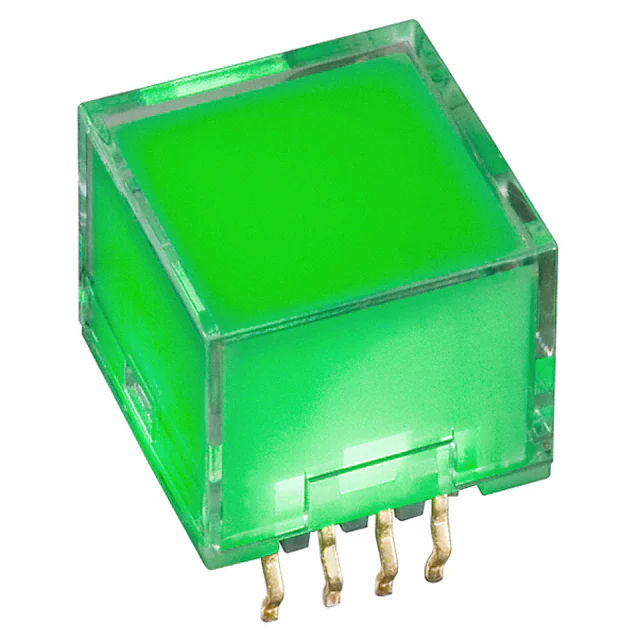

NP0115HG03LF-JFSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
SCB15P10B-5CASWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
SW19STL335SWITCH PB SOLDER TAG ALT ACT PWR |
0 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STL323SWITCH PB SOLDER TAG ALT ACT PWR |
0 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STL325SWITCH PB SOLDER TAG ALT ACT PWR |
0 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STL333SWITCH PB SOLDER TAG ALT ACT PWR |
0 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 24 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
|
TP33W088550PUSHBUTTON SWITCH SMT TP PCB |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
A2147PUSHBUTTON SWITCH 300 |
0 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard | SPST | Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
3MA-SP2-PE-BF-M1QESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | - | - | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
