Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULP12OAM1RPMCL1REDWHTSWITCH PB SPDT 0.1A 28V |
0 |
|
Datasheet |
ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 28 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Red/White | 1.95, 3.3 VDC | Solder Lug | - | - | - | -40°C ~ 85°C |
|
|
1825399-2SWITCH PUSHBUTTON SPDT 3A 115V |
0 |
|
Datasheet |
MPS | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 115 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -15°C ~ 70°C |
|
EP12SD1AQESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
TP32W003500SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP32W003550SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

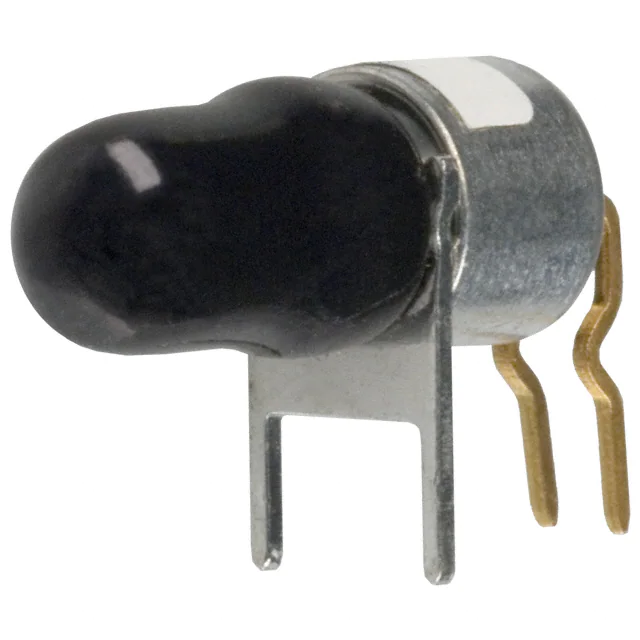

39-503 BLKSWITCH PUSH SPST-NO 0.15A 28V |
0 |
|
Datasheet |
39 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
RP8300B2M1CEBLKBLKRGSwitches |
0 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | - | Black | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
1825173-1SWITCH PUSH SPST-NC 50MA 48V |
0 |
|
Datasheet |
APA | Bulk | Active | Through Hole | Standard | SPST-NC | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
8534SCGE2SWITCH PUSH SPST-NC 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8551TCQE2SWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
TP12SHZBESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
EP12SD1WBESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
3.13.002.502/0000SWITCH PUSH SPST-NO 0.1A 42V |
0 |
|
- |
RS76 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Plunger for Cap | No Marking | White | - | - | PC Pin | IP40 | - | - | -25°C ~ 70°C |
|
|
TP32Y003050SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP33W00850036SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | Power Symbol | Red | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
9533NCDK4SWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Front Panel Sealing | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
|
3MN-SP-7-P2-B10-M6QESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
8168S2H9AV2PE2PUSHBUTTON SWITCHES PUSHBUTTON |
0 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
SCB15P15B-2CSWITCH PUSHBUTTON SPDT 15A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
RP8400B2M1CENICWHTWHTSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | White | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
