Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H8303ABBG7PUSH BUTTON SWITCH LIT 12V GREEN |
0 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 12A (AC) | 250 V | - | Rectangular, Button | No Marking | Green | Incandescent, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
|
|
PV5S240S1SWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

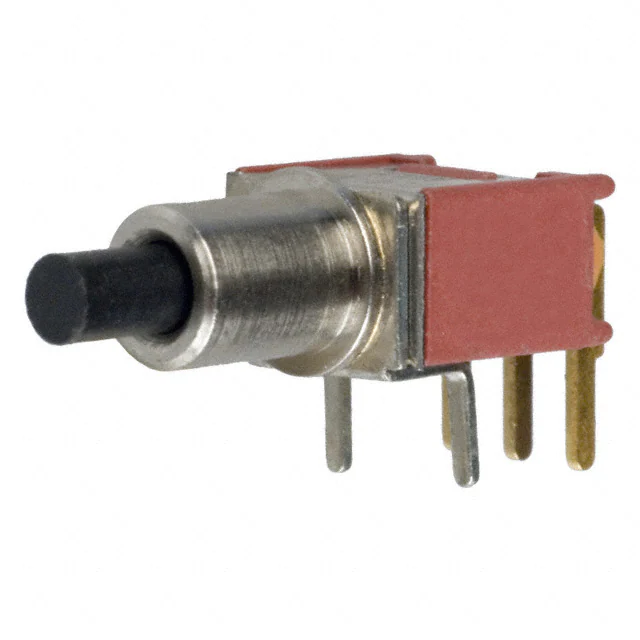

TP12SH8AGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
TP11SH8AGESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
EP12SD1CGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
RP8200B2M1CEBLKBLKRGSWITCH PUSH SPST 0.1A 24V |
0 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | - | Black | LED, Green/Red | 2.0, 2.2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
M2B25AA5W13/CDPDT ON-(ON) .282" PLUNGER 6A 12 |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
TP33W008250SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
SSWFS-S01-AE11-HWH-C20SWITCH PUSHBUTTON SPST 3A 125V |
0 |
|
Datasheet |
S01 | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Wire Leads with Connector | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C | |
|
|
9133CDKPUSHBUTTON SWITCH 9100 METAL |
0 |
|
- |
9100 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
|
PV1F640BBSWITCH PUSHBUTTON SPST-NO 2A 48V |
0 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
SCB15P15A-2ASWITCH PUSH SPDT 15A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15P10A-2CSWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
TP11SHWQESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
3MN-SP-7-P2-B11-M2RESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
3MN-SP7-P2-B11-MIRESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | White | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
3MN-SP7-P1-B10-M1GESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | White | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
3MN-SP-7-P1-B10-M2GESWITCH |
0 |
|
- |
3M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
8532T1CBE2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
|
810KSV30BSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
- |
800 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
