Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F2UEETBAUSWITCH PUSH DPDT 0.04A 50V |
0 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
1412N8C7SWITCH PUSH SPST-NC 3A 12V |
0 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NC | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Ivory | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
|
700SP7M3QEAP1BLKSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
|
700CSP7B60M7REHSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
ULP12OAM1QPMCL1GRNNILSWITCH PUSHBUTTON SPDT 0.5A 250V |
0 |
|
Datasheet |
ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 200mA (AC), 500mA (DC) | 250 V | 25 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | - | Solder Lug | - | Tactile Feedback | Rectangular - 17.70mm x 15.80mm | -20°C ~ 70°C |
|
|
700SP7M1REAP2REDBLKSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
700SP7M1REAP2WHTWHTSWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
|
30-601 RED-ESWITCH PUSH SPST-NO 0.15A 5V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
PV1F240NNSWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
RP8400B2M1CEBLKBLUNILSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
38CSP7B20M7QTSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
38C | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
700CSP7B60VS2REHSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
700C | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
AB11CWSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
38CSP71B10M6QTSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
38C | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
RP8100B2W1CEBLKYELNILSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Yellow | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
RP8100B2W1CEBLKREDNILSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
APA1BGPCSWITCH PUSH SPST-NC 50MA 48V |
0 |
|
Datasheet |
APA | Bulk | Obsolete | Through Hole | Standard | SPST-NC | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

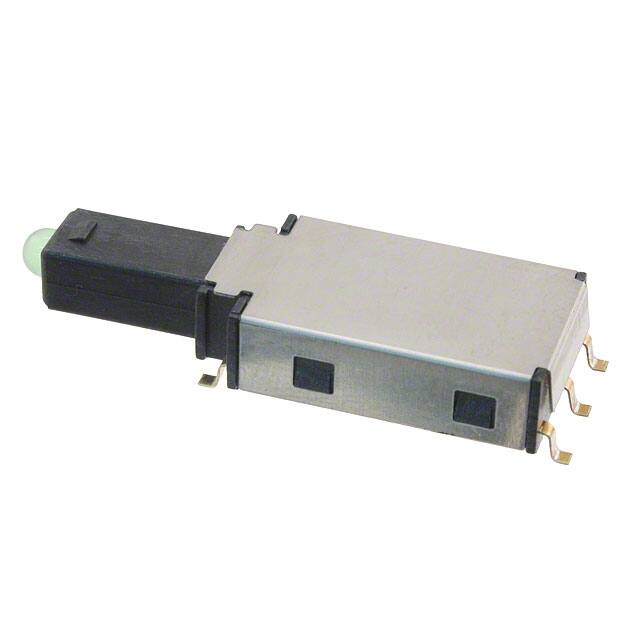

LP37OACGGSWITCH PUSH SPDT 0.25A 50V |
0 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green | 2.2 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
|
|
LP37OACGRSWITCH PUSH SPDT 0.25A 50V |
0 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Red | 2.3 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
|
LP37OACGYSWITCH PUSH SPDT 0.25A 50V |
0 |
|
Datasheet |
LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Yellow | 2.1 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
