Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS-12G03SWITCH PUSH SPDT 2.2A 14.5V |
0 |
|
Datasheet |
PS, COMAX | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 2.2A (DC) | - | 14.5 V | Round, Button | No Marking | Black | - | - | Socketable | - | - | - | -40°C ~ 85°C |
|
PR142C1000-106/ACC-F03-1SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
- |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear | Neon, Clear | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
LP4EE1PBNNRSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
PA412C1000-116SWITCH PUSH DPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA4B4C1000-136SWITCH PUSH SPST-NO 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 65°C |
|
|
800SP9B5M1REHSWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
WBL2UEEGYQSWITCH PUSH DPDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Green/Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PBH4UEEKZXNAGVSWITCH PUSH 4PDT 0.1A 30V |
0 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA4R12C1000-117SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Red | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA4R12C1000-127SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Amber | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
982A03RSWITCH PUSH SPDT 0.25A 28V |
0 |
|
- |
98000R | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
PR14EC1000-124SWITCH PUSH DPST-NO 16A 125V |
0 |
|
- |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Amber | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
PS-42C02-F NSSWITCH PUSHBUTTON |
0 |
|
Datasheet |
PS, COMAX | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO x 4 | Off-Mom | 10mA (DC) | - | 5 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
|
PA4R14C1000-145SWITCH PB SPST-NO 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Keyswitch, Illuminated | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | - | Blue | Incandescent, Blue | 24 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|

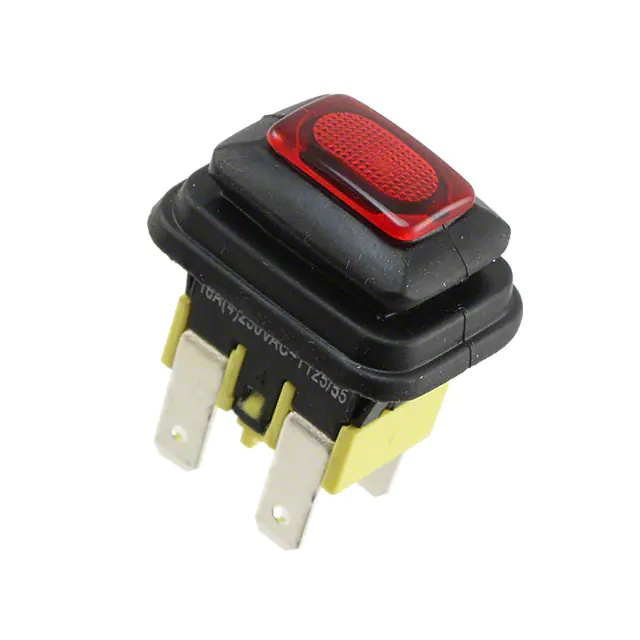

PA4R12C1000-116SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
LP4OA1PBNNRSWITCH PB DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button (Not Included) | - | - | LED, Red | 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
TL2205EEBPYBSWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button (Not Included) | - | - | LED, Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
K5A2 6N AUSWITCH PUSH SPST-NO 0.1A 50V |
0 |
|
Datasheet |
K5A2 | Tape & Reel (TR) | Obsolete | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | White | - | - | Gull Wing | - | - | - | -40°C ~ 105°C |
|
|
COM-09179PUSHBUTTON 33MM - GREEN |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard | - | - | 1A (AC) | - | 12 V | Round, Button | - | Green | - | - | Screw Terminal | - | - | Circular - 27.30mm Dia | - |
|
|
PA4R11C2021-144SWITCH PB SPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Keyswitch, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | - | Blue | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
