Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PR144C1000-134SWITCH PB SPST 16A 125V |
0 |
|
Datasheet |
PR | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | - | Green | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
PR141C4000-134SWITCH PB SPST 16A 125V |
0 |
|
Datasheet |
PR | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | - | Green | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
PA441C1021-114SWITCH PB SPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | - | Red | Incandescent, Red | 12 VAC/DC | PC Pin | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA411C1000-136SWITCH PUSHBUTTON SPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
ESB-33533SWITCH PUSH |
0 |
|
- |
ESB33 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | - | White | - | - | Gull Wing | - | - | - | - |
|
|
PA4R12C1900SWITCH PB DPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Keyswitch | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | - | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA441C4000-116SWITCH PB SPST 16A 125V |
0 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | - | Red | Neon, Red | 125 VAC | PC Pin | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PBH2UEENAGVXSWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA55EJSwitches |
0 |
|
Datasheet |
PA5 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Plunger for Cap | - | Yellow | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 125°C |
|
K5A2 4N AUSWITCH PUSH SPST-NO 0.1A 50V |
0 |
|
Datasheet |
K5A2 | Tape & Reel (TR) | Obsolete | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | White | - | - | Gull Wing | - | - | - | -40°C ~ 105°C |
|

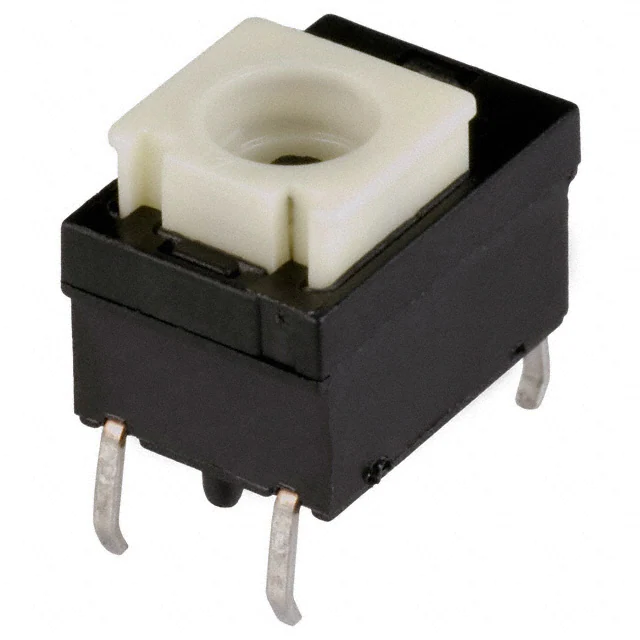

K6B 1.5 3NSWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
- |
K6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile Feedback | - | -40°C ~ 85°C |
|
|
PA5F6EJSWITCH PUSH DPST-NO 16A 125V |
0 |
|
Datasheet |
PA5, LAMB | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Square, Plunger | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | -20°C ~ 125°C |
|
TL2205EEBPBASWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button (Not Included) | No Marking | - | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
TL2205EECPBASWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button (Not Included) | No Marking | - | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
WBL2UEERGQSWITCH PUSHBUTTON DPDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
WBL4UEEGQR05CLRSWITCH PUSHBUTTON 4PDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PR142C2000-136SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
Datasheet |
PR1, LAMB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
WBL4UEERQSWITCH PUSHBUTTON 4PDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
MX2A-E1NNSWITCH TACTILE |
0 |
|
Datasheet |
MX | Bag | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Blue | - | - | PC Pin | IP40 | - | - | - |
|
|
MX1A-11GWSWITCH PUSH SPST-NO 0.01A 12V |
0 |
|
- |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
