Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03924-0001" DOUBLE PLNGER SWITCH AL/SAL |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | DPST-NO | Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Dual | No Marking | Silver | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|

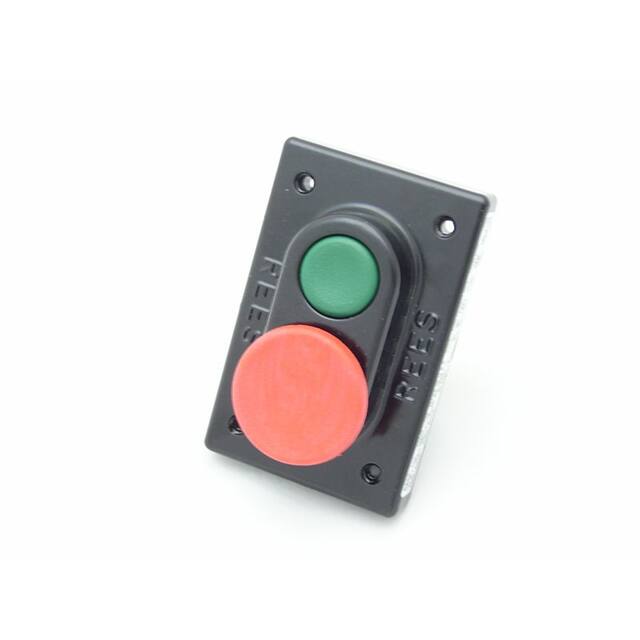

03605-1321"/1.75" DOUBLE PLUNGER GRN/RED |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Dual | No Marking | Green, Red | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
01919-0122.25" MUSH PLNGR W/ LATCH CHROME |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Mushroom | No Marking | Silver | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
04161-0012.25" PUSHBUTTON W/KEYLOCK BLACK |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Mushroom | No Marking | Black | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
04161-0022.25" PUSHBUTTON W/KEYLOCK RED |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Mushroom | No Marking | Red | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
04932-1321"/1.75" DBL PLUNGER W/LOCK G/R |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Dual | No Marking | Green, Red | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
04932-6321"/1.75" DBL PLUNGER W/LOCK G/R |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Dual | No Marking | Green, Red | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
04801-0122.25" PUSHBUTTON W/KEYLCK CHROME |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
01760-0122.25" PUSHBUTTON W/KEYLCK CHROME |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Mushroom | No Marking | Silver | - | - | Screw Terminal | - | - | Rectangular - 73.15mm x 54.10mm | 0°C ~ 55°C |
|
|
04956-512MUSHROOM PLUNGER W/SHIELD CHROME |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | 4PST-2NO/2NC | On-Off, Off-On | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button, Mushroom | No Marking | Silver | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | -30°C ~ 55°C |
|

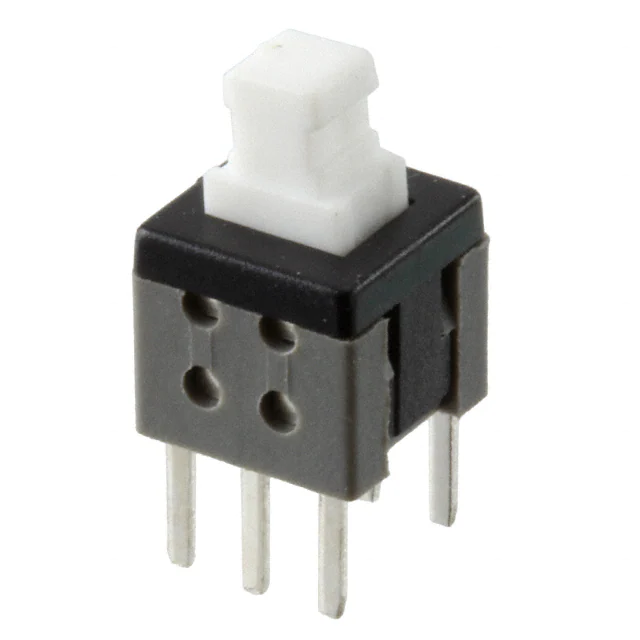

MHPS2266SWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
PB400EEQR1BLKSWITCH PB DPST 3A 30V |
0 |
|
Datasheet |
PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 3A (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|
|
PB400OAQR1BLKSWITCH PB DPST 3A 30V |
0 |
|
Datasheet |
PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 3A (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|
F2UEESWITCH PUSH DPDT 0.5A 125V |
0 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
800UDP8P1A1M2RER1BLKSWITCH PUSH DPDT 0.4VA 20V |
0 |
|
Datasheet |
800U | Tube | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
F2UEEAUSWITCH PUSH DPDT 0.04A 50V |
14 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|

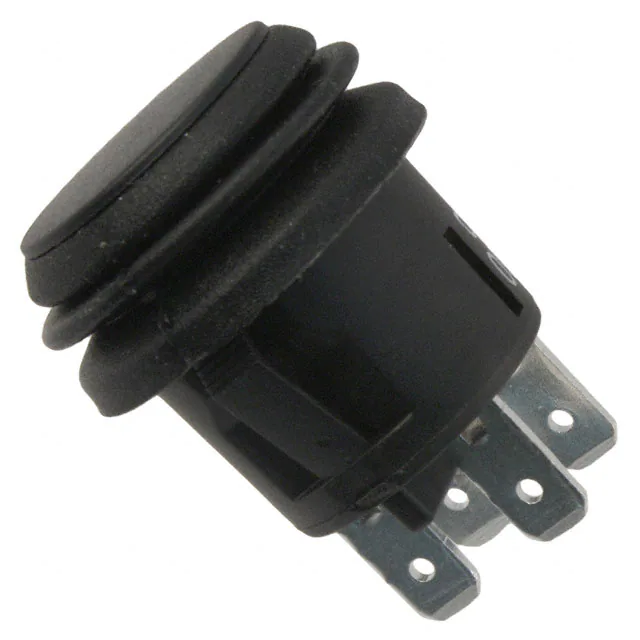

GPB527A202BBSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
RP8100B2M1CEBLKBLKGRNSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
1825096-4SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
1241.2801SWITCH PUSH SPST-NO 125MA 48V |
0 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -20°C ~ 60°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
