Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB216CWCKW01-5C-JSSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB216CWCKW01/CUL-5C-JSSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB216CWCKW01/CUL-5D-JSSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB226CWCKW01-5C-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB226CWCKW01-5D-EBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

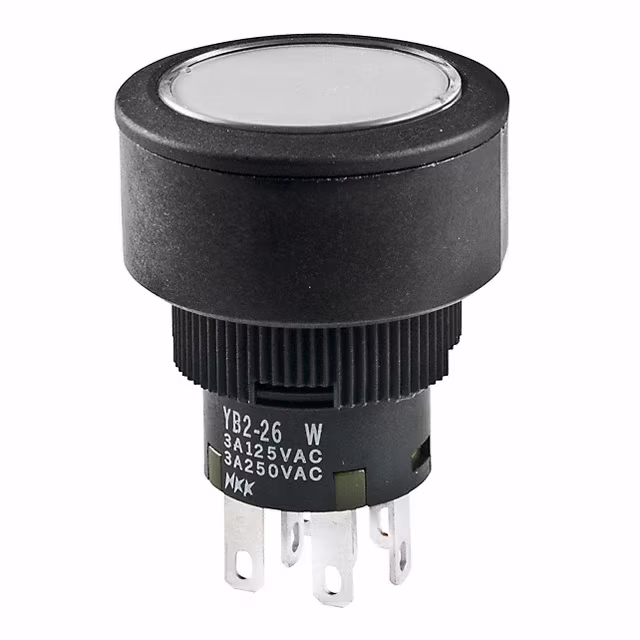

YB226CWCKW01-5D-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

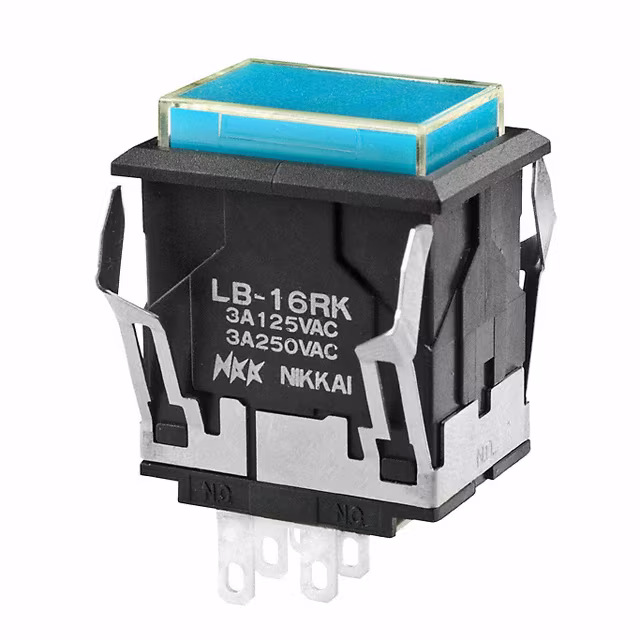

LB16RKW01-6G-JGSWITCH PUSHBUTTON SPDT 3A 125V |
35 |
|
Datasheet |
LB | Box | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
IRR8Z222SWITCH PUSHBUTTON DPST 5A 250V |
0 |
|
Datasheet |
IR | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 85°C |
|
A16L-JYM-12D-2SWITCH PUSHBUTTON DPDT 5A 125V |
8 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Yellow | LED, Yellow | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
YB215CWSKW01-5F05-FBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWCKW01-5F05-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-5F05-FBPANEL SEALED PUSHBUTTON |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Green (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-5F12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWSKW01-5F12-FBSPDT ON-(ON) PANEL SEAL SQUARE B |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-6B-JBSPDT ON-(ON) PANEL SEAL SQUARE B |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-5F12-JBPANEL SEALED PUSHBUTTON |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSKW01-6G-JBPANEL SEALED PUSHBUTTON |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Clear (White Filter/Diffuser) | LED, Blue | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|

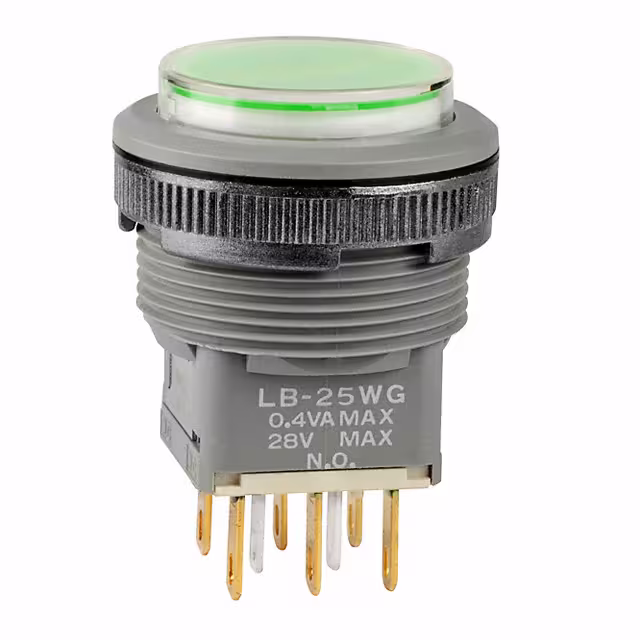

LB25WGG01-5F24-JFSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB25WKG01-5C12-JCSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB25WKG01-5F24-JFSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
