Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCS-16-NO00A12-Z0NCS3NCWF-00000000-S0000-SMCS 16, METAL SWITCH SHORT STROK |
515 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.10mm Dia | -20°C ~ 60°C |
|
30-102SWITCH PUSH SPST-NO 0.15A 24V |
529 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|

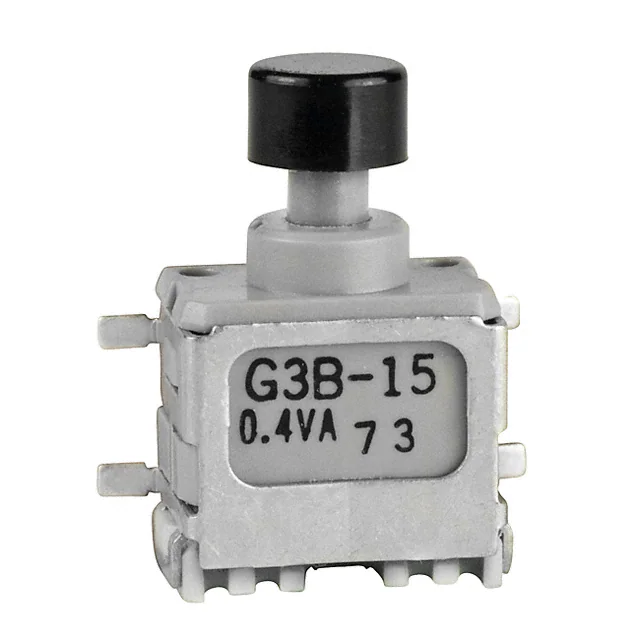

G3B15AH-XASWITCH PUSH SPDT 0.4VA 28V |
200 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
WSA48-1-RM-N-BK-BSWITCH PUSHBUTTON 5A 125V |
108 |
|
Datasheet |
WSA48 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 5A (AC/DC) | 125 V | 28 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
C7001AFBRSWITCH PUSH SPST-NO 16A 250V |
321 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
E112LYCBESWITCH PUSH SPDT 0.4VA 20V |
280 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TP11LTZQESWITCH PUSH SPST-NO 1A 120V |
1,503 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

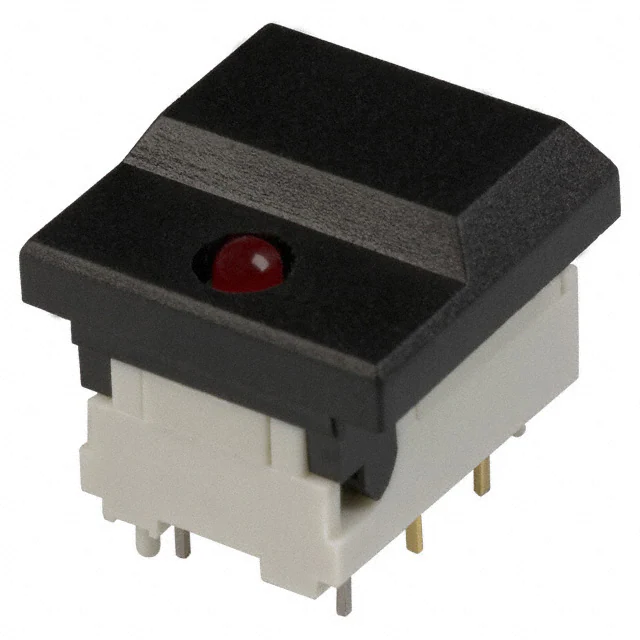

SETL BK RD 7.62 AU EESWITCH PUSH SPDT 0.01A 24V |
525 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

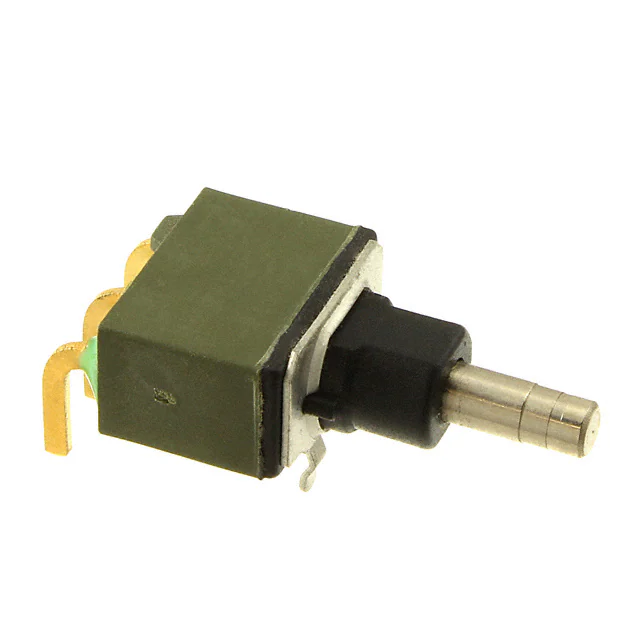

M2B15AA5G30SWITCH PUSH SPDT 0.4VA 28V |
287 |
|
Datasheet |
M2 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

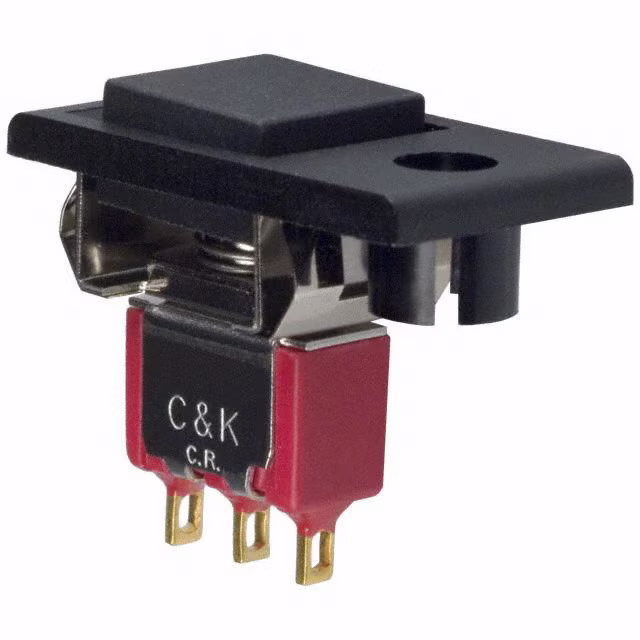

8125J82ZBE22SWITCH PUSH SPDT 0.4VA 20V |
208 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
TP11SH8AVBESWITCH PUSH SPST-NO 0.4VA 20V |
360 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
TP11LTCQESWITCH PUSH SPST-NO 1A 120V |
563 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

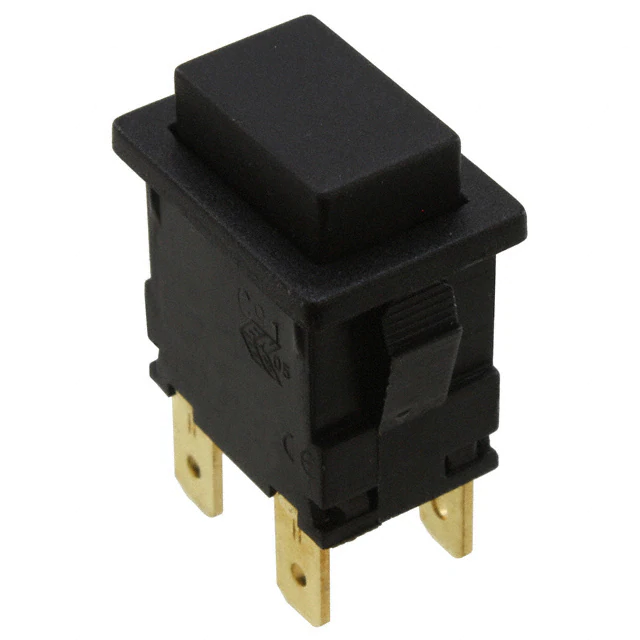

H8350ABBBSWITCH PUSHBUTTON DPST 12A 250V |
627 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 12A (AC) | 250 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
|
PV6H24011G-321SWITCH PB SPST-NO 2A 48V |
326 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Orange | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
8532TZQE2SWITCH PUSH SPST-NO 1A 120V |
241 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

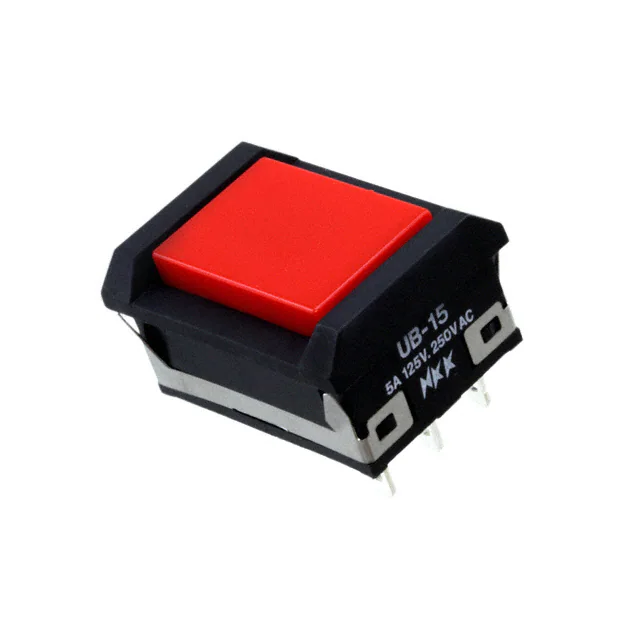

UB15NBKW01N-CSWITCH PUSHBUTTON SPDT 5A 125V |
226 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
UB15NBKW01N-FSWITCH PUSHBUTTON SPDT 5A 125V |
181 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

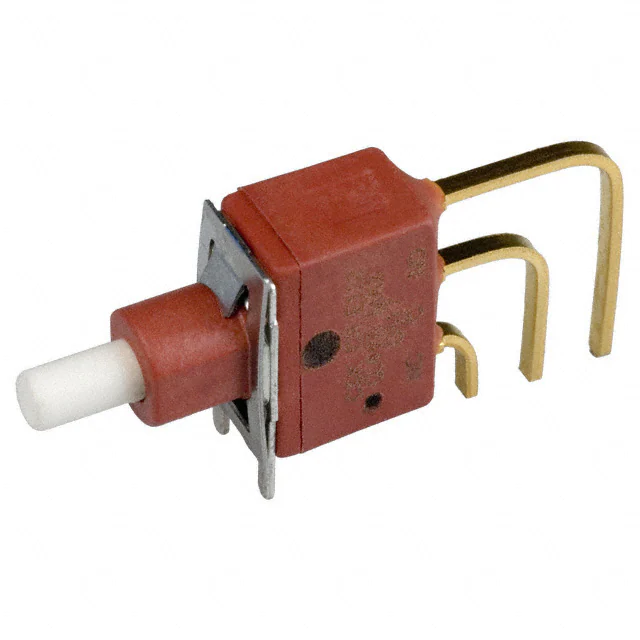

E112SD1AV2BESWITCH PUSH SPDT 0.4VA 20V |
130 |
|
Datasheet |
E010 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

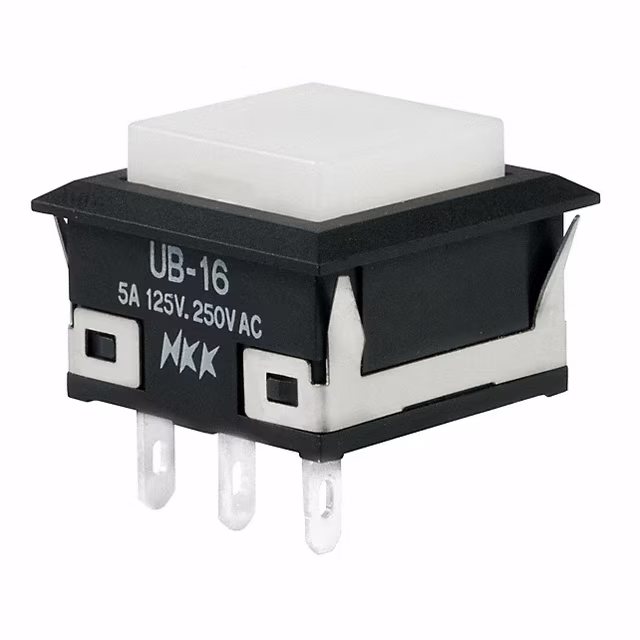

UB16KKW01N-BSWITCH PUSHBUTTON SPDT 5A 125V |
548 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

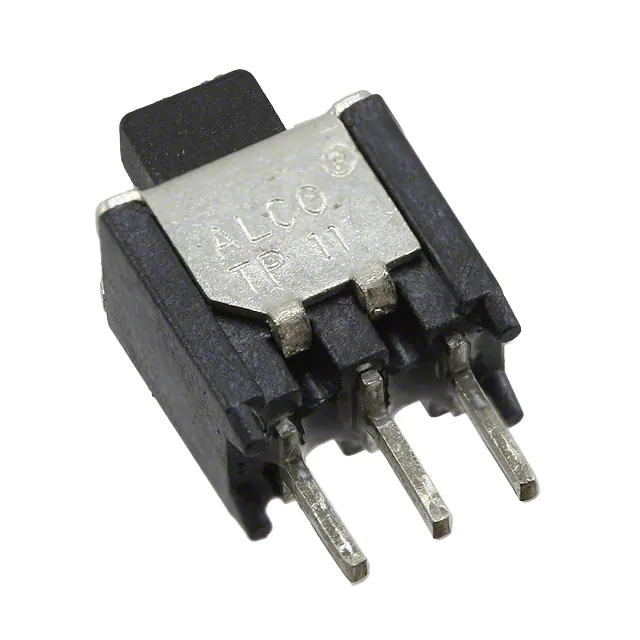

1825095-6SWITCH PUSHBUTTON SPDT 0.4VA 20V |
150 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
