Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP24L-M2BE10Q4R22MM/R/LIGHT24V/MOMENTARY/1NO |
12 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 8A (AC), 2.5A (DC) | 120 V | 30 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CP24L-M2BE01Q4S22MM/BL/LIGHT24V/MOMENTARY/1NC |
12 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 8A (AC), 2.5A (DC) | 120 V | 30 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
LB15WKG01SWITCH PUSH SPDT 0.4VA 28V |
30 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

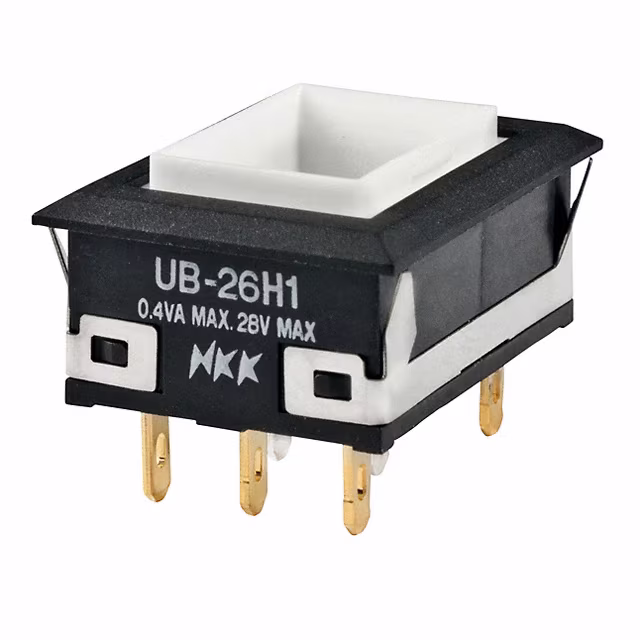

UB26NKG015CSWITCH PUSH DPDT 0.4VA 28V |
9 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

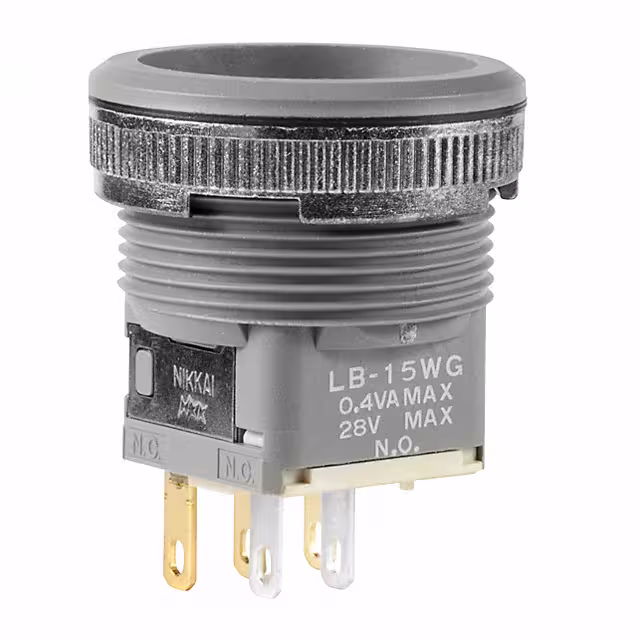

LB15WGG01SWITCH PUSH SPDT 0.4VA 28V |
49 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB26KKW015F-ABSWITCH PUSHBUTTON DPDT 5A 125V |
18 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
JPM26B-BSWITCH PUSH DPST 10A 125V |
18 |
|
Datasheet |
JP | Tray | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC) | 125 V | - | Rectangular, Button | No Marking | Ivory | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
|
YB15KKG01-GBSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
SLA3A12V3M9SWITCH PB DPST-NO 10A 250VAC |
65 |
|
Datasheet |
S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Amber | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - |
|
|
SLA3A12V4M9SWITCH PB DPST-NO 10A 250VAC |
49 |
|
Datasheet |
S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Green | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - |
|
|
SLA3A125V1M9SWITCH PB DPST-NO 10A 250VAC |
49 |
|
Datasheet |
S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Red | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - |
|
|
SLA3A125V2M9SWITCH PB DPST-NO 10A 250VAC |
48 |
|
Datasheet |
S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Clear | Neon, Clear | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - |
|
|
YB15WSKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
33 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
YB26MKW01SWITCH PUSHBUTTON DPDT 3A 125V |
8 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
AV1911R724Q04SWITCH PUSHBUTTON SPDT 3A 250V |
70 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

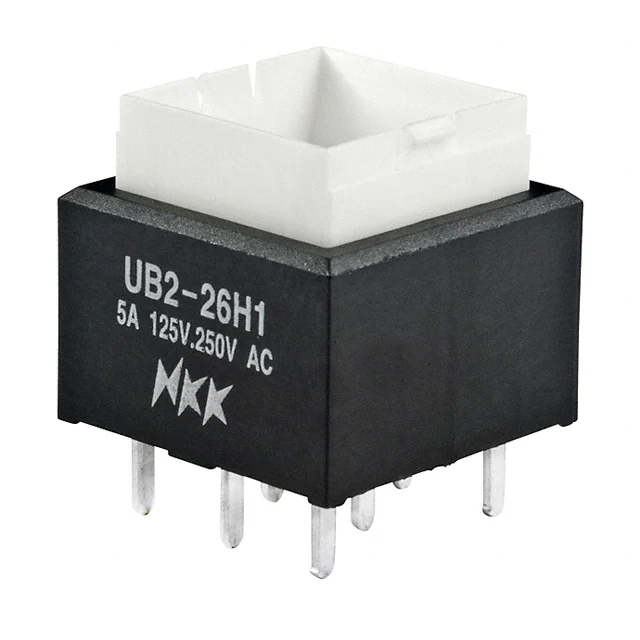

UB226SKW035CSWITCH PUSHBUTTON DPDT 5A 125V |
43 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

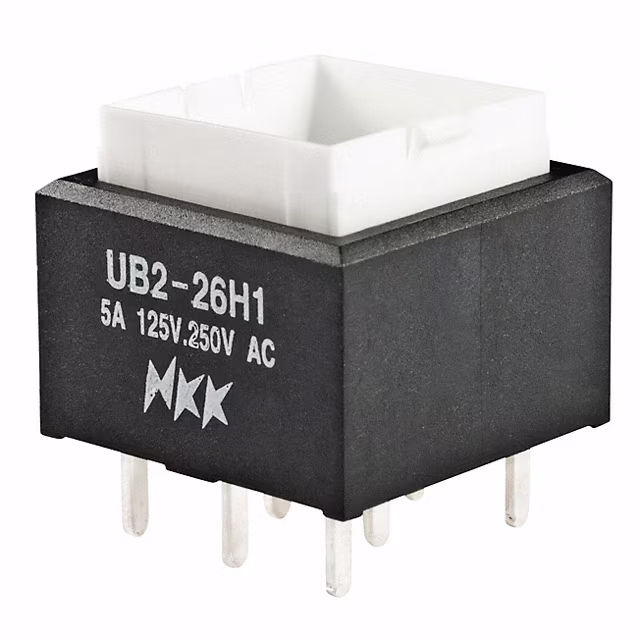

UB226SKW035FSWITCH PUSHBUTTON DPDT 5A 125V |
1 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
3-145-589SWITCH PUSHBUTTON SPDT 5A 125V |
19 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -30°C ~ 85°C |
|
|
BH16NESBRGBSWITCH PB SPST 1A 125VAC |
10 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Silver | LED, Blue/Green/Red | 2.1, 3.3, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

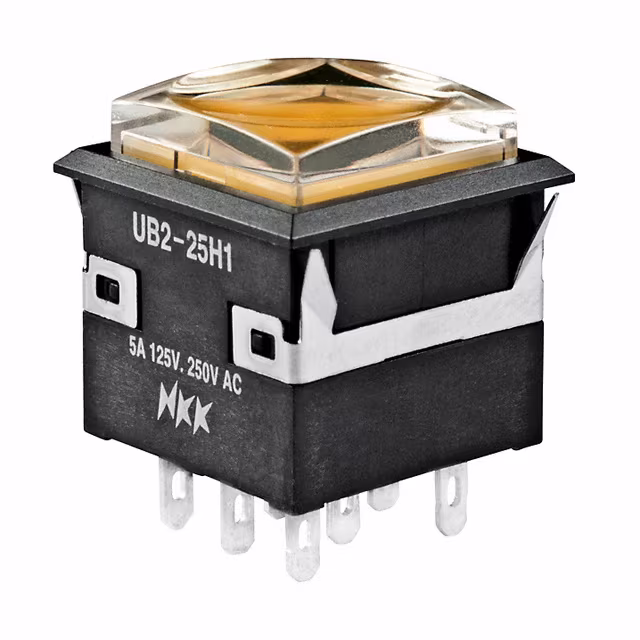

UB225KKW015D-1JDSWITCH PUSHBUTTON DPDT 5A 125V |
75 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
