Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN25SB1W03-DALARGE BUSHING MINIATURE PUSHBUTT |
10 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

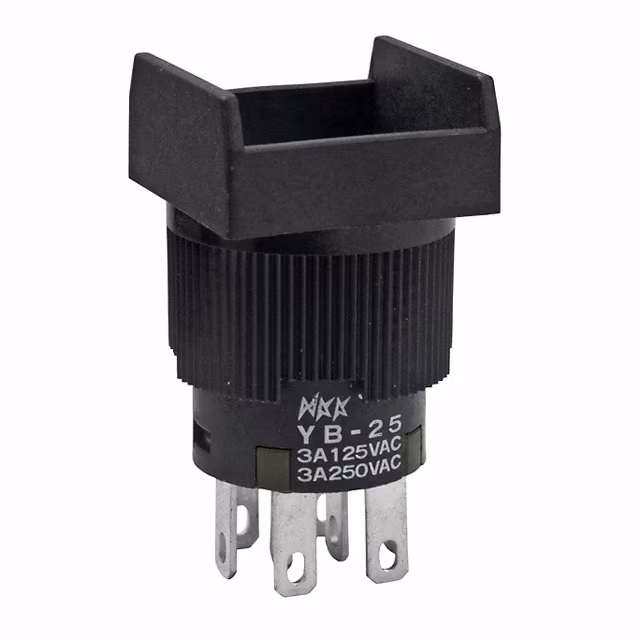

YB25SKW01SWITCH PUSHBUTTON DPDT 3A 125V |
80 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

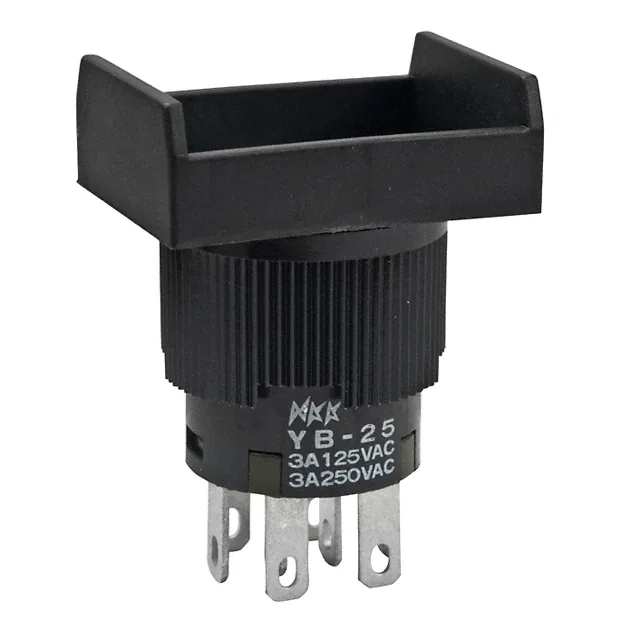

YB25RKW01SWITCH PUSHBUTTON DPDT 3A 125V |
77 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

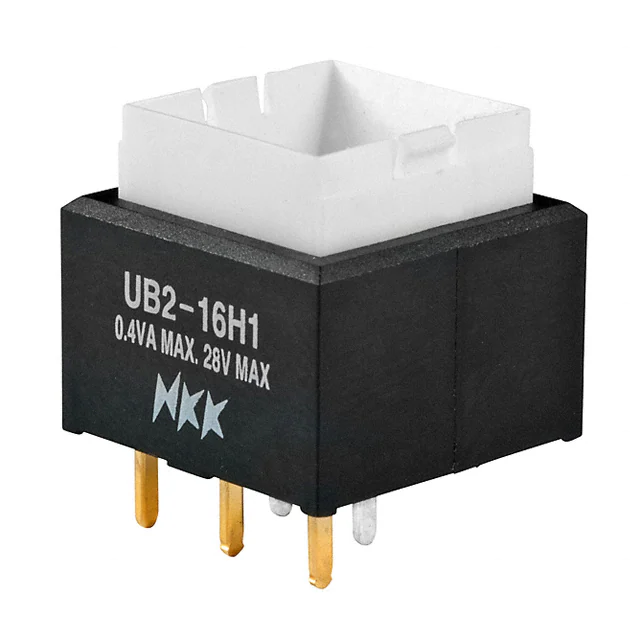

UB216SKG035CSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

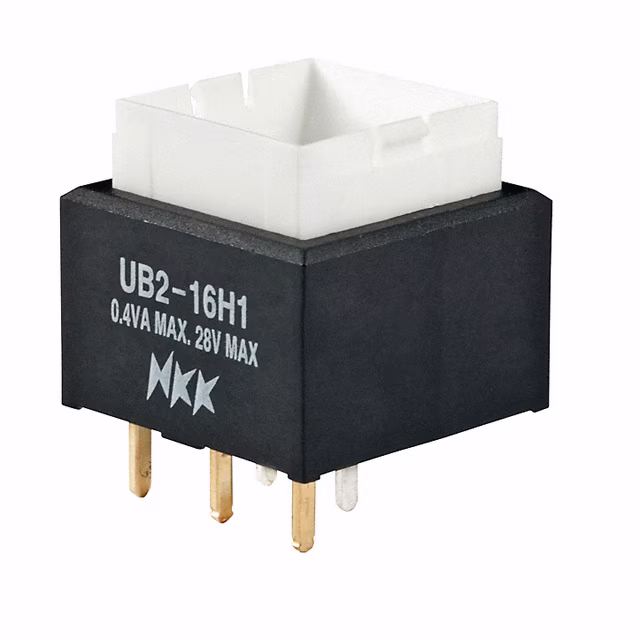

UB216SKG035DSWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
09-410013.10085UPB_I/O_NAMUR_12V_CODE 3_FIRM HA |
15 |
|
Datasheet |
09 | Bag | Active | Panel Mount, Snap-In | Standard, Illuminated | - | - | 50mA (DC) | - | 32 V | Rectangular, Button | - | Black | - | - | Socketable | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 85°C |
|

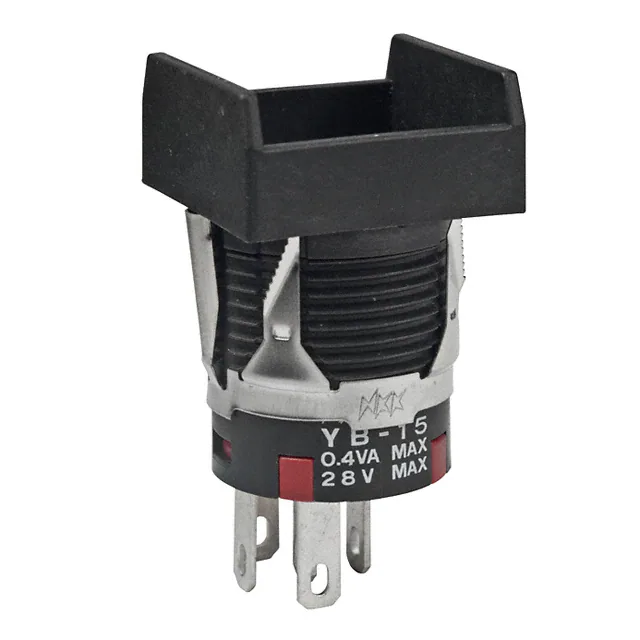

YB15KKG01SWITCH PUSH SPDT 0.4VA 28V |
5 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
PV7F2Y0SS-344-M10SWITCH PB DPST-NO/NC 2A 48V |
92 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

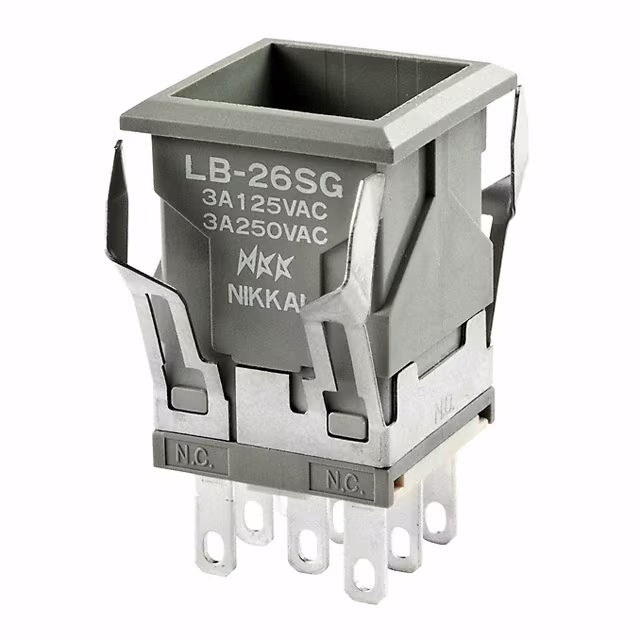

LB26SGW01SWITCH PUSHBUTTON DPDT 3A 125V |
19 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

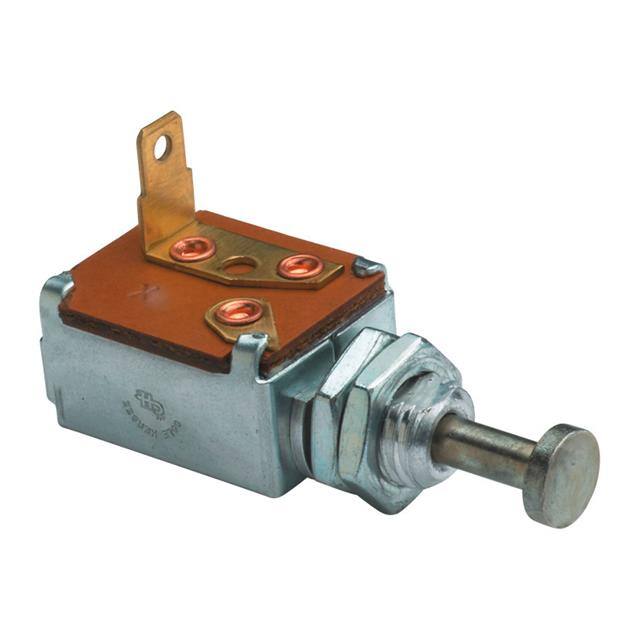

91812SWITCH MOM NC GND |
89 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 5A (DC) | - | 12 V | Round, Button | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

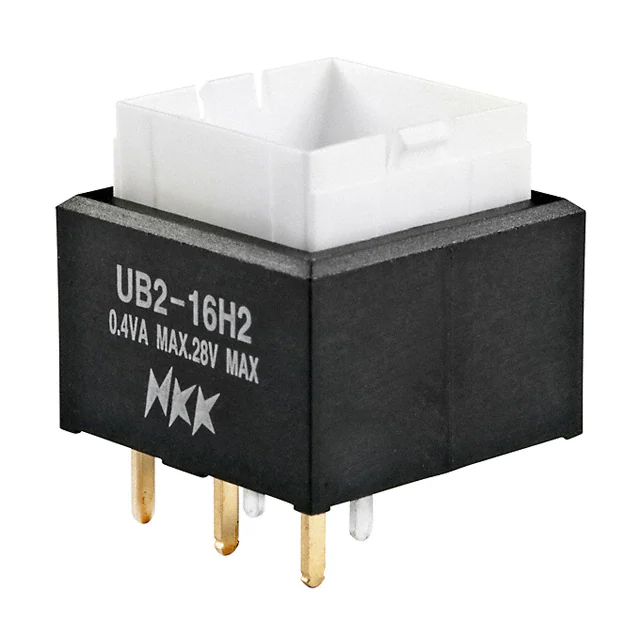

UB216SKG036CFSWITCH PUSH SPDT 0.4VA 28V |
9 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
MP0012/1/RDSWITCH PUSH SPST-NO 1A 110V |
47 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC), 2A (DC) | 110 V | 12 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | - | - | Circular - 19.20mm Dia | -20°C ~ 85°C |
|
|
PVB3F230113R1ANTI-VANDAL, 2A, SPDT, ON-ON |
49 |
|
Datasheet |
PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button, Flush | - | Black | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
09-400009.10648UPB_I/O_STANDARD_12V_CODE 3_FIRM |
15 |
|
Datasheet |
09 | Bag | Active | Panel Mount, Snap-In | Standard, Illuminated | - | - | 50mA (DC) | - | 32 V | Rectangular, Button | - | Black | - | - | Socketable | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 85°C |
|
|
09-400009.10083UPB_I/O_STANDARD_12V_CODE 3_FIRM |
15 |
|
Datasheet |
09 | Bag | Active | Panel Mount, Snap-In | Standard, Illuminated | - | - | 50mA (DC) | - | 32 V | Rectangular, Button | - | Black | - | - | Socketable | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 85°C |
|
|
09-400009.1S0007UPB_I/O_STANDARD_12V_CODE 3_FIRM |
15 |
|
Datasheet |
09 | Bag | Active | Panel Mount, Snap-In | Standard, Illuminated | - | - | 50mA (DC) | - | 32 V | Rectangular, Button | - | Black | - | - | Socketable | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 85°C |
|
|
09-400009.10087UPB_I/O_STANDARD_12V_CODE 3_ FIR |
15 |
|
Datasheet |
09 | Bag | Active | Panel Mount, Snap-In | Standard, Illuminated | - | - | 50mA (DC) | - | 32 V | Rectangular, Button | - | Black | - | - | Socketable | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 85°C |
|
|
3-145-559SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -30°C ~ 85°C |
|
|
3-145-556SWITCH PUSHBUTTON SPDT 5A 125V |
15 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -30°C ~ 85°C |
|
|
LB15CKW01-FJSWITCH PUSHBUTTON SPDT 3A 125V |
19 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
