Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

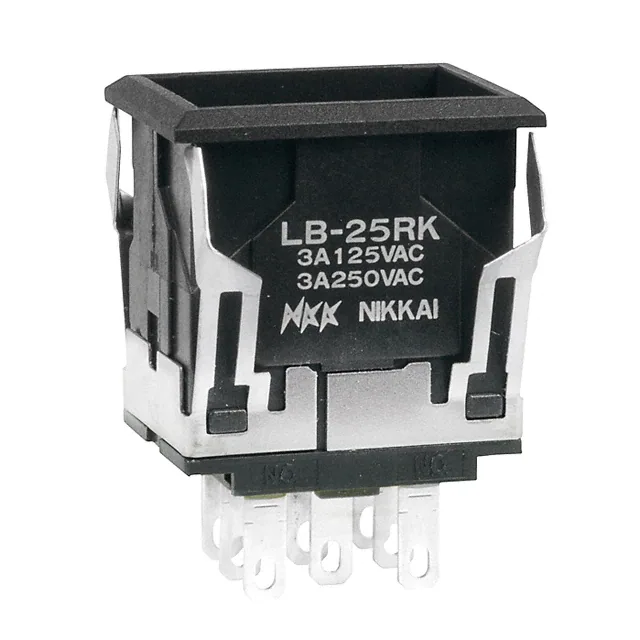

LB25RKW01SWITCH PUSHBUTTON DPDT 3A 125V |
9 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|

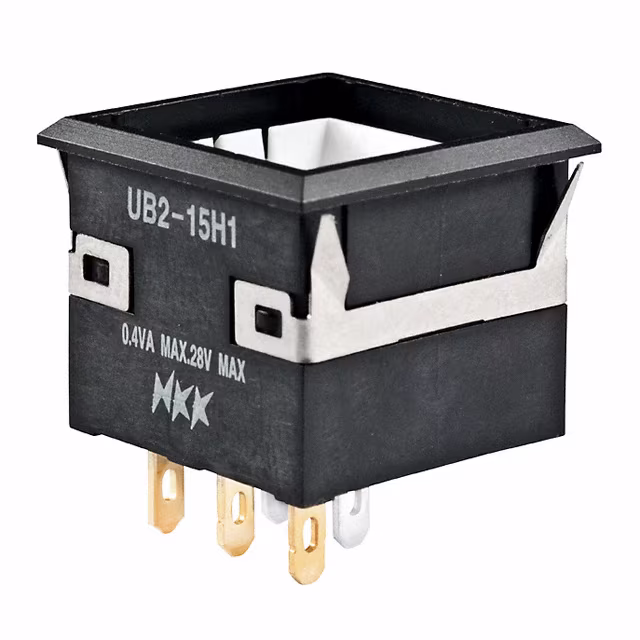

UB215KKG015CSWITCH PUSH SPDT 0.4VA 28V |
1 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
C1S02-R12KY-H0116MM/YL/LIGHT24V/MOMENTARY/2NO2N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S02-R12KB-H0216MM/BL/LIGHT24V/MOMENTARY/1NO1N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S02-R12KR-H0216MM/R/LIGHT24V/MOMENTARY/1NO1NC |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S02-R12KB-H0116MM/BL/LIGHT24V/MOMENTARY/2NO2N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S02-R12KG-H0216MM/GR/LIGHT24V/MOMENTARY/1NO1N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S01-R12KB-H0116MM/BL/LIGHT24V/MAINTAINED/2NO2 |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S02-R12KR-H0116MM/R/LIGHT24V/MOMENTARY/2NO2NC |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S01-R12KG-H0116MM/GN/LIGHT24V/MAINTAINED/2NO2 |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S01-R12KB-H0216MM/BL/LIGHT24V/MAINTAINED/1NO1 |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S01-R12KY-H0116MM/BL/LIGHT24V/MAINTAINED/2NO2 |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S02-R12KG-H0116MM/GR/LIGHT24V/MOMENTARY/2NO2N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S02-R12KY-H0216MM/YL/LIGHT24V/MOMENTARY/1NO1N |
16 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C1S01-R12KY-H0216MM/YL/LIGHT24V/MAINTAINED/1NO1 |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S01-R12KR-H0116MM/R/LIGHT24V/MAINTAINED/2NO2N |
16 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S01-R12KG-H0216MM/GN/LIGHT24V/MAINTAINED/1NO1 |
15 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
C1S01-R12KR-H0216MM/R/LIGHT24V/MAINTAINED/1NO1N |
15 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
UB25KKG015F-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
20 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

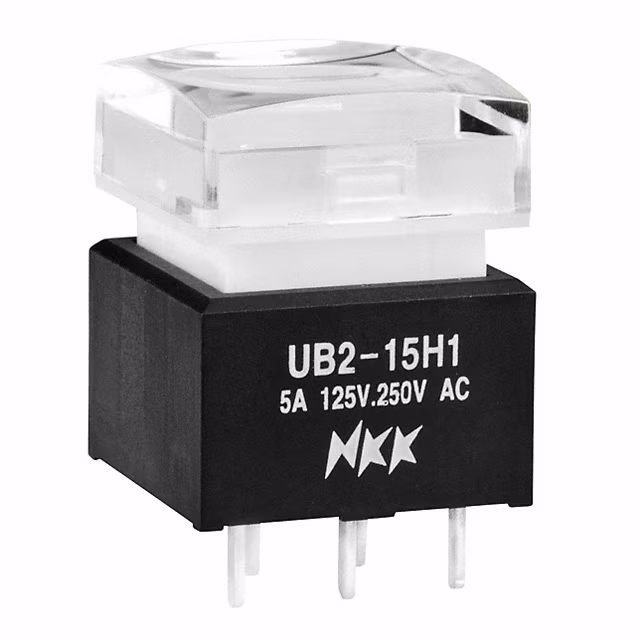

UB215SKW035D-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
