Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHU2LBSBNSWITCH PB DPDT 3A 125V |
15 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
|
LB25CKG01SWITCH PUSH DPDT 0.4VA 28V |
22 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

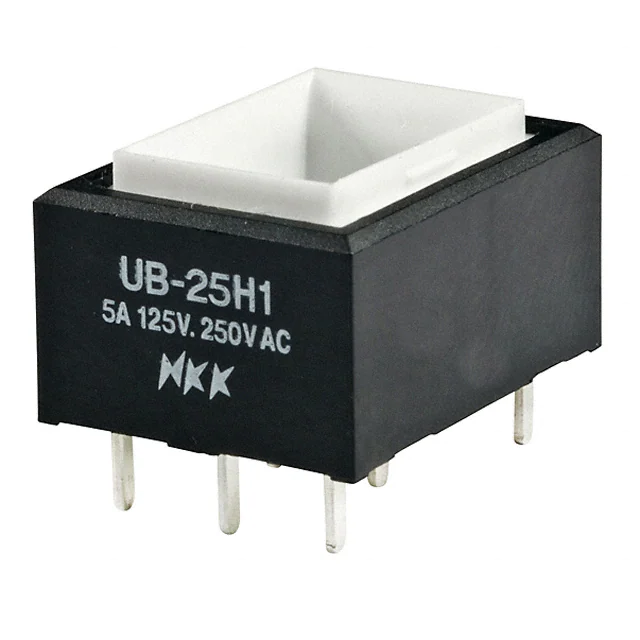

UB25RKW035CSWITCH PUSHBUTTON DPDT 5A 125V |
13 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
YB15WSKG01-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
11 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
DH252NBSBNSWITCH PB 4PST-2NO/2NC 2A 125V |
26 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
DH22U2NBSBNSWITCH PB DPDT 3A 125V |
6 |
|
Datasheet |
DH22U | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
8646ASWITCH PUSHBUTTON DPDT 6A 125V |
44 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
UB16NBKG015F-JFSWITCH PUSH SPDT 0.4VA 28V |
31 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15WKW01-JFSWITCH PUSHBUTTON SPDT 3A 125V |
22 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH251NBUB12SWITCH PB DPST-NO/NC 2A 125V |
17 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|

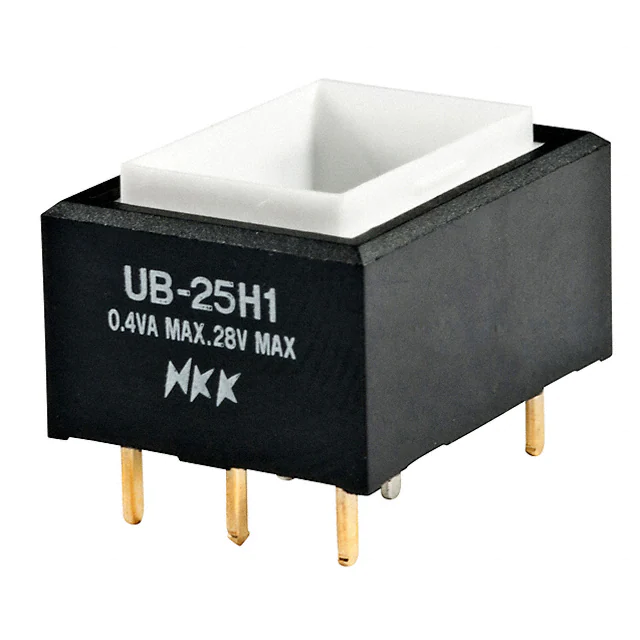

UB25RKG035FSWITCH PUSH DPDT 0.4VA 28V |
7 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

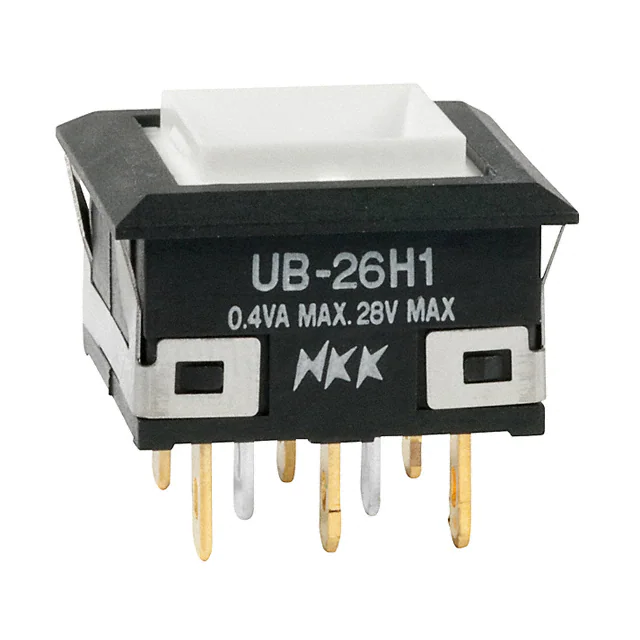

UB26KKG015CSWITCH PUSH DPDT 0.4VA 28V |
94 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
A3AA-90K1-00GSWITCH PUSH SPST-NO 6A 125V |
10 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
A3AA-90L1-00GSWITCH PUSH SPST-NO 6A 125V |
10 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
A3AA-90L1-00RSWITCH PUSH SPST-NO 6A 125V |
10 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | IP00 | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
A3AT-91K1-00YSWITCH PUSH SPST-NO 6A 125V |
10 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|

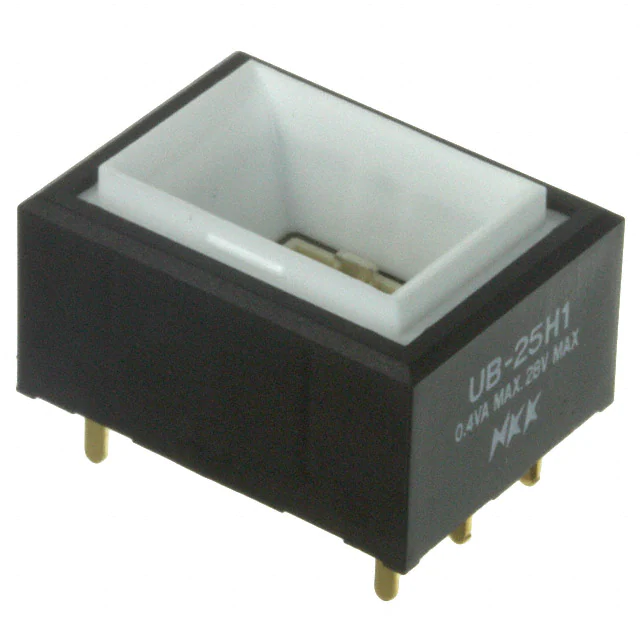

UB25RKG035DSWITCH PUSH DPDT 0.4VA 28V |
3 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
PNP8E2D2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V |
60 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
AH1NAYXSWITCH PB DPST-NO/NC 1A 125V |
19 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
WSA50-E-RBK-N-RD-BPBS 16MM SPDT 5A 28V UL61058 MOM |
8 |
|
Datasheet |
WSA50 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 28 V | Round, Button, Domed | - | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
