Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15CKG01-JBSWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

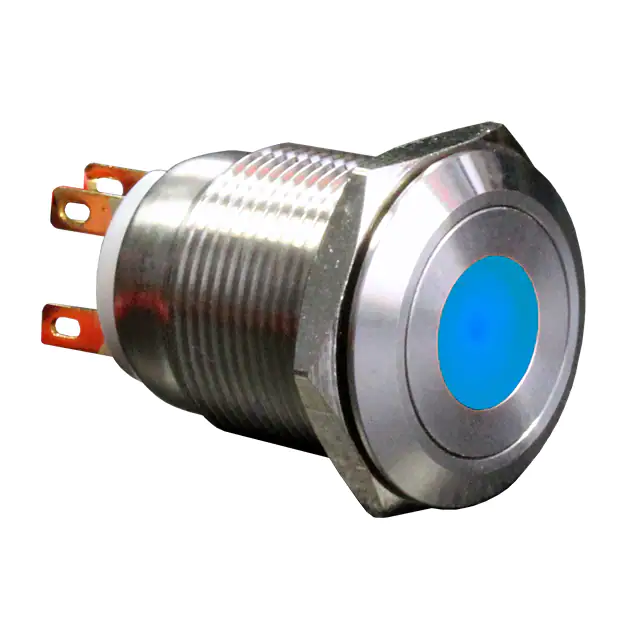

AH1NCSBNSWITCH PB DPST-NO/NC 1A 125V |
9 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
D16EET11SWITCH PB SPDT 8A 125V |
100 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

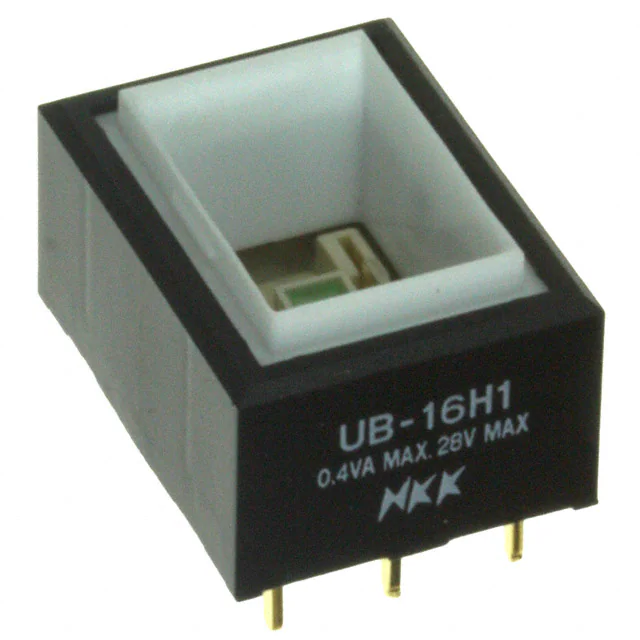

UB16RKG035FSWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
ULV4F2BSS5G1SWITCH PUSHBUTTON SPDT 3A 125V |
73 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green/Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
A3U-TBR-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
8 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
AH1NBSBNSWITCH PB DPST-NO/NC 1A 125V |
40 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
AH1NGSBNSWITCH PB DPST-NO/NC 1A 125V |
40 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NGBG220SWITCH PB DPST-NO/NC 1A 125V |
40 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | 220 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

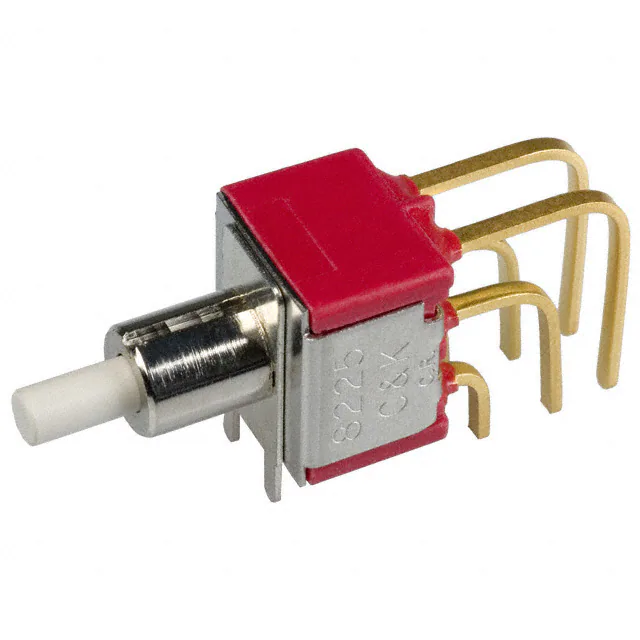

8225SD9AV2BESWITCH PUSH DPDT 0.4VA 20V |
87 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
GHNEUBBNSWITCH PB SPST 2A 48V |
41 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Blue | LED, Blue | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
8121SHAV2GESWITCH PUSHBUTTON SPDT 1A 120V |
42 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
AHU1NKSRNSWITCH PB SPDT 3A 125V |
34 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
|
AHU1NKSGNSWITCH PB SPDT 3A 125V |
26 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
|
SAV4F1BSS531SWITCH PB SPDT 15A 125V |
11 |
|
Datasheet |
SAV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 85°C |
|
A3U-TBS-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
10 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|

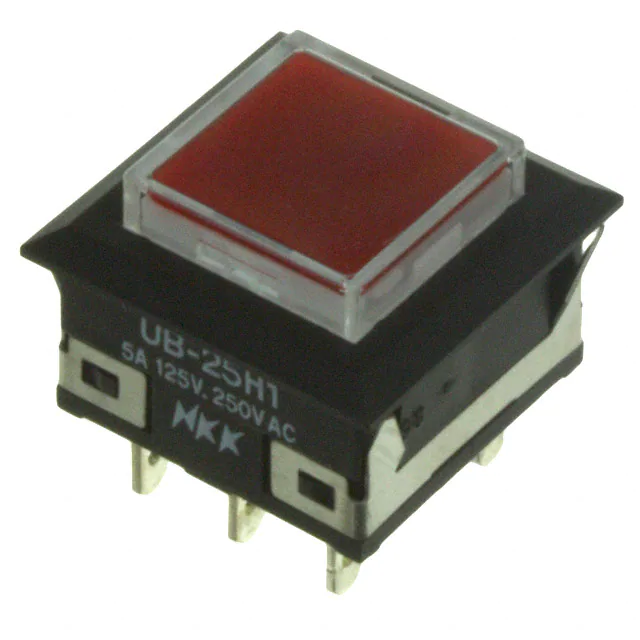

UB25KKW015C-JCSWITCH PUSHBUTTON DPDT 5A 125V |
17 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15RKW01-FSWITCH PUSHBUTTON SPDT 3A 125V |
34 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
8632ABULSWITCH PUSHBUTTON SPDT 6A 125V |
49 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
AHU1NKSB12SWITCH PB SPDT 3A 125V |
34 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
