Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB25SKW01-5F12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
10 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
YB26WRKW01-5D24-JBSWITCH PUSHBUTTON DPDT 3A 125V |
2 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
MC22MOSGRSW CAPACITIVE SPST-NO 10MA 12V |
54 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 55°C |
|
XB6EDW4B1PILLUMINATED MONOLITHIC PUSH BUTT |
9 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Rectangular, Button, Flush | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
NX303FB1B-62TACTICAL PUSHBUTTON SC 3 CONTACT |
17 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|

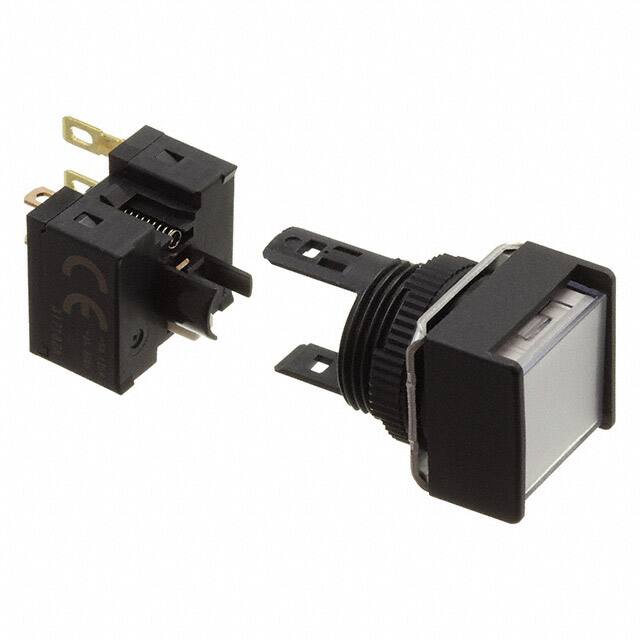

A165-AWM-1SWITCH PUSHBUTTON SPDT 5A 125V |
6 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
IZPR3P462SWITCH PUSH SPST-NO 0.2A 250V |
62 |
|
Datasheet |
IZ | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Red | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|
|
LB15WKW01-5F24-JFSWITCH PUSHBUTTON SPDT 3A 125V |
9 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKW01-5F12-JFSWITCH PUSHBUTTON SPDT 3A 125V |
11 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
LB15WKW01-5C05-JCSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
84-6820.0020SWITCH STOP LIGHT GRAY 1NC NON |
7 |
|
Datasheet |
84 | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

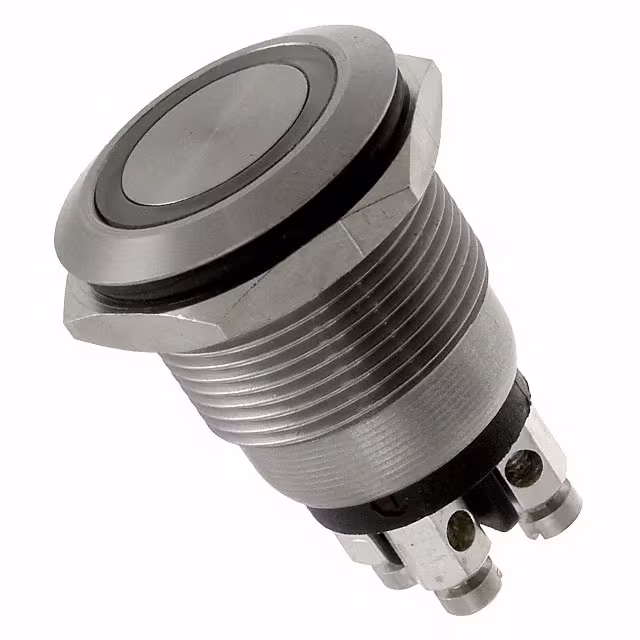

MPI002/TERM/D5SWITCH PUSH SPST-NO 0.05A 24V |
28 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | 3.6 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
UB225SKW036F-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
23 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
NX301HB1B-61TACTICAL PUSHBUTTON SWITCH 1 CON |
9 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
NP8S2D2W4QESWITCH PUSHBUTTON SPDT 5A 32V |
96 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

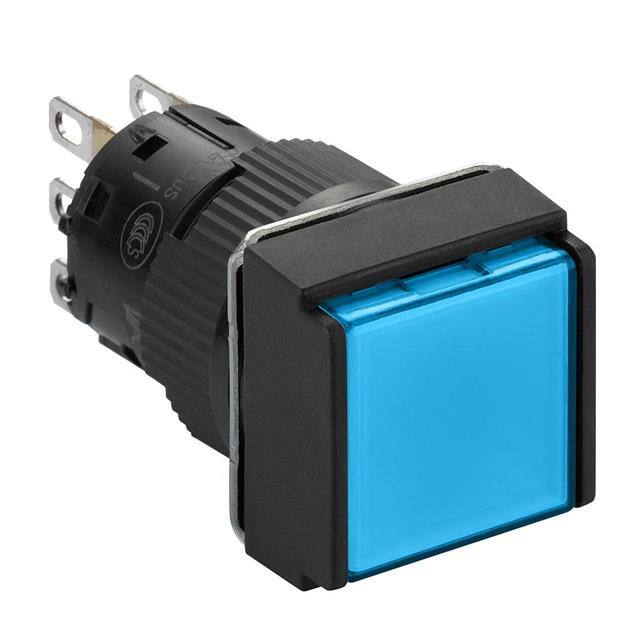

XB6ECF6B1PILLUMINATED MONOLITHIC PUSH BUTT |
10 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | - | - | - | Square, Button | - | Blue | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
MP0045/1E2RD012SWITCH PUSHBUTTON DPDT 3A 250V |
88 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

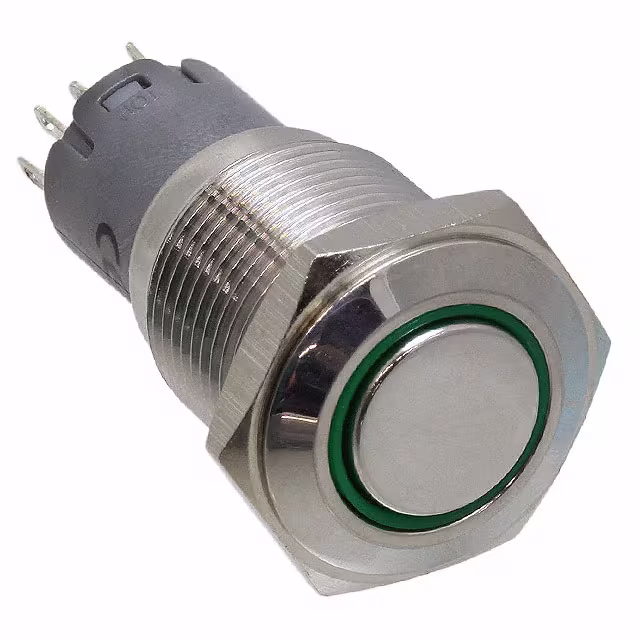

MP0045/1E2GN012SWITCH PUSHBUTTON DPDT 3A 250V |
72 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
45-1131.3140.000.101SWITCH PUSH SPST-NO 10A 500V |
23 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button, Flush | No Marking | Yellow | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 70°C |
|
45-1131.3110.000.101SWITCH PUSH SPST-NO 10A 500V |
19 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 70°C |
