Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB16WSKG01-5D24-JDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
14 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

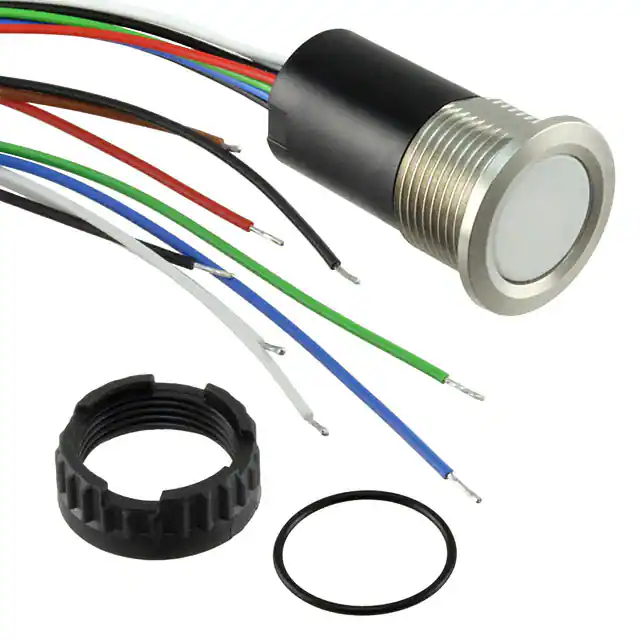

3-101-397SWITCH PUSH SPST-NO 100MA 42V |
17 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator, Finger Guide | Circular - 16.10mm Dia | -40°C ~ 60°C |
|
|
YB16WSKG01-5D12-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
10 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

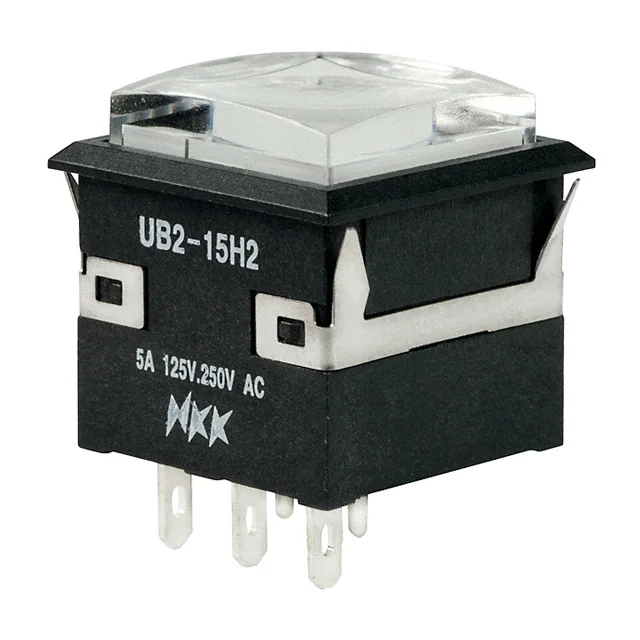

UB215KKW016B-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | Push-Pull | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
1.15.210.101/2201LUMOSTAST 16 PB ILLUMINABLE WHIT |
28 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | White | LED, White | 28 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
|
UB215KKW016G-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
A16-ABM-2SWITCH PUSHBUTTON DPDT 5A 125V |
67 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
WEC22H-1102ATS 22MM STAINLESS MOM ILL RGB WI |
89 |
|
Datasheet |
WEC22H | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 1.5A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.15mm Dia | -40°C ~ 85°C |
|
WEC22H-2102ATS 22MM STAINLESS MAINTAIN ILL R |
42 |
|
Datasheet |
WEC22H | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 1.5A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.15mm Dia | -40°C ~ 85°C |
|
ZAP-RSWITCH PUSHBUTTON SPDT 15A 125V |
13 |
|
Datasheet |
ZAP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 80°C |
|
PV9F2V0SS-331SWITCH PUSHBUTTON 4PST 2A 48V |
12 |
|
Datasheet |
PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|

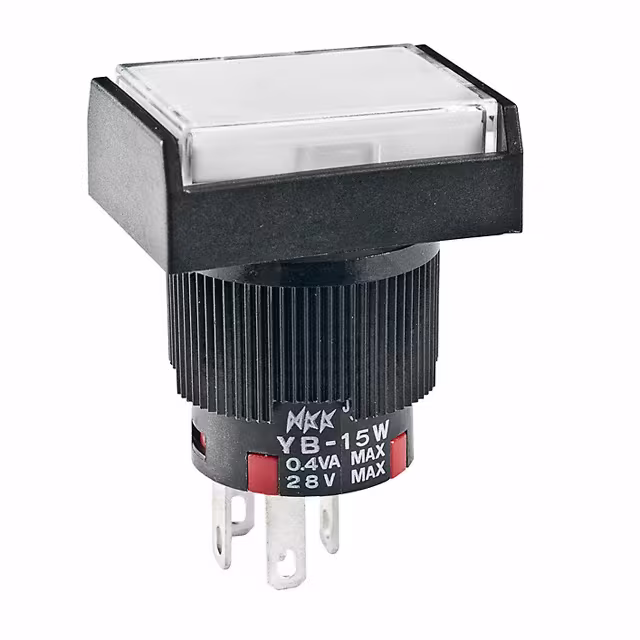

YB15WRKG01-6G-JBSWITCH PUSH SPDT 0.4VA 28V |
80 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
YB226CWSKW01SWITCH PUSHBUTTON DPDT 3A 125V |
45 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
|
VAQ-4G-LSWITCH PUSHBUTTON SPDT 15A 125V |
8 |
|
Datasheet |
VAQ | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC), 10A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
MAV0120/3D2BL024SWITCH PUSHBUTTON SPST-NO 2A 36V |
66 |
|
Datasheet |
MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
MAV0120/3D2GN024SWITCH PUSHBUTTON SPST-NO 2A 36V |
65 |
|
Datasheet |
MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
LB16RKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
14 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

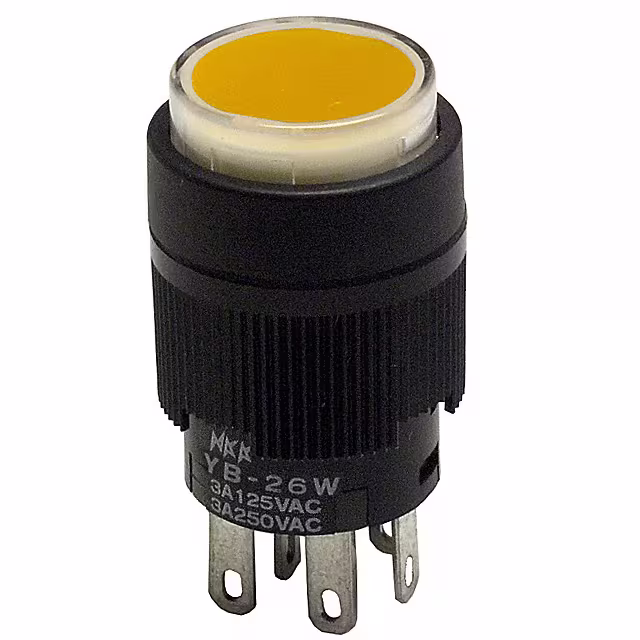

YB26WCKW01-5D-JDSWITCH PUSHBUTTON DPDT 3A 125V |
10 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
A165-ABM-2SWITCH PUSHBUTTON DPDT 5A 125V |
79 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
TS-211-RT11PUSH BUTTON SWITCHES, SINGLE POL |
63 |
|
Datasheet |
TS | Box | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 90°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
