Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH221NBSRGB24SWITCH PB DPST-NO/NC 2A 125V |
12 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
A3UL-TBU-3A2C-5M-SSWITCH PUSHBUTTON DPDT 0.1A 30V |
15 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
SW-PB7-03LB22CFRG12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
54 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Green | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
31-455.036SWITCH PB SPST-NO 0.1A 42V |
9 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
NX303FB1RTACTICAL PUSHBUTTON SC 3 CONTACT |
16 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
82-4153.1000SWITCH PUSHBUTTON SPDT 200MA 24V |
27 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|

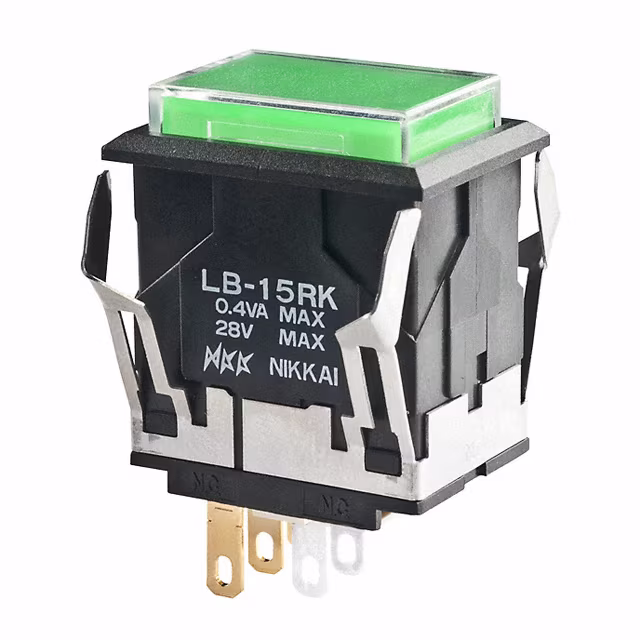

LB15RKG01-6F-JFSWITCH PUSH SPDT 0.4VA 28V |
67 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
NX304GB1B-61TACTICAL PUSHBUTTON SC 4 CONTACT |
11 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
IMR7P422SWITCH PUSHBUTTON SPDT 3A 28V |
48 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
82-6151.1123.B002SWITCH PUSHBUTTON SPDT 3A 240V |
39 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | Standby Symbol | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
SW-PB7-05B22FRHIGH CURRENT ANTI-VANDAL PUSHBUT |
38 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | - | -30°C ~ 85°C |
|
39-102SWITCH PUSH SPST-NO 0.15A 115V |
5 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (AC) | 115 V | - | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Overtravel | Circular - 8.61mm Dia | -40°C ~ 85°C |
|
|
DH251LBRRNSWITCH PB DPST-NO/NC 2A 125V |
12 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
3-126-722MSS 19 SWITCH LI CONNECTOR |
22 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 1.7, 2.6, 2.6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-723MSS 19 SWITCH LI CONNECTOR |
7 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 1.7, 2.6, 2.6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
YB15WSKG01-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
5 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB15SKW036FSWITCH PUSHBUTTON SPDT 5A 125V |
15 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
LB15RKW01-6F-JBSWITCH PUSHBUTTON SPDT 3A 125V |
31 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

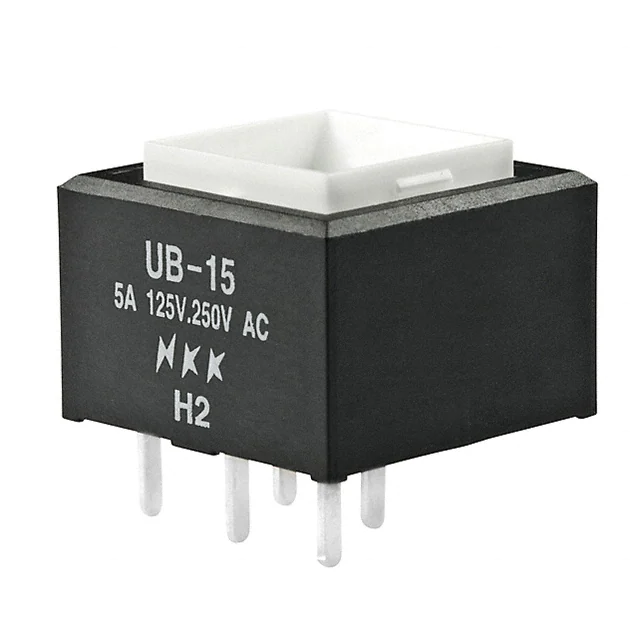

UB15SKW036BSWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
XB7NA81PUSH BUTTON, HARMONY XB7, PB, SP |
9 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
