Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AH1LBBB12SWITCH PB DPST-NO/NC 1A 125V |
9 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBG12SWITCH PB DPST-NO/NC 1A 125V |
6 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
YB15NKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
6 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
91801SWITCH MOM DPST |
71 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | DPST-NC | On-Mom | 10A (DC) | - | 12 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
PV7F2T0SS-325SWITCH PUSHBUTTON SPDT 2A 48V |
9 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV4F230SS-345SWITCH PUSHBUTTON SPDT 2A 24V |
13 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
WB12T-DCSWITCH PUSHBUTTON SPDT 6A 125V |
16 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|

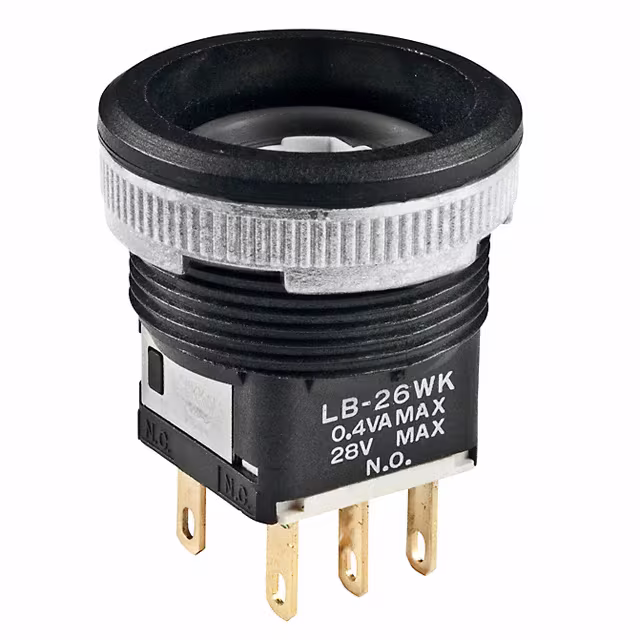

LB26WKG01SWITCH PUSH DPDT 0.4VA 28V |
50 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

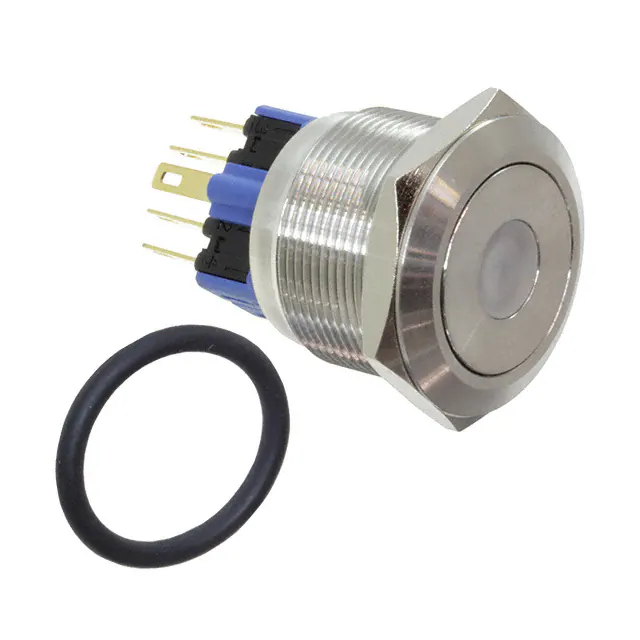

PV8F2Y1SS-235SWITCH PUSHBUTTON DPST 2A 48V |
39 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
A3AT-90B1-00GSWITCH PUSHBUTTON SPDT 3A 125V |
28 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
|
YB15RKW01-5C05-JCSPDT ON-(ON) RECTANGULAR BUSHING |
8 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
HB15SKW01-6G-JBSWITCH PUSH SPDT 0.1A 30V |
10 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
YB26SKW01-5F12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
15 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
DH221LBBRG24SWITCH PB DPST-NO/NC 2A 125V |
19 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
82-4151.1000.B001SWITCH PB SPDT 3A 240V |
32 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
82-4151.2000.B001SWITCH PB SPDT 3A 240V |
28 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
PV7F2T0SS-314SWITCH PUSHBUTTON SPDT 2A 48V |
14 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
82-4151.1000.B002SWITCH PB SPDT 3A 240V |
11 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
DH251LGSB12SWITCH PB DPST-NO/NC 2A 125V |
15 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | Standby Symbol | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
82-6151.2113.B002SWITCH PB SPDT 3A 240V |
11 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
