Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18-247.035SWITCH PB SPST-NO 0.1A 42V |
13 |
|
Datasheet |
18 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
DH251NBBBNSWITCH PB DPST-NO/NC 2A 125V |
13 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
19-471.035SWITCH PB SPST-NO 0.1A 50V |
14 |
|
Datasheet |
19 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC) | 50 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
|
YB15CKG01-6G-GBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
14 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
P16OAR1KGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
23 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
82-6151.2000SWITCH PUSHBUTTON SPDT 3A 240V |
6 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
LB26SKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
23 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

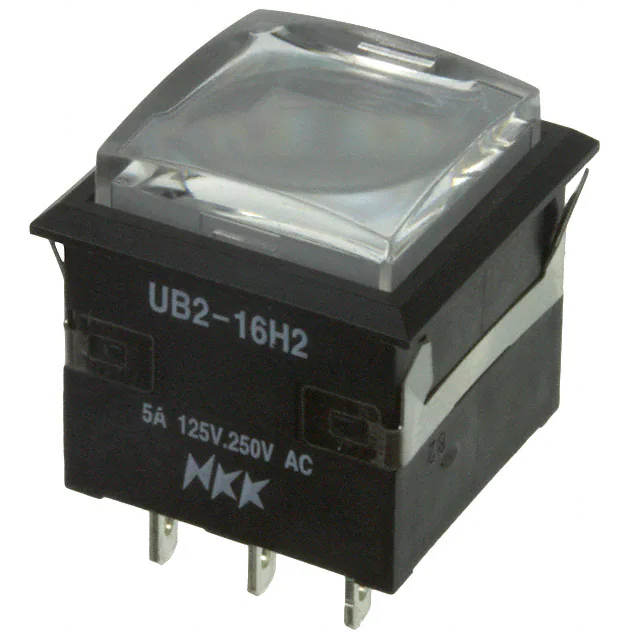

UB216KKW016CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
17 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

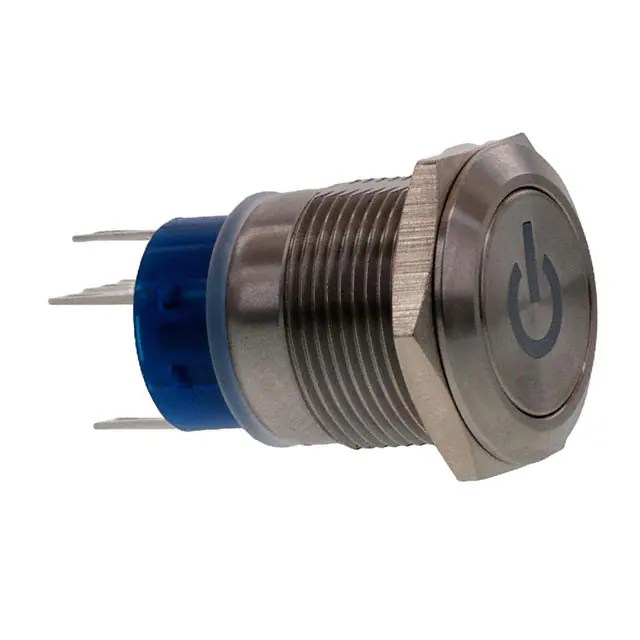

AV1911PA12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
37 |
|
Datasheet |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
82-4153.2124SWITCH PUSHBUTTON SPDT 200MA 24V |
19 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
LB26CKW01-5F-JFSWITCH PUSHBUTTON DPDT 3A 125V |
22 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
82-4153.1113SWITCH PUSHBUTTON SPDT 200MA 24V |
20 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
W76-9450/439088GSWITCH PUSHBUTTON 10A 250V |
49 |
|
Datasheet |
W76-94 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC) | 250 V | - | Round, Button, Domed | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
DH221NBSOB24SWITCH PB DPST-NO/NC 2A 125V |
38 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
AVH19LSFP3241604SWITCH PUSHBUTTON SPDT 16A 125V |
100 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
|
PV7F2Y0SS-345-M03SWITCH PB DPST-NO/NC 2A 48V |
59 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
AVH19LSFE17241604SWITCH PUSHBUTTON SPDT 16A 125V |
100 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
PV4F2B0SS-301SWITCH PUSHBUTTON SPDT 2A 24V |
32 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
19-279.015SWITCH PB SPST-NO 0.8A 50V |
9 |
|
Datasheet |
19 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 800mA (AC) | 50 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
XB6ECW4B1PILLUMINATED MONOLITHIC PUSH BUTT |
46 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
