Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

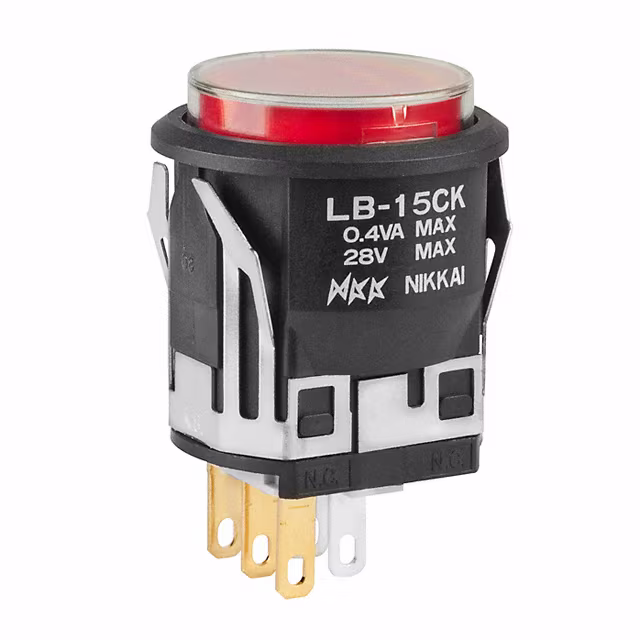

LB15CKG01-5C-JCSWITCH PUSH SPDT 0.4VA 28V |
19 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
AV1920P324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
92 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920P624Q04SWITCH PUSHBUTTON DPDT 3A 250V |
82 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1921P612Q04SWITCH PUSHBUTTON DPDT 3A 250V |
44 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

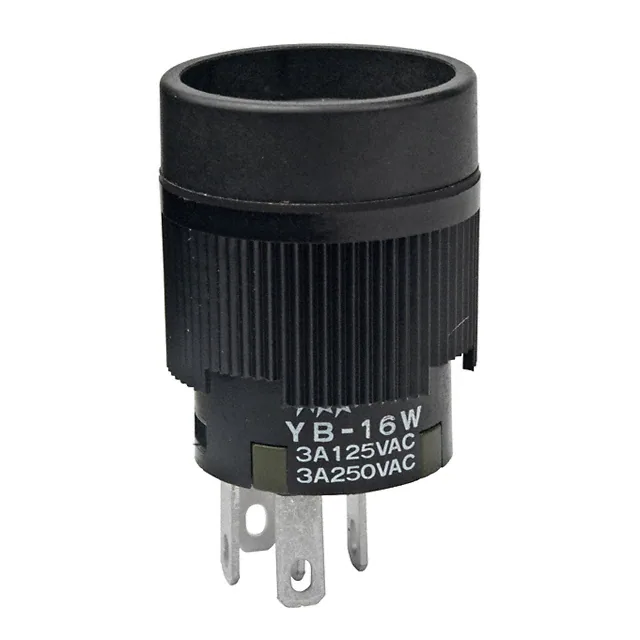

YB16WCKW01SWITCH PUSHBUTTON SPDT 3A 125V |
70 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB15SKG01-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
14 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
82-5153.2000SWITCH PUSHBUTTON SPDT 200MA 24V |
7 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
AV1920E724Q04SWITCH PUSHBUTTON DPDT 3A 250V |
100 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1921P324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
97 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
W48M-A13W05PBS 19MM SPST 0.1A 48V MOM METAL |
70 |
|
Datasheet |
W48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 250mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, White | 3.3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
AH1NBSW24SWITCH PB DPST-NO/NC 1A 125V |
14 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
LB25WKW01SWITCH PUSHBUTTON DPDT 3A 125V |
6 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
LB16SKW01-5D-JDSWITCH PUSHBUTTON SPDT 3A 125V |
16 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
LB16CKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
23 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
LB16SKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
48 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
LB16SKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
17 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
ISR3Z1AD600SWITCH PUSH SPST-NO 0.4A 32V |
96 |
|
Datasheet |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
LB15CKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
17 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
82-4153.2134SWITCH PUSHBUTTON SPDT 200MA 24V |
10 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
ULV7FWGSS341SWITCH PB DPDT 3A 250V |
21 |
|
Datasheet |
ULV7 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
