Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV1910E112Q04SWITCH PUSHBUTTON SPDT 3A 250V |
90 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1910P624Q04SWITCH PUSHBUTTON SPDT 3A 250V |
83 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1921E312Q04SWITCH PUSHBUTTON DPDT 3A 250V |
82 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

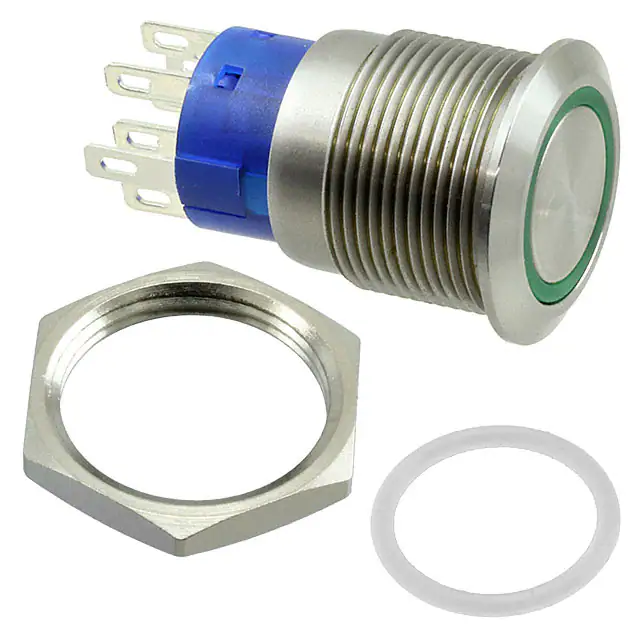

AV1921E612Q04SWITCH PUSHBUTTON DPDT 3A 250V |
80 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1921E624Q04SWITCH PUSHBUTTON DPDT 3A 250V |
52 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920E312Q04SWITCH PUSHBUTTON DPDT 3A 250V |
46 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1911E112Q04SWITCH PUSHBUTTON SPDT 3A 250V |
34 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1911R124Q04SWITCH PUSHBUTTON SPDT 3A 250V |
21 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920E624Q04SWITCH PUSHBUTTON DPDT 3A 250V |
15 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1921E324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
11 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
1241.2821SWITCH PUSH SPST-NO 125MA 48V |
66 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|

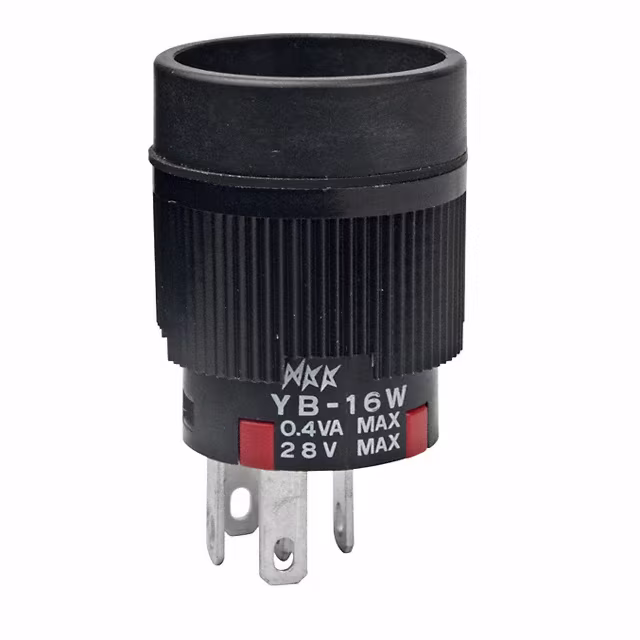

YB16WCKG01SWITCH PUSH SPDT 0.4VA 28V |
6 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

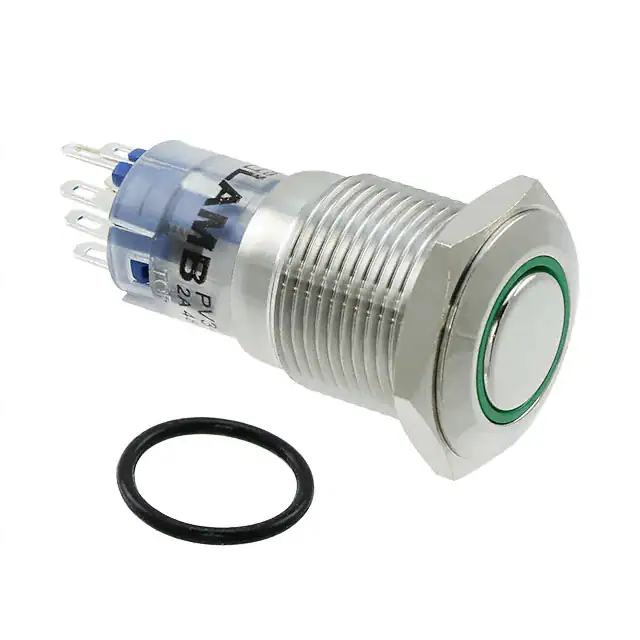

PV3F2H0SS-335SWITCH PUSHBUTTON DPDT 2A 48V |
88 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV3F2H0SS-315SWITCH PUSHBUTTON DPDT 2A 48V |
48 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
170SWITCH PUSH SPST-NC 15A 125V |
50 |
|
Datasheet |
170 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
IBR3SAD900SWITCH PUSH SPST-NO 0.4A 32V |
83 |
|
Datasheet |
IB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Orange | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
82-4551.1114SWITCH PB SPDT 3A 240V |
6 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
DHU301NAUXZBSWITCH PB SPDT 16A 125V |
42 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
AV2221000Q04SWITCH PUSHBUTTON DPDT 3A 250V |
30 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
PV4H230NNSWITCH PUSHBUTTON SPDT 2A 24V |
75 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
