Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP0115ANAKG03CF-1SJBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
KP0115ACBKG03CF-3SJBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
1.15108.2530000SWITCH PUSH 6PST 4A 250V |
0 |
|
- |
LUMOTAST 75 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | 6PST-3NO/3NC | On-Mom, Off-Mom | 4A (AC), 200mA (DC) | 250 V | 230 V | Square, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
1.15112.1010000SWITCH PUSH SPST-NO 2A 250V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (AC) | 250 V | - | Round, Button | No Marking | - | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 20.30mm Dia | -25°C ~ 85°C |
|
1.15114.0061505SWITCH PUSH SPST-NO 0.1A 42V |
0 |
|
Datasheet |
LUMOTAST FK | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 16.10mm Dia | -25°C ~ 70°C |
|
1.15150.5560000SWITCH PUSH SPST-NO 0.1A 35V |
0 |
|
Datasheet |
LUMOTAST 25 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Square, Button, Flush | No Marking | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 16.10mm Dia | -25°C ~ 55°C |
|
1.15150.6060000SWITCH PUSH SPST-NO 0.1A 35V |
0 |
|
Datasheet |
LUMOTAST 25 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Square, Button | No Marking | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 16.10mm Dia | -25°C ~ 55°C |
|

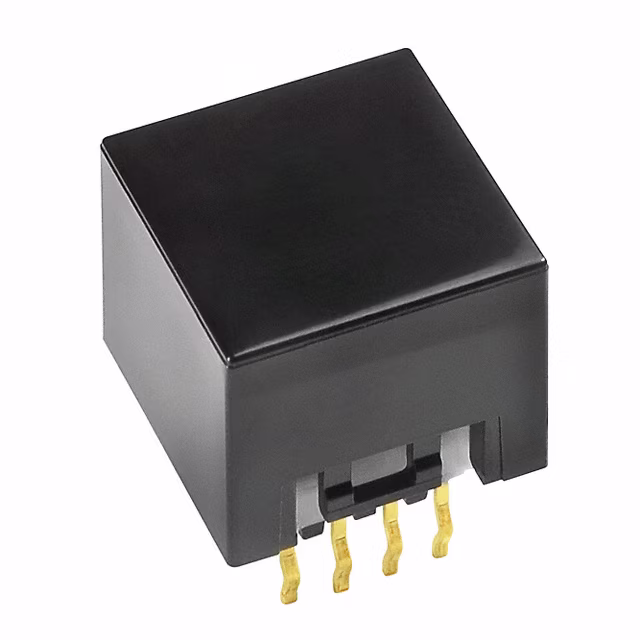

NP0115AG03NN-ASWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
KB15RKG01B-5D12-JDSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
LB15CKW01-28-BJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKW01-28-BJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

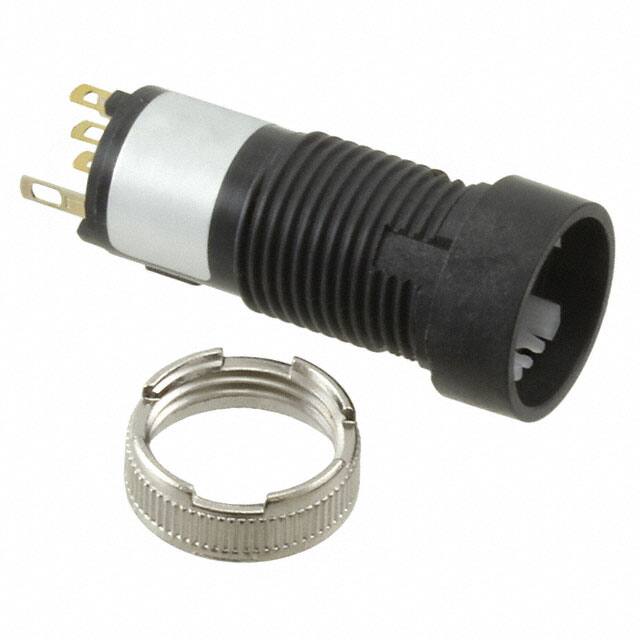

KB15CKG01SWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15CKG01-5C24-JCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

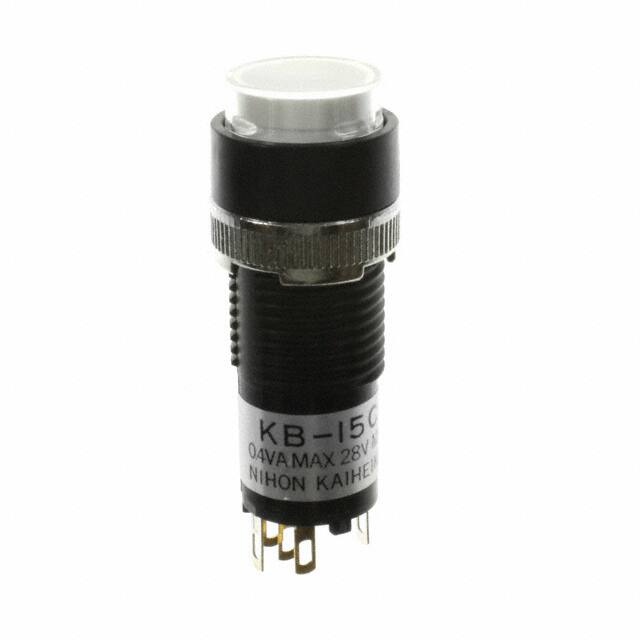

KB15CKG01-5C-JCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-5F05-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-5F24-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-6F-JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-6G-JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-BBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15CKW01-01-JESWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | Neon, Yellow | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
