Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL2285OAF200SWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
TL2285 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
2VAQ-4BSWITCH PUSH 2XSPDT 15A 125V |
0 |
|
Datasheet |
VAQ | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 15A (AC), 10A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
|
2VAQ-4RSWITCH PUSH 2XSPDT 15A 125V |
0 |
|
Datasheet |
VAQ | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 15A (AC), 10A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
|
2VAQ-4YSWITCH PUSH 2XSPDT 15A 125V |
0 |
|
Datasheet |
VAQ | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 15A (AC), 10A (DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
|
65081K206XSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
65000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | - | 3A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
H103PCXSWITCH PUSH SPDT 0.25A 28V |
0 |
|
- |
H-100PC | Bulk | Active | Panel Mount, Rear | Standard | SPDT | - | 250mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | Circular - 15.87mm Dia | - |
|
|
H103XSWITCH PUSH SPDT 0.25A 28V |
0 |
|
- |
H-100 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | - | 250mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 15.87mm Dia | - |
|
|
KB15CKG01-ASWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB25SKW01-5F12-JFSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26SKG01-5D05-JDSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
E112SYWKESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
E010 | Tray | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

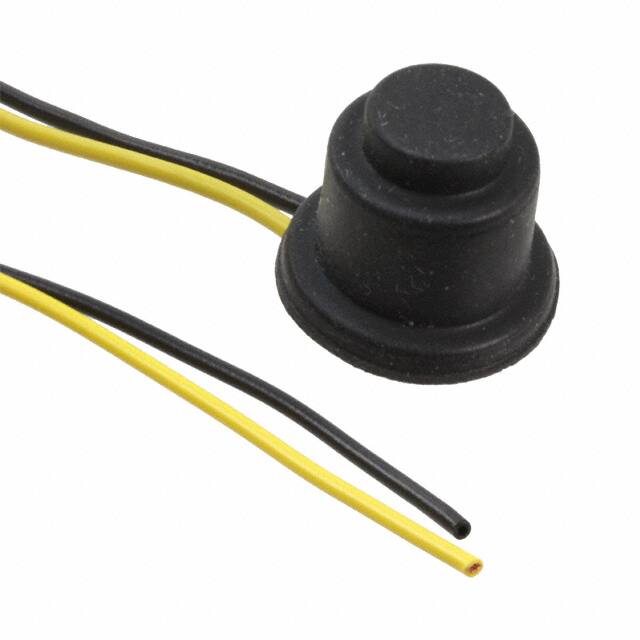

ESM K12 1 5N C L130SWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
Datasheet |
ESM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|

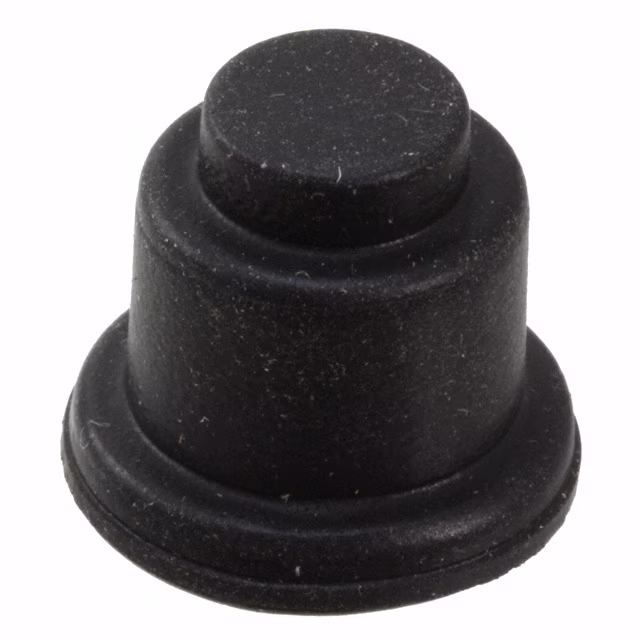

ESM K12 1 5N CSWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
Datasheet |
ESM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Rubber Cap | No Marking | Black | - | - | SMD (SMT) Tab | IP65 - Dust Tight, Water Resistant | - | - | - |
|
ESM K12 1 5N N L130SWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
Datasheet |
ESM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
DSM K12 1 5N C L130SWITCH PUSH DPST-NO 0.1A 30V |
0 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
DSM K12 1 5N C L130 PU POSWITCH PUSH DPST-NO 0.1A 30V |
0 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
DSM K12G 1.5 3.5N C L130 PL PRSWITCH PUSH DPST-NO 0.1A 30V |
0 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
DSM K12G 1.5 3.5N C L130 PO PUSWITCH PUSH DPST-NO 0.1A 30V |
0 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
DSM K12G 1.5 3.5N C L130SWITCH PUSH DPST-NO 0.1A 30V |
0 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
KB15SKG01-5C05-JCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
