Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30143033PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143003PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30143034PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142898PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142974PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142999PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SB22020LH01PUSHBUTTON,MOMENTARY,EXT,CLR,NON |
0 |
|
Datasheet |
3SB2 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 110 V | 24 V | Round, Button | - | Clear | - | - | Quick Connect | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
3SB22020LF01PUSHBUTTON,MOMENTARY,EXT,BLU,NON |
0 |
|
Datasheet |
3SB2 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 110 V | 24 V | Round, Button | - | Blue | - | - | Quick Connect | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
3SB22020LD01PUSHBUTTON,MOMENTARY,EXT,YLW,NON |
0 |
|
Datasheet |
3SB2 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 110 V | 24 V | Round, Button | - | Yellow | - | - | Quick Connect | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
3SB22020LB01PUSHBUTTON,MOMENTARY,EXT,BLK,NON |
0 |
|
Datasheet |
3SB2 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 110 V | 24 V | Round, Button | - | Black | - | - | Quick Connect | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
AV021003C200PUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
|
IRR8Z222L0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IR | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 2A (AC), 4A (DC) | 250 V | 48 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
A6X30142917PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142880PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

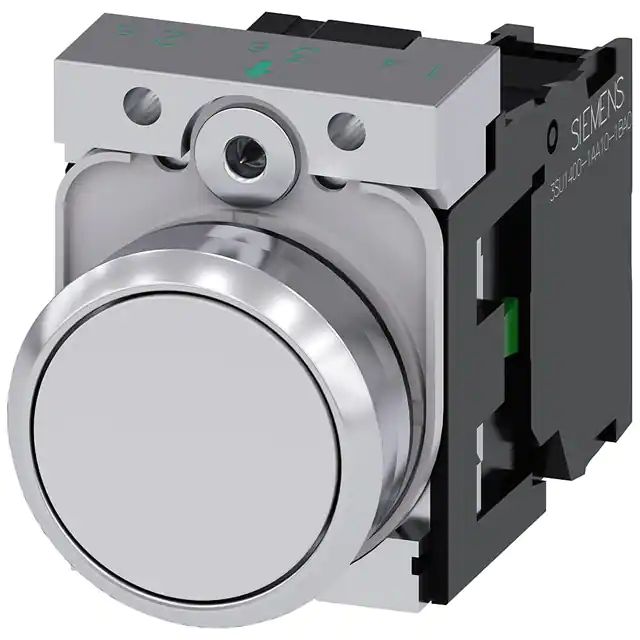

A6X30143016PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11000AB501FA0PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143051PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142912PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
XB5FL4322HARMONY XB5, ANTIMICROBIAL PUSH |
0 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
FPDR1D1422B2201PUSHBUTTON SWITCH |
0 |
|
- |
FP | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | Off-On | 200mA (DC) | - | 12 V | Round, Button | - | Black | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
