Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA1L-A1C28V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 120 VAC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C63-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C23V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C22V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 6 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C64-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C28V-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | 120 VAC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C64-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Yellow | LED, Yellow | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
A6X30142897PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

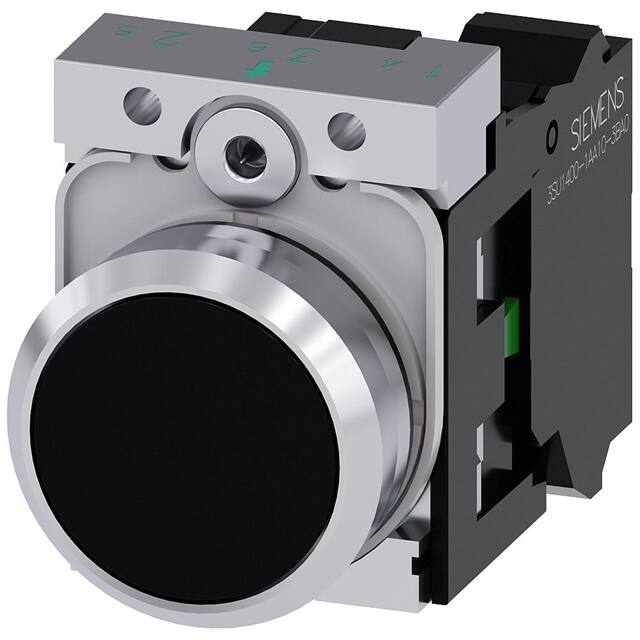

A6X30142893PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

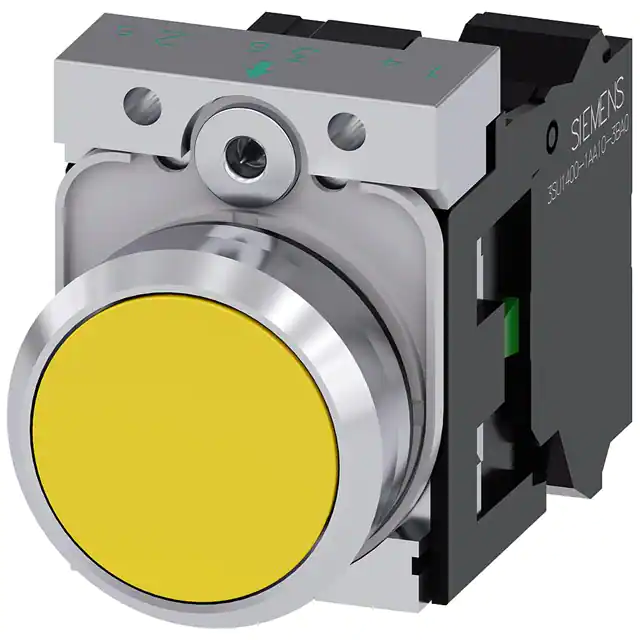

A6X30142949PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142892PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142895PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
