Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB6ML-A1T24VWLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | White | LED, White | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB6ML-A1T21VWLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | White | LED, White | 5 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB8ML-A1T64WLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button, Flush | - | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB8ML-A1T63WLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button, Flush | - | White | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB6ML-A1T24WLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB7ML-A1T23WLB 16MM ILLUMINATED PB DPDT W |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | White | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB26SKG01/CUL-5F24-JBSTANDARD SIZE PANEL SEAL PUSHBUT |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

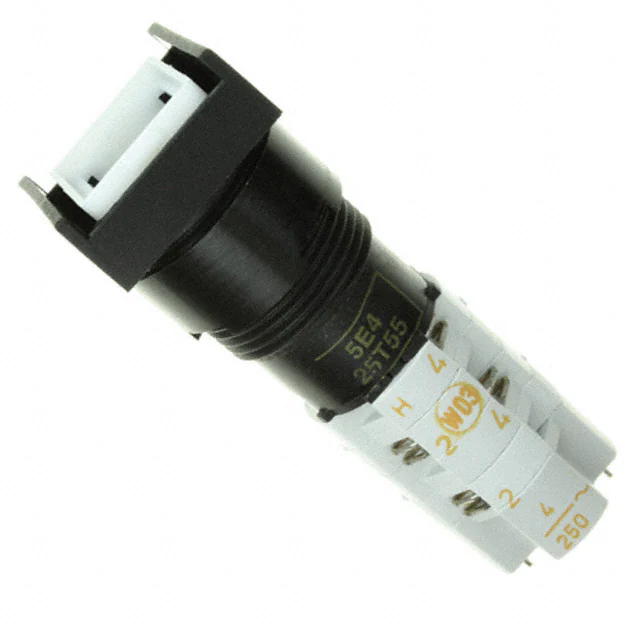

1.15.108.252/0000SWITCH PUSH 4PST 4A 250V |
0 |
|
- |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 4A (AC), 200mA (DC) | 250 V | 230 V | Square, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|

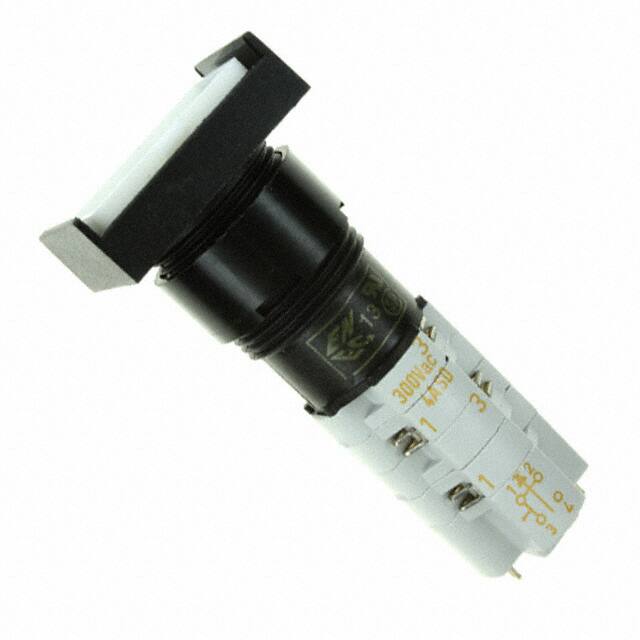

1.15.108.052/0000SWITCH PUSH 4PST 4A 250V |
0 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 4A (AC), 200mA (DC) | 250 V | 230 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
|
LB16RKW01-5C05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16RKW01-5C24-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LASEEV31HYELYELSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Yellow | LED, Yellow | 6 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 25.50mm Dia | -20°C ~ 55°C |
|
|
HA1L-A1C57-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Amber | Incandescent, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C57-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | White | Incandescent, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C57-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Green | Incandescent, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
XB4FA11FLUSH PB WH 1NO |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
30-32 RED-EWSWITCH PUSH SPST-NC 1A 115V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Off | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Wire Leads | - | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
D16EES13HYELYELSwitches |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | - | Yellow | LED, Yellow | 6 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
LB15CKG01-5C05-JCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
UB216KKG016GSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
