Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7B-M1T1VYLBW FLUSH PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-M1T1WLBW FLUSH PB MOME. WHITE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-M1T1YLBW FLUSH PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-M1T5SLBW FLUSH PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-M1T5WLBW FLUSH PB MOME. WHITE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-M1T5YLBW FLUSH PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|

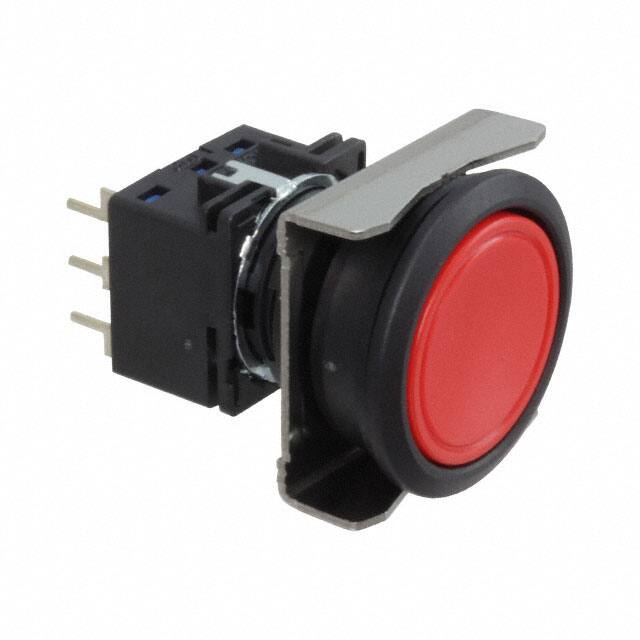

LBW6B-M1T1VRLBW FLUSH PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6B-M1T5GLBW FLUSH PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
LBW6B-M1T5RLBW FLUSH PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
YB26WCKW01-1F24-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Last Time Buy | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26CKW01-5D24-JDSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26CKW01-5F12-JBSWITCH PB INCAND LED |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | - | Clear (White Filter/Diffuser) | LED, Green | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

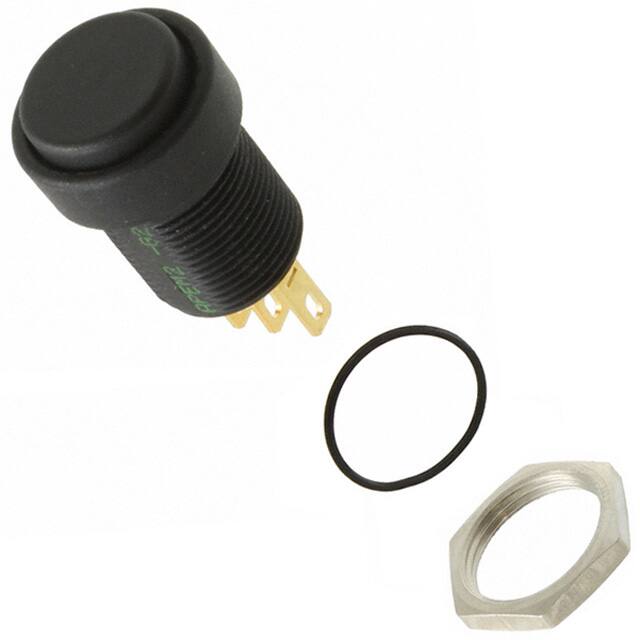

IMP7Z422234SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
UB226KKW016CF/CUL-4JCF14LOW PROFILE PUSHBUTTON, ALTERNAT |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | - | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB226KKW016CF-4JCF11LOW PROFILE PUSHBUTTON |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | - | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
8442WCDBSWITCH PUSH DPDT 0.4VA 20V |
0 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
1241.6697.1122000SWITCH PUSHBUTTON SPDT 5A 125V |
4 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 85°C |
|
|
64112225SWITCH PUSH BUTTON |
0 |
|
- |
641 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 5A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Wire Leads | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
HW2L-M1F10Q-G-W/OLAMPSQ/FL FV |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Green | LED, Green | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F10Q-A-W/OLAMPSQ/FL FV |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Amber | LED, Amber | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
