Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16-3POFF-OV-4SWITCH PUSH BUTTON |
0 |
|
- |
16-3P | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
16-3APON-4SWITCH PUSH BUTTON |
0 |
|
- |
16-3P | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | Wire Leads | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
ULV4FP3SS245SWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Wire Leads with Connector | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

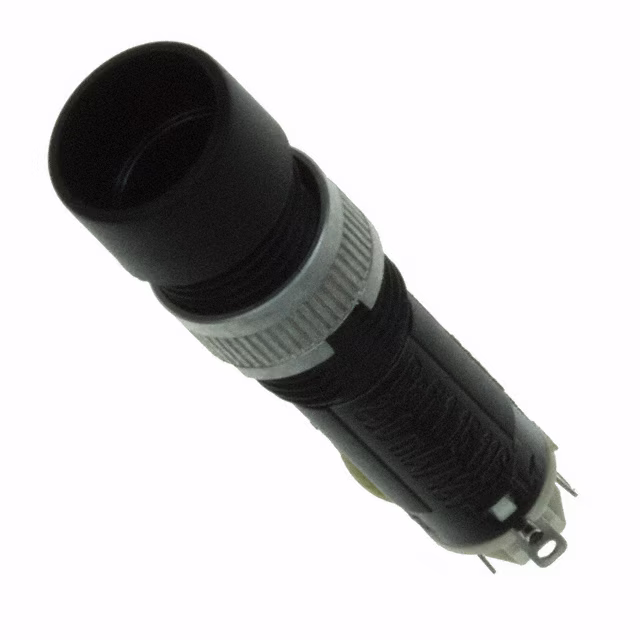

1.15116.0010000SWITCH PUSH SPST-NO 0.25A 42V |
0 |
|
- |
8mm | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 250mA (AC/DC) | 42 V | 42 V | Round, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.10mm Dia | -25°C ~ 70°C |
|
|
LB15CKG01/USWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
AP2E200SWBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Bag | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
MBN15SS2W30-BABRACKET PC MOUNT MINIATURE PUSHB |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ULV7F2G11314SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
ULV7F2GSS311SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
PVA6LRPW12G1SWITCH PB SPST 2A 36V |
0 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button | - | Clear | LED, Green/Red | 3, 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
AP4C300TWBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DHU251NABXZBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Black | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -40°C ~ 85°C |
|
|
ISR3SAD400SWITCH PUSH SPST-NO 0.4A 32V |
0 |
|
Datasheet |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Gray | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
EB2061P-A-J23ACFSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.25 VDC | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
ULV8F23SS333SWITCH PB SPDT 3A 250V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
ULV7F23SS331SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
SW-PB7-03LB32DFRW24VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | - | Silver | LED, White | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 55°C |
|
|
SW-PB7-03LB32DFRW12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | - | Silver | LED, White | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 55°C |
|
|
SW-PB7-03LB32DFRR6VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | - | Silver | LED, Red | 6 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 55°C |
|
|
SW-PB7-03LB32DFRB24VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button | - | Silver | LED, Blue | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 55°C |
