Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW1B-M110-W22MM PUSHBUTTON WHITE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBNF25JW01SNAP-ACTION BUSHING MOUNT PUSHBU |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN25SS2W13BRACKET PC MOUNT MINIATURE PUSHB |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SB1W02LARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Quick Connect - 0.062" (1.5mm) | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN12SB1W02-DALARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Quick Connect - 0.062" (1.5mm) | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS2W45BRACKET PC MOUNT MINIATURE PUSHB |
0 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | - |
|
|
PV3WG2H017Switches |
0 |
|
Datasheet |
PV3 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Full Guard | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PV3WG2H011Switches |
0 |
|
Datasheet |
PV3 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Full Guard | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PV3WG2H019Switches |
0 |
|
Datasheet |
PV3 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Full Guard | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PV3WG2H018Switches |
0 |
|
Datasheet |
PV3 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Full Guard | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
3-145-560SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-368SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-367SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-276SWITCH PUSHBUTTON |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-561SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-365SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-145-366SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

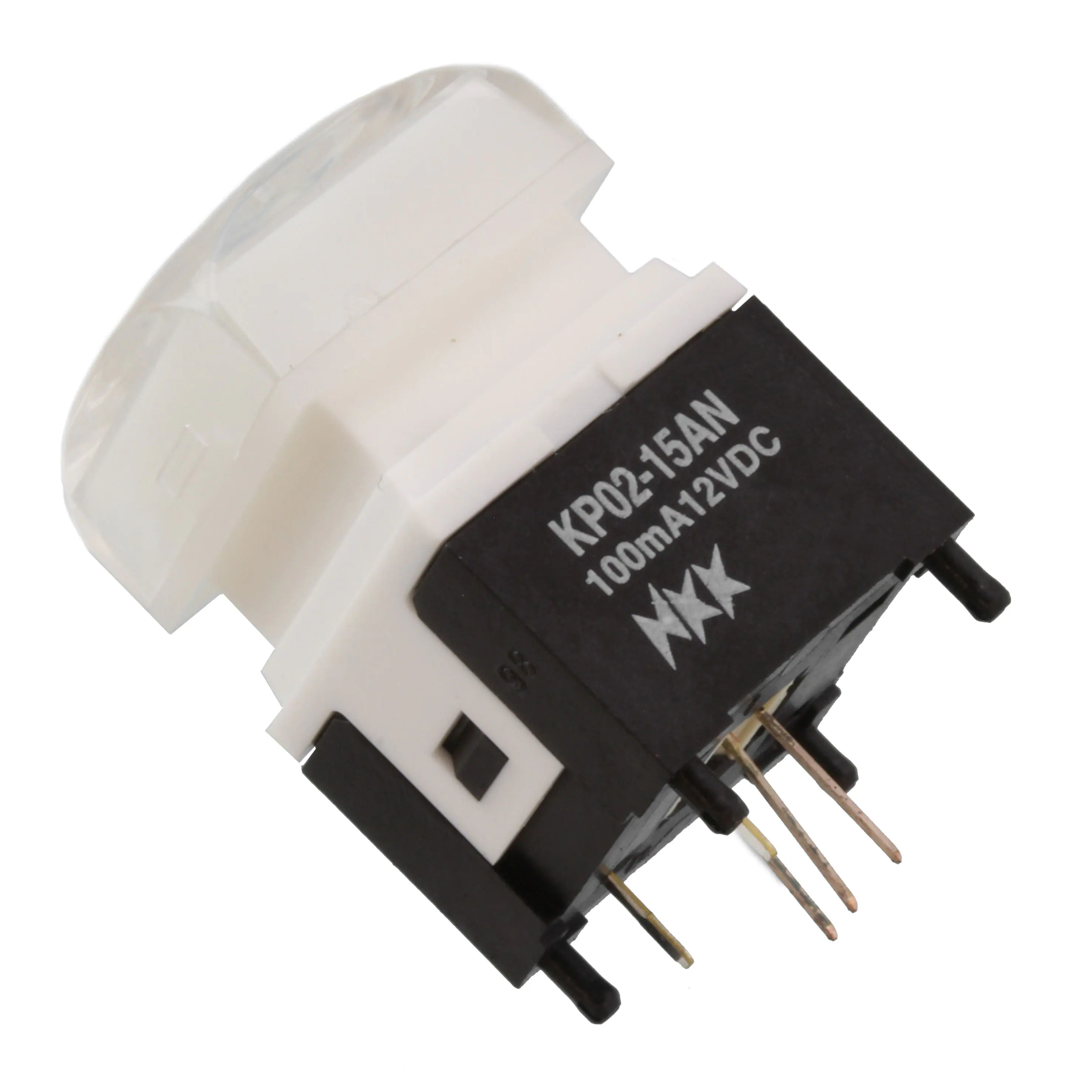

KP0215ANBKG036CF-2TJBSWITCH PUSH SPST-NO 0.1A 12V |
10 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

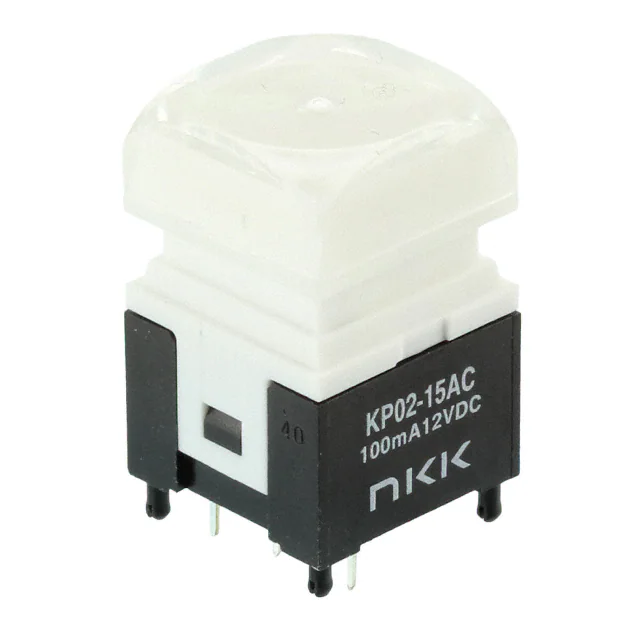

KP0215ACBKG036CF-2TJBSWITCH PUSH SPST-NO 0.1A 12V |
6 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
ULV7F2GSS607SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | 220 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
