PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD280-1130-15/16PTC RESET FUSE 14V 12A BLADE |
977 |
|
Datasheet |
Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 12 A | 20 A | 100 A | 8 s | 5 mOhms | 7 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 0.262" (6.65mm) | - | - |
|
YM120D370N100PTC RESET FUSE 265V 314MA RADIAL |
1,348 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 314 mA | 444 mA | 2.7 A | - | - | - | 10 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.571" Dia x 0.177" T (14.50mm x 4.50mm) | 0.669" (17.00mm) | - | 0.200" (5.08mm) |
|
TSM600-400F-2PTC RESET FUSE 250V 400MA 4SMD |
240 |
|
Datasheet |
4-SMD | PolySwitch®, TSM | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 400 mA | 1 A | 60 A | 14 s | 500 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.451" (11.45mm) | - |
|
SMD1210B050TFPTC RESET FUSE 13.2V 500MA 1210 |
2,590 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 100 A | 50 ms | 250 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
0ZCK0110FF2EPTC RESET FUSE |
6,000 |
|
Datasheet |
0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 200 ms | 50 mOhms | 200 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
|
SMD1210B110TFTPTC RESET FUSE 8V 1.1A 1210 |
19,469 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
SMD1812B110TFPTC RESET FUSE 8V 1.1A 1812 |
2,387 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.079" (2.00mm) | - |
|
PTS18128V160PTC RESET FUSE 8V 1.6A 1812 |
1,850 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
SMD1812B150TF/12PTC RESET FUSE 12V 1.5A 1812 |
10,305 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
|
PTS181213V075PTC RESET FUSE 13.2V 750MA 1812 |
1,940 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
|
PTS18128V110PTC RESET FUSE 8V 1.1A 1812 |
1,888 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
|
PTS181212V150PTC RESET FUSE 12V 1.5A 1812 |
4,021 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
PTS181216V110PTC RESET FUSE 16V 1.1A 1812 |
3,577 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
PTS18128V200PTC RESET FUSE 8V 2A 1812 |
3,050 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
RUSBF155PTC RESET FUSE 6V 1.55A RADIAL |
3,868 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 6V | 1.55 A | 2.65 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
PFMF.150.2PTC RESET FUSE 6V 1.5A 1812 |
1,264 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

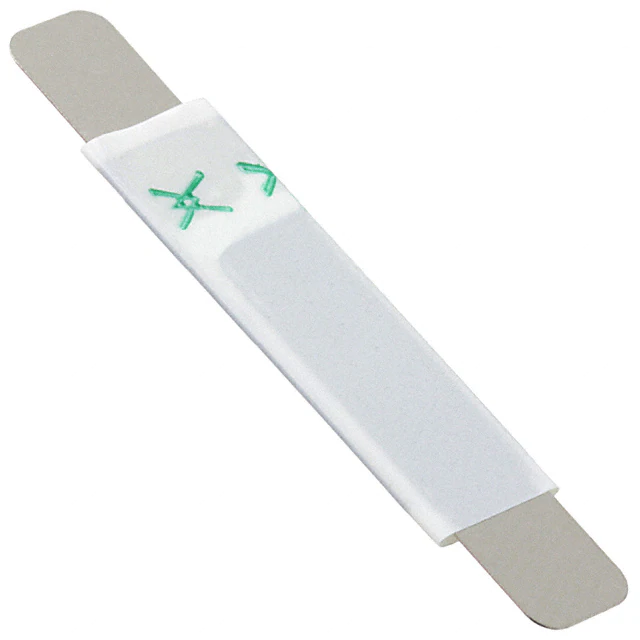

VTP240FPTC RESET FUSE 16V 2.4A STRAP |
6,000 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.4 A | 5.9 A | 100 A | 5 s | 14 mOhms | 52 mOhms | - | - | - | - | - | User Defined | 0.984" L x 0.201" W (25.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
RXEF030S-2PTC RESET FUSE 72V 300MA RADIAL |
5,693 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
PTR060V0017-BKPTC RESET FUSE 60V 170MA RADIAL |
1,595 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
PTSA080515V012PTC RESET FUSE 120MA 15V 0805 |
1,232 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSA0805 | Tape & Reel (TR) | Active | - | 15V | 120 mA | 300 mA | 20 A | 500 ms | 400 mOhms | 9 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.089" L x 0.059" W (2.25mm x 1.50mm) | - | 0.039" (1.00mm) | - |
