PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

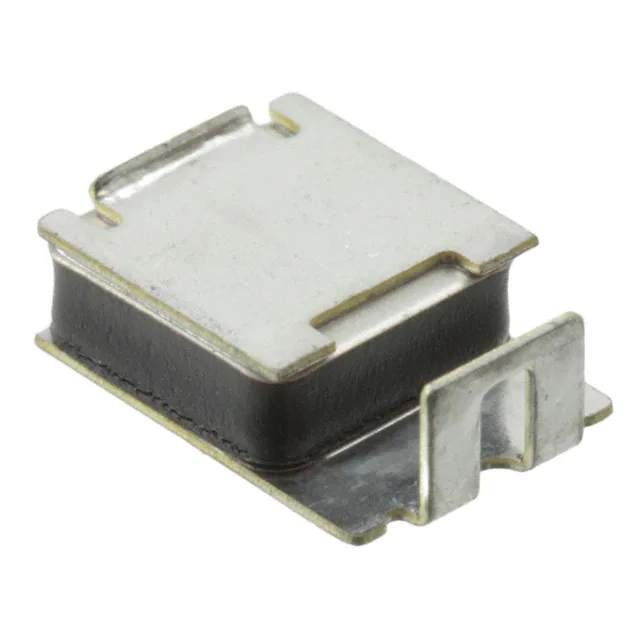

TS250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
7,437 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2.5 s | 6.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
RUEF900KPTC RESET FUSE 30V 9A RADIAL |
232 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.220" (31.00mm) | - | 0.400" (10.15mm) |
|
RHEF1000PTC RESET FUSE 16V 10A RADIAL |
385 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
TRF600-160-2PTC RESET FUSE 250V 160MA RADIAL |
126 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.200" (5.08mm) |
|
TS250-130F-RB-2PTC RESET FUSE 60V 130MA 2SMD |
7,150 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 1.5 s | 9 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
B59886C0120A051PTC RESET FUSE 550V 12MA RADIAL |
1,259 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 550V | 12 mA | 24 mA | 100 mA | - | - | - | 1.5 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
.jpg)
|
MF-PSML175/12-2PTC RESET FUSE 12V 1.75A 0805 |
4,922 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 1.75 A | 3.5 A | 50 A | 1 s | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.028" (0.70mm) | - |
|
PTCCL11H701DBEPTC RESET FUSE 30V 700MA RADIAL |
697 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 700 mA | 1.05 A | 8 A | - | - | - | 1.3 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.606" (15.40mm) | - | 0.197" (5.00mm) |
|
|
PTCCL11H251HBEPTC RESET FUSE 265V 250MA RADIAL |
253 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 250 mA | 375 mA | 1.5 A | - | - | - | 12 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.217" T (10.50mm x 5.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
LVR100K-240PTC RESET FUSE |
135 |
|
Datasheet |
Radial, Disc | LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | 334 mOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia (18.70mm) | 1.134" (28.80mm) | - | 0.400" (10.15mm) |
|
B59870C0080A070PTC RESET FUSE 265V 60MA RADIAL |
15,410 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 60 mA | 130 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H281HBEPTC RESET FUSE 265V 280MA RADIAL |
801 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 280 mA | 420 mA | 1.8 A | - | - | - | 11 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.217" T (12.50mm x 5.50mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
PTCCL13H921DBEPTC RESET FUSE 30V 920MA RADIAL |
732 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 920 mA | 1.38 A | 11 A | - | - | - | 900 mOhms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.157" T (12.50mm x 4.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
TRF600-400PTC RESET FUSE 60V 400MA RADIAL |
287 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 60V (600V Int) | 400 mA | 1 A | 60 A | 10 s | 950 mOhms | 1.9 Ohms | - | 0°C ~ 85°C | - | - | - | Through Hole | 0.583" L x 0.181" W (14.80mm x 4.60mm) | 0.516" (13.10mm) | - | 0.200" (5.08mm) |
|
CMF-SDP50-2PTC RESET FUSE 230V 90MA 4SMD |
1,858 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 2.5 A | 130 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.433" L x 0.354" W (11.00mm x 9.00mm) | - | 0.453" (11.50mm) | - |
|
60R135XMRPTC RESET FUSE 60V 1.35A RADIAL |
1,998 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.122" T (13.58mm x 3.10mm) | 0.780" (19.80mm) | - | 0.201" (5.10mm) |
|
|
MF-PSML250/12-2PTC RESET FUSE 12V 2.5A 0805 |
2,851 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2.5 A | 5 A | 50 A | 2 s | 3 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
RXEF375-1PTC RESET FUSE 72V 3.75A RADIAL |
157 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.071" Dia x 0.118" T (27.20mm x 3.00mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
PTSLR18126V260PTC RESET FUSE 6V 2.6A 1812 |
5,707 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSLR1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 6 A | 50 A | 2 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
B59950C0130A070PTC RESET FUSE 80V 320MA RADIAL |
997 |
|
Datasheet |
Radial, Disc | B59950 | Bulk | Active | Ceramic | 80V | 320 mA | 500 mA | 4.3 A | - | - | - | 4.9 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
