PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59850C0160A070PTC RESET FUSE 160V 250MA RADIAL |
119 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 160V | 250 mA | 500 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59870C0120A051PTC RESET FUSE 265V 100MA RADIAL |
10,321 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59873C0120A051PTC RESET FUSE 265V 70MA RADIAL |
4,000 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RHEF1400PTC RESET FUSE 16V 14A RADIAL |
148 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 14 A | 27 A | 100 A | 13 s | 3 mOhms | 9 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
16R1000GMRPTC RESET FUSE 16V 10A RADIAL |
3,776 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.201" (5.10mm) |
|
72R185XMRPTC RESET FUSE 72V 1.85A RADIAL |
644 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.122" T (16.76mm x 3.10mm) | 0.906" (23.00mm) | - | 0.201" (5.10mm) |
|
MF-RHT1300-0PTC RESET FUSE 16V 13A RADIAL |
3,089 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.215" (5.45mm) |
|
1206L260SLTHYRPTC RESET FUSE 6V 2.6A 1206 |
10,811 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|

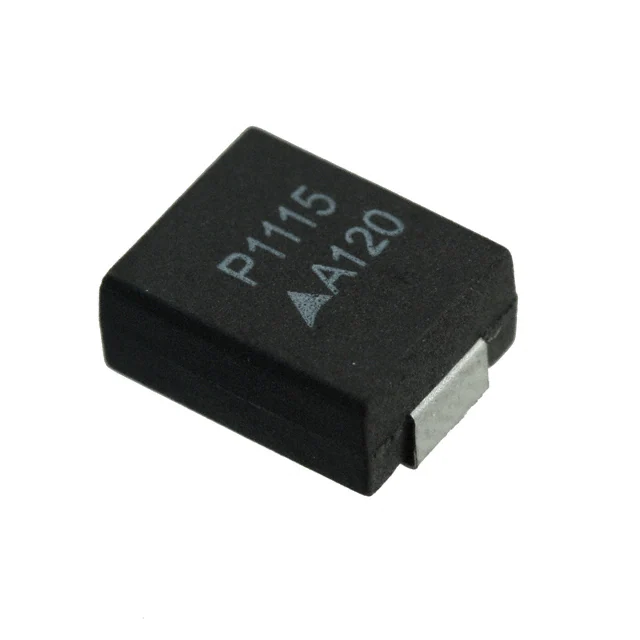

B59115P1120A062PTC RESET FUSE 80V 70MA 3225 |
1,900 |
|
Datasheet |
3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 70 mA | 145 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
60R250XMRPTC RESET FUSE 60V 2.5A RADIAL |
2,438 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.122" T (19.93mm x 3.10mm) | 1.032" (26.20mm) | - | 0.402" (10.20mm) |
|
YQS5838PTFPTC RESET FUSE 18V 140MA RADIAL |
1,565 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 18V | 140 mA | 290 mA | - | - | - | - | 10 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.90mm) | - | 0.197" (5.00mm) |
|
B59945C0160A070PTC RESET FUSE 20V 1.5A RADIAL |
2,440 |
|
Datasheet |
Radial, Disc | B59945 | Bulk | Active | Ceramic | 20V | 1.5 A | 3.05 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59945C0120A070PTC RESET FUSE 30V 1.3A RADIAL |
1,335 |
|
Datasheet |
Radial, Disc | B59945 | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
1812L350SLPRPTC RESET FUSE 6V 3.5A 1812 |
6,169 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 8.1 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
1210L550SLWRPTC RESET FUSE 5.5A 6V 1210 |
1,926 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 5.5 A | 11 A | 50 A | 2 s | 1 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
B59840C0080A070PTC RESET FUSE 265V 170MA RADIAL |
304 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 170 mA | 350 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
YQS5868PTFPTC RESET FUSE 120V 80MA RADIAL |
1,338 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 120V | 80 mA | 170 mA | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.532" Dia x 0.201" T (13.50mm x 5.10mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
YS5675PTC RESET FUSE 75V 60MA RADIAL |
1,472 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 75V | 60 mA | 190 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.270" Dia x 0.170" T (6.86mm x 4.32mm) | 0.270" (6.86mm) | - | 0.250" (6.35mm) |
|
0805L260SLTHYRPTC RESET FUSE 6V 2.6A 0805 |
1,995 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 35 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
|
B59830C0130A070PTC RESET FUSE 265V 450MA RADIAL |
986 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 450 mA | 680 mA | 4.1 A | - | - | - | 5 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
