| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

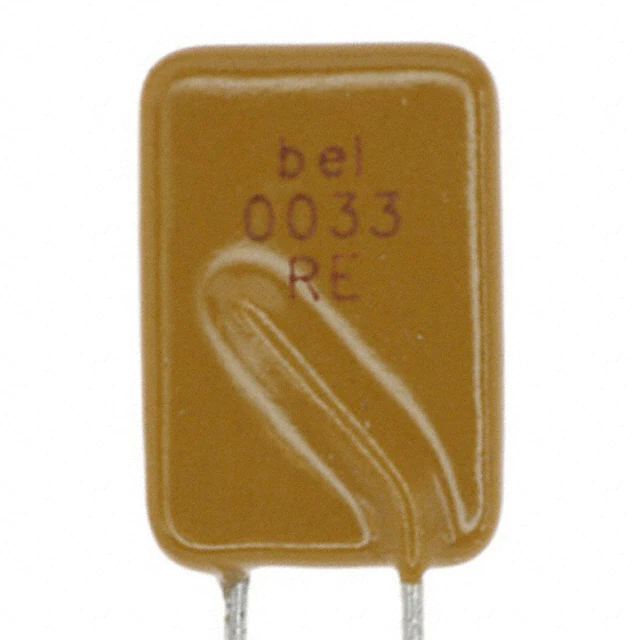

0ZRE0033FF1APTC RESET FUSE 240V 330MA RADIAL |
1,932 |
|
Datasheet |
Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 330 mA | 740 mA | 6 A | 21 s | 830 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.650" (16.50mm) | - | 0.201" (5.10mm) |
|
RGEF500PTC RESET FUSE 16V 5A RADIAL |
1,901 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
,-Concave.jpg)
|
0ZCN0075FF2APTC RESET FUSE 60V 750MA 2016 |
49,904 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 100 A | 500 ms | 130 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.067" (1.70mm) | - |
|
RKEF250PTC RESET FUSE 60V 2.5A RADIAL |
20,648 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" L x 0.150" W (13.00mm x 3.81mm) | 0.740" (18.80mm) | - | 0.200" (5.08mm) |
|
|
0ZCN0030FF2CPTC RESET FUSE 60V 300MA 2016 |
8,239 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 100 A | 3 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.045" (1.15mm) | - |
|
2920L075DRPTC RESET FUSE 30V 750MA 2920 |
6,995 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 40 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RHEF050-2PTC RESET FUSE 30V 500MA RADIAL |
5,631 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
SRP175FPTC RESET FUSE 15V 1.75A STRAP |
2,649 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
LVR008NSPTC RESET FUSE 240V 80MA RADIAL |
2,256 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.402" (10.20mm) | - | 0.200" (5.08mm) |
|
|
LVR008NKPTC RESET FUSE 240V 80MA RADIAL |
2,210 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.488" (12.40mm) | - | 0.200" (5.08mm) |
|
SMD125F-2PTC RESET FUSE 15V 1.25A 2SMD |
34,570 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|

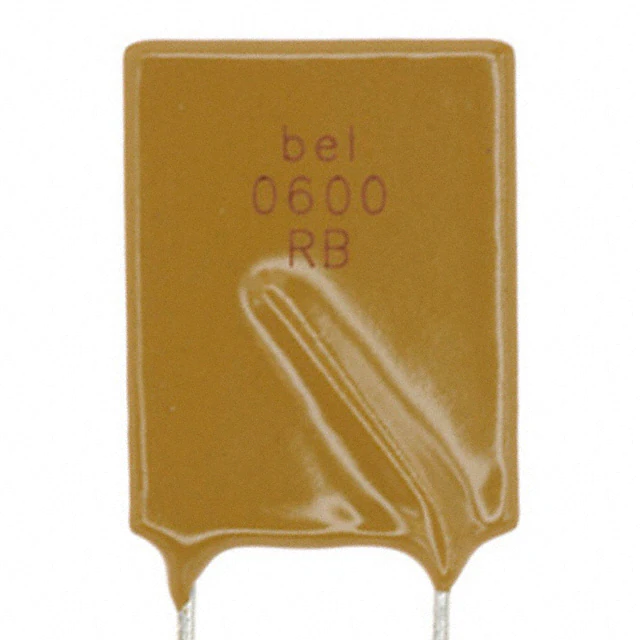

0ZRB0600FF1APTC RESET FUSE 30V 6A RADIAL |
15,831 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
CMF-RL10-0PTC RESET FUSE 220V 150MA RADIAL |
9,658 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 150 mA | 300 mA | 3 A | 450 ms | - | - | 10 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.374" L x 0.177" W (9.50mm x 4.50mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
MF-RX250/72-0PTC RESET FUSE 72V 2.5A RADIAL |
7,992 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
MF-R600PTC RESET FUSE 30V 6A RADIAL |
6,498 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
|
MF-USMF075-2PTC RESET FUSE 6V 750MA 1210 |
5,649 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 100 ms | 70 mOhms | 450 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
MF-MSMF125-2PTC RESET FUSE 6V 1.25A 1812 |
2,545 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 35 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
SMD300F/15-2PTC RESET FUSE 15V 3A 2SMD |
14,992 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 6 A | 40 A | 35 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
2920L125PRPTC RESET FUSE 15V 1.25A 2920 |
9,566 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 40 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RGEF600PTC RESET FUSE 16V 6A RADIAL |
4,232 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
