PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R400-2-14PTC RESET FUSE 30V 4A RADIAL |
26,393 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
MF-RX185/72-2PTC RESET FUSE 72V 1.85A RADIAL |
14,479 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
LVR040SPTC RESET FUSE 240V 400MA RADIAL |
12,471 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.768" (19.50mm) | - | 0.200" (5.08mm) |
|
1812L110/24DRPTC RESET FUSE 24V 1.1A 1812 |
4,960 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 1.95 A | 20 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.042" (1.07mm) | - |
|
NANOASMDCH016F-2PTC RESET FUSE 30V 160MA 1206 |
3,485 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 20 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.062" W (3.20mm x 1.58mm) | - | 0.045" (1.14mm) | - |
|
1206L200PRPTC RESET FUSE 6V 2A 1206 |
1,837 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 3.5 A | 100 A | 1.5 s | 18 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
30R090UPRPTC RESET FUSE 30V 900MA RADIAL |
5,863 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|

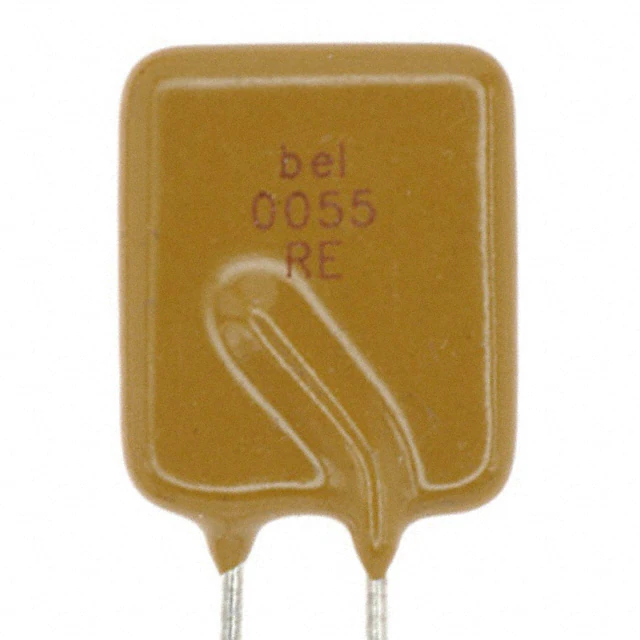

0ZRE0055FF1APTC RESET FUSE 240V 550MA RADIAL |
4,990 |
|
Datasheet |
Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
LVR005NKPTC RESET FUSE 240V 50MA RADIAL |
2,829 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) | 0.476" (12.10mm) | - | 0.200" (5.08mm) |
|
MF-R500PTC RESET FUSE 30V 5A RADIAL |
1,595 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|

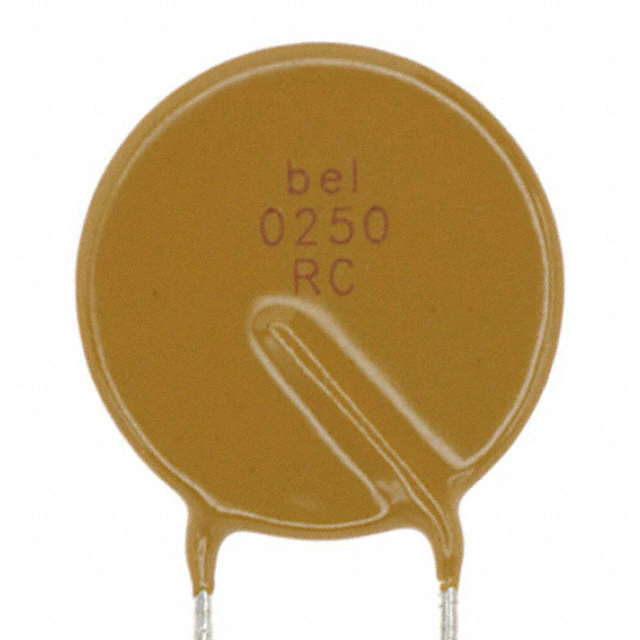

0ZRC0250FF1APTC RESET FUSE 90V 2.5A RADIAL |
1,254 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
SMD150F-2PTC RESET FUSE 15V 1.5A 2SMD |
103,075 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 40 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
,-Concave.jpg)
|
0ZCF0260AF2CPTC RESET FUSE 24V 2.6A 2920 |
39,271 |
|
Datasheet |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5.2 A | 100 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.067" (1.70mm) | - |
|
|
1206L005/60WR-APTC RESET FUSE 60V 50MA 1206 |
18,124 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
RGEF300-2PTC RESET FUSE 16V 3A RADIAL |
2,387 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.433" (11.00mm) | - | 0.199" (5.05mm) |
|
|
1812L075/24DRPTC RESET FUSE 24V 750MA 1812 |
10,845 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
AHEF300PTC RESET FUSE 32V 3A RADIAL |
9,394 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 3 A | 6 A | 100 A | 5 s | 35 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.80mm) | 0.610" (15.50mm) | - | 0.200" (5.08mm) |
|
|
MF-R500-2PTC RESET FUSE 30V 5A RADIAL |
8,926 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
SMD030F-2018-2PTC RESET FUSE 60V 300MA 2SMD |
8,914 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 800 mA | 20 A | 1.5 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.070" (1.78mm) | - |
|

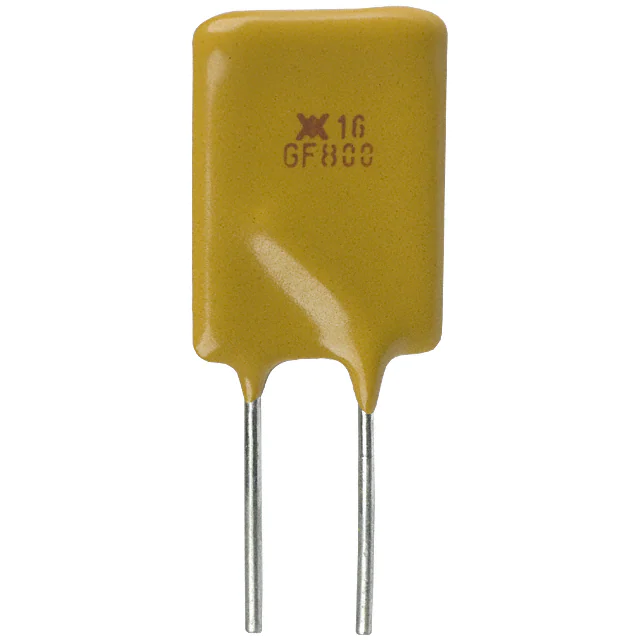

RGEF800PTC RESET FUSE 16V 8A RADIAL |
3,927 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
