PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTSLR06038V100PTC RESET FUSE 1A 8V 0603 |
5,131 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 8V | 1 A | 2 A | 25 A | 2 s | 30 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
MINIASMDC050F-2PTC RESET FUSE 24V 500MA 1812 |
4,943 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
RUEF110-2PTC RESET FUSE 30V 1.1A RADIAL |
4,391 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 100 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
RKEF075PTC RESET FUSE 60V 750MA RADIAL |
2,967 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 1.5 s | 200 mOhms | 640 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.310" L x 0.140" W (7.87mm x 3.56mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|

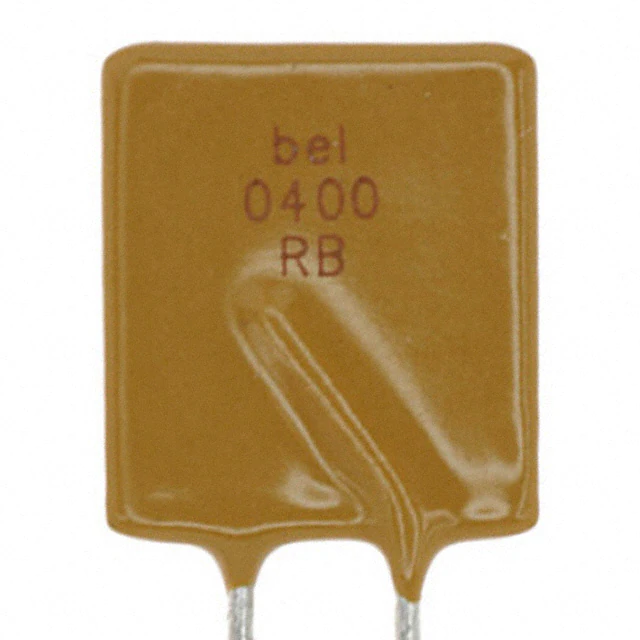

0ZRB0400FF1APTC RESET FUSE 30V 4A RADIAL |
2,270 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
MF-RM005/240-2PTC RESET FUSE 240V 50MA RADIAL |
12,719 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
;RA.JPG)
|
PRG21AR420MB1RAPTC RESET FUSE 20V 54MA 0805 |
9,991 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 54 mA | 100 mA | 590 mA | - | - | - | 42 Ohms | -10°C ~ 60°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
|
1210L110THYRPTC RESET FUSE 8V 1.1A 1210 |
5,787 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.71mm) | - |
|
|
MINIASMDC014F-2PTC RESET FUSE 60V 140MA 1812 |
5,483 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 60V | 140 mA | 280 mA | 10 A | 8 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.89mm) | - |
|
MF-R160-2PTC RESET FUSE 30V 1.6A RADIAL |
5,087 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 55 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
MF-R185-2PTC RESET FUSE 30V 1.85A RADIAL |
4,684 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|
MINISMDC125F/16-2PTC RESET FUSE 16V 1.25A 1812 |
3,308 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.019" (0.48mm) | - |
|

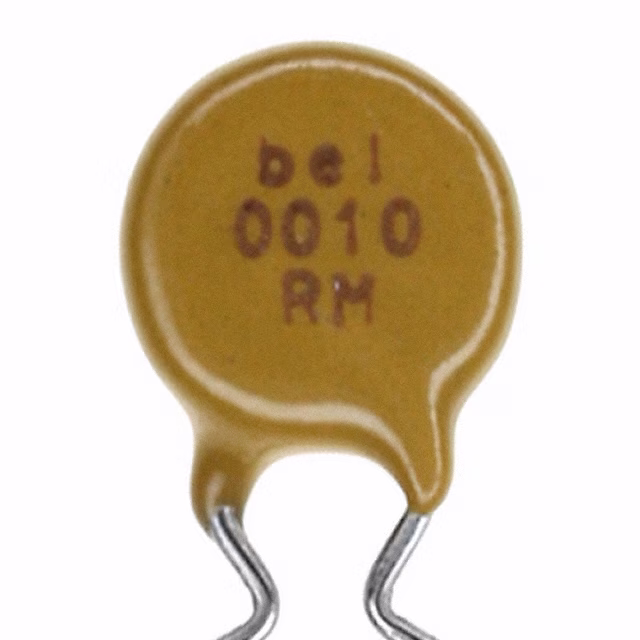

0ZRM0010FF1EPTC RESET FUSE 120V 100MA RADIAL |
3,098 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 100 mA | 200 mA | 2 A | 10 s | 3 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

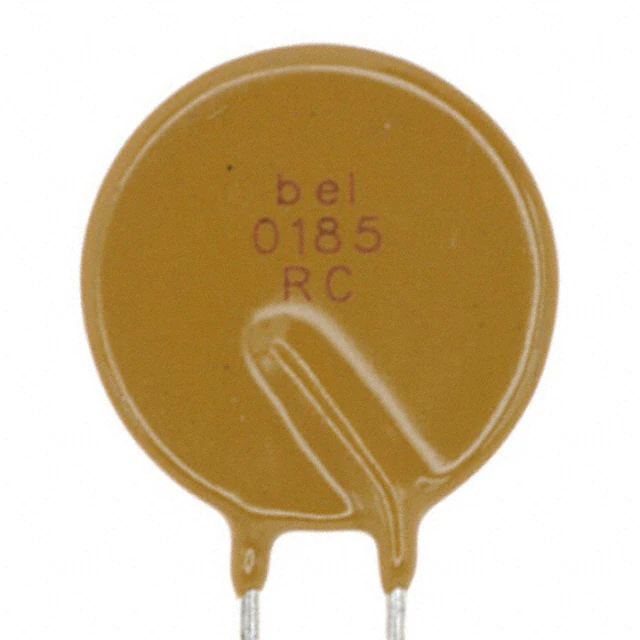

0ZRC0185FF1APTC RESET FUSE 90V 1.85A RADIAL |
2,405 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
MF-MSMF050/30X-2PTC RESETTABLE 0.5A 30V SMD 1812 |
1,597 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 1 A | 40 A | 200 ms | 150 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
MINISMDC150F/12-2PTC RESET FUSE 12V 1.5A 1812 |
16,472 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 2.8 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.019" (0.48mm) | - |
|
MICROSMD150F-2PTC RESET FUSE 6V 1.5A 1210 |
7,723 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 40 A | 1 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.048" (1.22mm) | - |
|
|
1210L150THWRPTC RESET FUSE 6V 1.5A 1210 |
5,347 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.042" (1.07mm) | - |
|
0ZRP0250FF1APTC RESET FUSE 60V 2.5A RADIAL |
41,365 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.142" W (14.00mm x 3.60mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
, Concave.jpg)
|
FEMTOSMDC010F-2PTC RESET FUSE 12V 100MA 0603 |
31,479 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMD | Tape & Reel (TR) | Active | Polymeric | 12V | 100 mA | 250 mA | 40 A | 100 ms | 1.7 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
