Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC15AFHSENSOR 15PSIA 0.15" .09V |
0 |
|
Datasheet |
CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPC15AHSENSOR 15PSIA .09V |
0 |
|
Datasheet |
CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL04DFCSENSOR 0.15PSID 0.16" .025V |
0 |
|
Datasheet |
CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL04GFCSENSOR 0.15PSIG 0.15" .025V |
0 |
|
Datasheet |
CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL10DFCSENSOR 0.36PSID 0.16" .02V |
0 |
|
Datasheet |
CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPCL10GFCSENSOR 0.36PSIG 0.15" .02V |
0 |
|
Datasheet |
CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPX15AFSENSOR 15PSIA 0.15" .253V |
0 |
|
Datasheet |
CPX | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 253 mV (5V) | ±2% | 3V ~ 12V | Male - 0.15" (3.8mm) Tube | Barbed | - | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

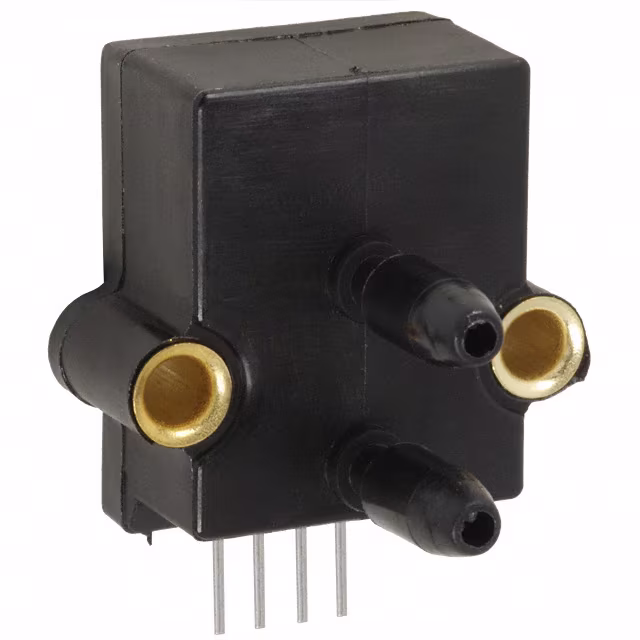

DC001NDC4SENSOR 0.04PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DC002NDC4SENSOR 0.07PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DC005NDC4SENSOR 0.18PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DC010NDC4SENSOR 0.36PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DC030NDC4SENSOR 1.08PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 16.26PSI (112.13kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DC2R5BDC4SENSOR 0.04PSID 0.19" 4.25V |
0 |
|
Datasheet |
DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DCXL01DSSENSOR 0.04PSID 0.19" .01V |
0 |
|
- |
DCXL-DS | 6-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DCXL05DSSENSOR 0.18PSID 0.19" .02V |
0 |
|
- |
DCXL-DS | 6-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DCXL10DSSENSOR 0.36PSID 0.19" .02V |
0 |
|
- |
DCXL-DS | 6-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DCXL30DSSENSOR 1.08PSID 0.19" .02V |
0 |
|
- |
DCXL-DS | 6-SIP Module | Tube | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DUXL01DSENSOR 0.04PSID 0.08" .006V |
0 |
|
- |
DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 6 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DUXL05DSENSOR 0.18PSID 0.08" .0225V |
0 |
|
- |
DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 22.5 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DUXL10DSENSOR 0.36PSID 0.08" .03V |
0 |
|
- |
DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
