Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86-030G-CSENSOR PRESSURE 40PSIG STEEL |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-050G-CSENSOR 50PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-100G-CSENSOR 100PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

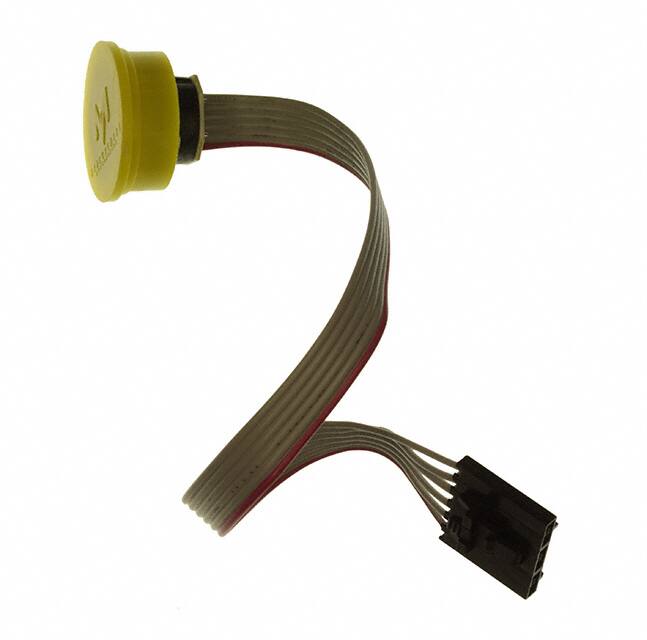

86-500G-CSENSOR 500PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
86-500A-CSENSOR 500PSIA RIBBON W/CONN |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
82-030G-CSENSOR 30PSIG RIBBON W/CONN |
0 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | - | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PCB | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
82-300G-CSENSOR 300PSIG RIBBON W/CONN |
0 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | - | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PCB | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
82-015A-CSENSOR 15PSIA RIBBON W/CONN |
0 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | - | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PCB | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

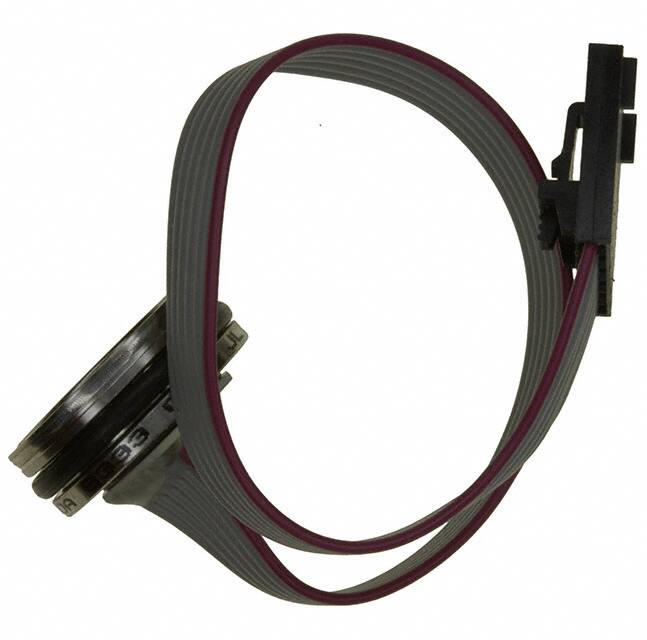

82-100A-CSENSOR 100PSIA 0.1V |
0 |
|
Datasheet |
- | - | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-300A-CSENSOR 300PSIA 0.1V |
0 |
|
Datasheet |
- | - | Tube | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-050A-CSENSOR 50PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
83276-B00000400-01PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4 INCH-G-HGRADE-MINISENSOR 0.15PSIG .025V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±0.5% | 16V | - | No Port | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4426-015ASENSOR 15PSIA 0.13" .09V |
0 |
|
Datasheet |
4426 | 6-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.15% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NPI-19J-101GHSENSOR 14.5PSIG 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-201GHSENSOR 29.01PSIG 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-701GHSENSOR 101.53PSIG 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-172GHSENSOR 246.56PSIG 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 246.56PSI (1700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
HSCSAAN010MGAA5SENSOR 0.15PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.79PSI (67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDLNN001ND2A5SENSOR 0.04PSID 0.1" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
