Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83302-00000700-05PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASDXRRX005ND7A5SENSOR 0.18PSID 0.09" 12BIT |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | ±0.18PSI (±1.25kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±0.36PSI (±2.48kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
ASDXRRX005NDAA5SENSOR 0.18PSID 0.09" 4.5V |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±0.36PSI (±2.48kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
86-050A-USENSOR 50PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Obsolete | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
ADP5271SENSOR 145.04PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-SMD Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 217.56PSI (1500kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
|
ADP5251SENSOR 29.01PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
ADP5260SENSOR 72.52PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 72.52PSI (500kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
|
ADP5261SENSOR 72.52PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 72.52PSI (500kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
ASDX015D44RSENSOR 15PSID 0.09" 4.5V |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
24PCCFS2G48SENSOR 15PSIG .225V |
0 |
|
- |
24PC | 4-DIP Module | Bulk | Active | - | Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 2.5V ~ 12V | - | No Port | - | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
83278-B00000200-21PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XPCL10DCSENSOR 0.36PSID .02V |
0 |
|
Datasheet |
XPCL | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC15GTCSENSOR 15PSIG 0.19" .09V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC15GFHSENSOR 15PSIG 0.19" .09V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC05DHSENSOR 5PSID .06V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 3V ~ 16V | - | Barbed | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC05DFHSENSOR 5PSID 0.19" .06V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

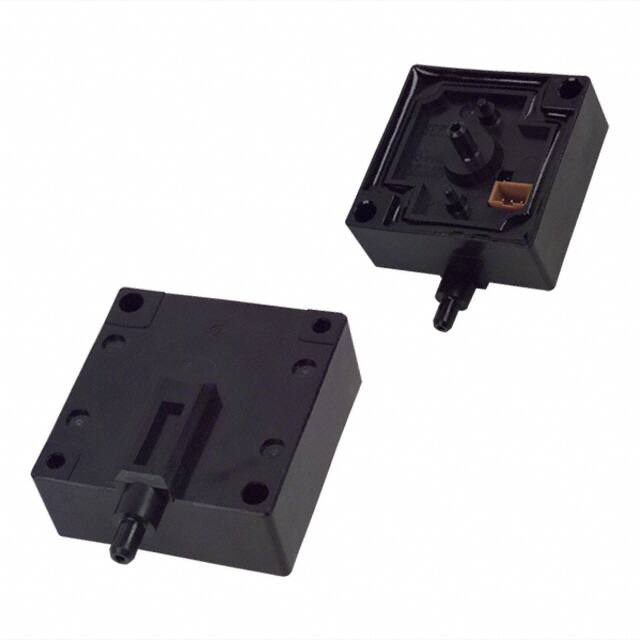

D8M-D1SENSOR 0.85PSIG 0.13" |
0 |
|
Datasheet |
- | 3-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.85PSI (5.88kPa) | PWM | - | ±2% | 2.2V ~ 3.4V | Male - 0.13" (3.3mm) Tube | Barbless | - | Cable | 8.53PSI (58.8kPa) | -30°C ~ 70°C | - | - | Through Hole | - |
|
HSCSNBN015PAAA5SENSOR 15PSIA 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

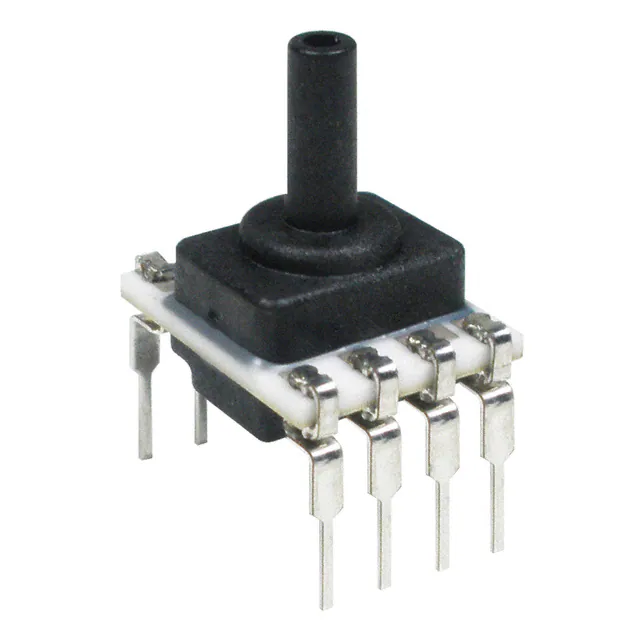

SSCDLNN010MD2A3SENSOR 0.15PSID 0.1" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.1" (2.47mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSAAN001NDAA5SENSOR 0.04PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
