Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19A-300AVSENSOR 300PSIA 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 10V | - | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|

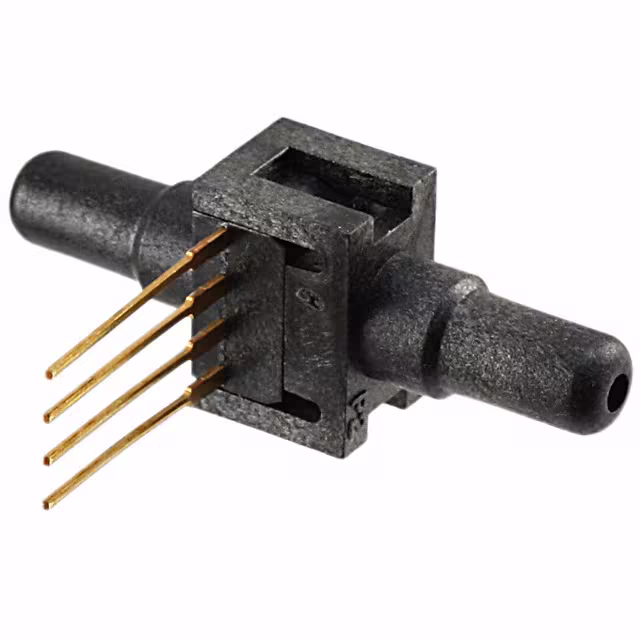

24PCGFA6DSENSOR 250PSID 0.2" .212V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
78628-00000010-01SWITCH 1PSI SPST-NO 1/8"NPT |
0 |
|
Datasheet |
5000 | - | Bulk | Obsolete | Board Mount | Switch | 1PSI (6.89kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
4 INCH-GF-HGRADE-MINISENSOR 0.15PSIG 0.18" .025V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4 INCH-D-HGRADE-MINISENSOR 0.15PSID 0.18" .025V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
PD790-12M20~2MPA, ISOLATED CONSTRUCTION, 3 |
0 |
|
- |
PD790 | Cylinder | Bag | Active | Industrial Automation | Differential | 290.08PSI (2000kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | Cable | 435.11PSI (3000kPa) | -40°C ~ 125°C | - | - | Panel Mount | - |
|
HSCMRRD006MDSA3SENSOR 0.09PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.09PSI (±0.6kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRD2.5MDSA3SENSOR 0.04PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | SPI | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
85773-00000040-20PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
87075-00000040-21PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
79700-00000700-05PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
85-030A-0USENSOR 30PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
83435-00000500-14PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
76584-00000100-01PRESSURE SWITCHES-PRESSURE SWITC |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
85-015G-0USENSOR 15PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|

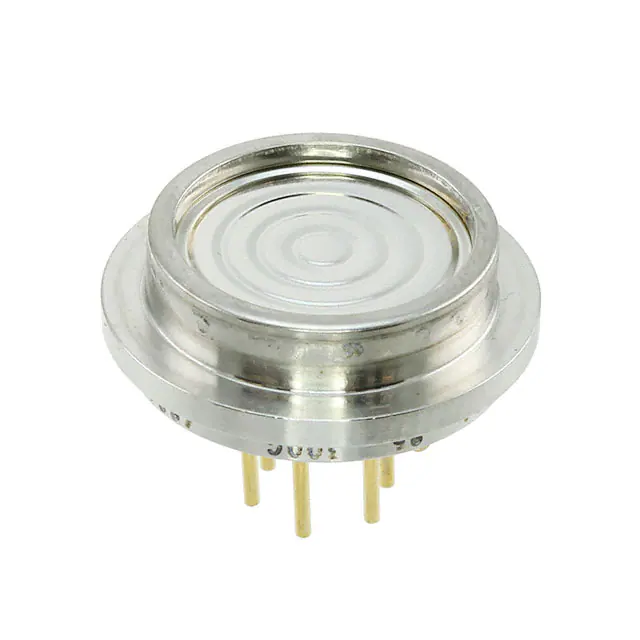

85-300G-0USENSOR 300PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PD790-13M20~3.5MPA, ISOLATED CONSTRUCTION, |
0 |
|
- |
PD790 | Cylinder | Bag | Active | Industrial Automation | Differential | 507.63PSI (3500kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | Cable | 761.45PSI (5250kPa) | -40°C ~ 125°C | - | - | Panel Mount | - |
|
|
PD790-09M20~700KPA, ISOLATED CONSTRUCTION, |
0 |
|
- |
PD790 | Cylinder | Bag | Active | Industrial Automation | Differential | 101.53PSI (700kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | Cable | 152.29PSI (1050kPa) | -40°C ~ 125°C | - | - | Panel Mount | - |
|
|
PD790-03M20~100KPA, ISOLATED CONSTRUCTION, |
0 |
|
- |
PD790 | Cylinder | Bag | Active | Industrial Automation | Differential | 14.5PSI (100kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | Cable | 21.76PSI (150kPa) | -40°C ~ 125°C | - | - | Panel Mount | - |
|
12A-010GSENSOR 10PSIG 0.19" 0.1V TO8 |
0 |
|
Datasheet |
TO-8 | TO-233AA, TO-8-3 Metal Can | - | Obsolete | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
