Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCSSND060PG4A3TRUSTABILITY PRESSURE SENSOR |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Gauge | 60PSI (413.69kPa) | I2C | - | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pins | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSHNN100PGAA5TRUSTABILITY |
0 |
|
- |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.83mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCDANN001PD3A3SENSOR 1PSID 0.19" 14BIT 8DIP |
0 |
|
- |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 14 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

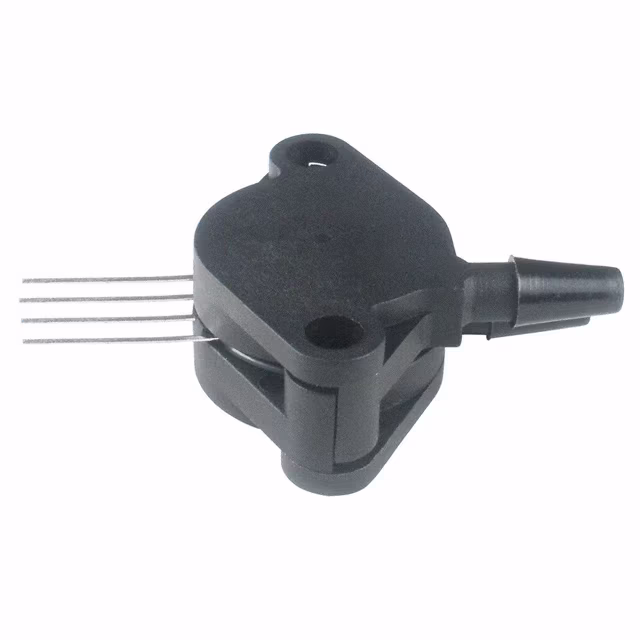

HSCSHHN004BGAA5SENSOR 58.02PSIG 0.16" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 58.02PSI (400kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSHHN015PDAA5SENSOR 15PSID 0.16" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
23A-005GSENSOR PRES 5PSIG 0-100MV TO-8 |
0 |
|
Datasheet |
- | TO-233AA, TO-8-3 Metal Can | Bulk | Active | - | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | Male - 1/8" (3.18mm) Tube | Threaded | Temperature Compensated | PCB | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NPA-600B-001GSENSOR 1PSIG 0.12" 14BIT |
0 |
|
Datasheet |
NPA-600 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | ZACwire™ | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-600B-001DSENSOR 1PSID 0.12" 14BIT |
0 |
|
Datasheet |
NPA-600 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | ZACwire™ | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
XPXL10DTSENSOR 0.36PSID 0.19" .0785V |
0 |
|
Datasheet |
XPXL | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 78.5 mV (5V) | ±1% | 3V ~ 12V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | - | - | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCMRRD005NDSA5SENSOR 0.18PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.18PSI (±1.25kPa) | SPI | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
NSCSLNN2.5MDUNVSENSOR 0.04PSID 0.1" 4SIP |
0 |
|
- |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | - | ±0.15% | 2.7V ~ 6.5V | Male - 0.1" (2.47mm) Tube | Barbless | - | PC Pin | 9.79PSI (67.5kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
32346974-001-015000 PRESSURE SWITCH |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XPC15DTHSENSOR 15PSID 0.19" .09V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
TBFLPNS100KGUCVTBF 100 KPA SENSOR WITH NEW GEL |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASDXRRX005PD2A5SENSOR 5PSID 0.09" 12BIT |
0 |
|
- |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
LER00100TBMNKAAA15SENSOR 10PSIG SPST-NC 1/8"NPT |
0 |
|
Datasheet |
LE | Cylinder, Threaded | Bulk | Active | - | Gauge | 10PSI (68.95kPa) | SPST-NC | - | - | 28V | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
SSCSANT100PGAB3SENSOR 100PSIG 0.19" 3.135V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.165 V ~ 3.135 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDLNT030PAAA5SENSOR 30PSIA 0.1" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
XPX30DTSENSOR 30PSID 0.19" .253V |
0 |
|
Datasheet |
XPX | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 253 mV (5V) | ±1% | 3V ~ 12V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | - | - | 90PSI (620.53kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPX15DTSENSOR 15PSID 0.19" .2625V |
0 |
|
Datasheet |
XPX | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 262.5 mV (5V) | ±1% | 3V ~ 12V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | - | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
