Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4820EUP+IC PWR DRIVER N-CHAN 1:8 20TSSOP |
794 |
|
Datasheet |
20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
L6376D013TRIC PWR DRIVER N-CHAN 1:1 PWRSO20 |
746 |
|
Datasheet |
20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 9.5V ~ 35V | Not Required | 500mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
MAX4823ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
1,936 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | Not Required | 70mA | 2.7Ohm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
MAX4822ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
11,268 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | Not Required | 70mA | 2.7Ohm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
MAX4823ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
5,008 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | Not Required | 70mA | 2.7Ohm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|
ISO1H816GAUMA1IC PWR DRIVER N-CHAN 1:8 DSO-36 |
627 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | ISOFACE™ | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | High Side | N-Channel | SPI | 11V ~ 35V | 3V ~ 5.5V | 1.2A | 150mOhm | - | Auto Restart, Galvanic Isolation, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PG-DSO-36 |
|
|
ISO1H815GAUMA1IC PWR DRIVER N-CHAN 1:1 DSO-36 |
1,722 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | ISOFACE™ | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:1 | High Side | N-Channel | Parallel | 11V ~ 35V | 3V ~ 5.5V | 1.2A | 150mOhm | - | Auto Restart, Galvanic Isolation, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PG-DSO-36 |
|
MAX13253ATB+TIC PWR DRIVER N-CHAN 1:2 10TDFN |
6,003 |
|
Datasheet |
10-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 1A | 145mOhm | - | Watchdog Timer | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-TDFN (3x3) |
|
MCZ33996EKR2IC PWR SWITCH N-CH 1:16 32SOIC |
5,335 |
|
Datasheet |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 3.1V ~ 5.5V | 900mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC-EP |
|
|
MCZ33996EKIC PWR SWITCH N-CH 1:16 32SOIC |
2,556 |
|
Datasheet |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Active | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 3.1V ~ 5.5V | 900mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC-EP |
|
|
ISO1H812GAUMA1IC PWR DRIVER N-CHAN 1:8 DSO-36 |
1,243 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | ISOFACE™ | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | High Side | N-Channel | SPI | 11V ~ 35V | 3V ~ 5.5V | 625mA | 150mOhm | - | Auto Restart, Galvanic Isolation, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PG-DSO-36 |
|

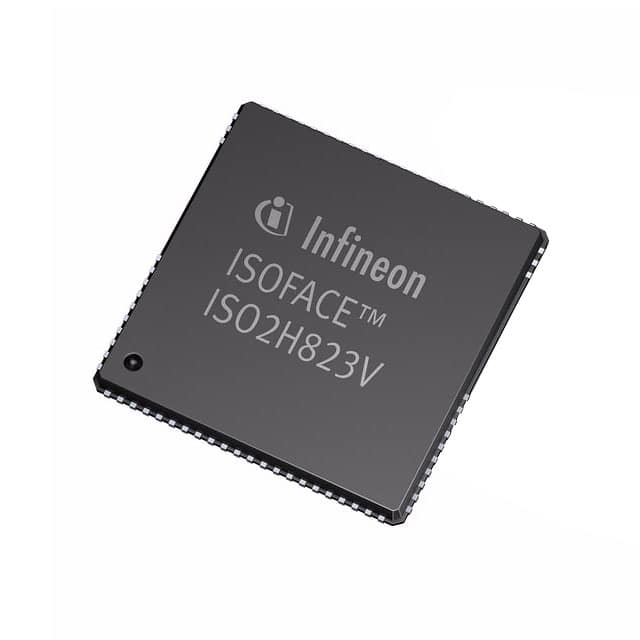

ISO2H823V25XUMA1IC PWR SWITCH P-CHAN 1:8 70VQFN |
1,407 |
|
Datasheet |
70-VFQFN Exposed Pad | ISOFACE™ | Tape & Reel (TR) | Active | General Purpose | 8 | 1:8 | High Side | P-Channel | SPI, Parallel | 11V ~ 35V | 2.75V ~ 3.6V | - | 210mOhm | - | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-VQFN-70-2 |
|
MAX258ATA+TIC PWR DRIVER N-CHAN 1:2 8TDFN |
260 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 500mA | 145mOhm | - | Slew Rate Controlled | Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TDFN (2x3) |
|
|
MAX4896ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
3,351 |
|
Datasheet |
20-WQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (5x5) |
|
|
MAX4896ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
900 |
|
Datasheet |
20-WQFN Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (5x5) |
|
|
MAX4896ATP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
3,854 |
|
Datasheet |
20-WQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-TQFN (5x5) |
|
MAX14917AFM+INDUSTRIAL OCTAL HIGH SIDE DRIVE |
768 |
|
Datasheet |
48-VFQFN Exposed Pad | - | Tray | Active | General Purpose | 8 | 1:1 | High Side | - | SPI | 10V ~ 36V | Not Required | - | 120mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 48-FCQFN (6x6) |
|
|
MAX4896ATP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
2,810 |
|
Datasheet |
20-WQFN Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-TQFN (5x5) |
|
MAX14913AKN+IC PWR DRIVER 1:8 56QFN |
2,185 |
|
Datasheet |
56-VFQFN Exposed Pad | - | Tray | Active | General Purpose | 8 | 1:8 | High Side | - | SPI, Parallel | 10.5V ~ 36V | 1.6V ~ 5.5V | - | 110mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 56-QFN (8x8) |
|
MAX14900EAGM+CKTIC PWR SWITCH 1:1 48QFN |
4,787 |
|
Datasheet |
48-VFQFN Exposed Pad | - | Tray | Active | General Purpose | 8 | 1:1 | High Side | - | SPI, Parallel | 10V ~ 36V | 4.5V ~ 5.5V | 850mA | 85mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 48-QFN (7x7) |
